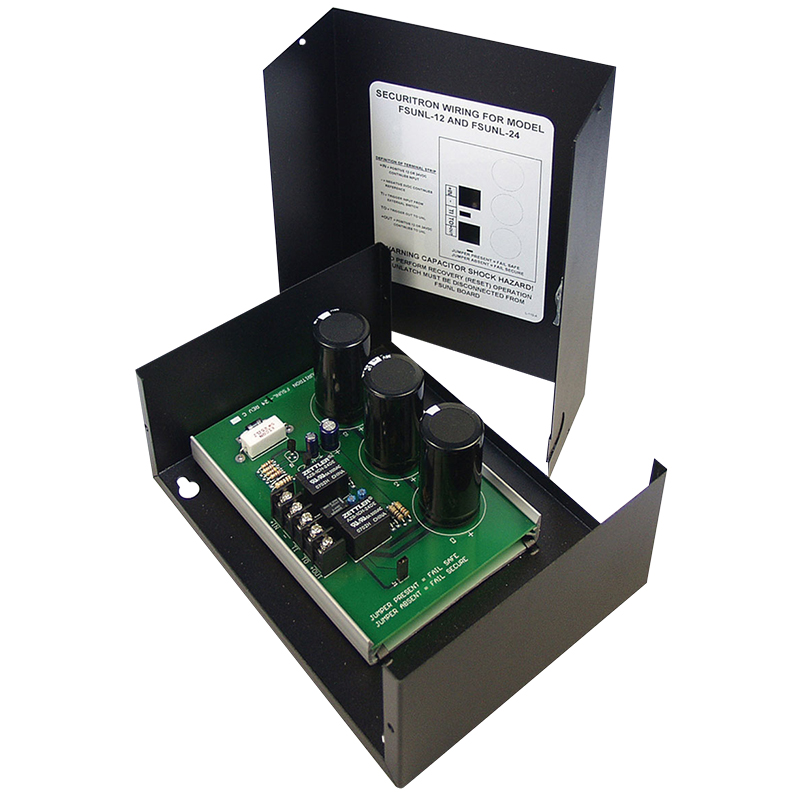

HES FSUNL-24 24VDC Fail-Safe Module

HES FSUNL-24 24VDC Fail Safe Module offers a robust and reliable solution for securing entry points in commercial settings. Designed for versatility, this universal electromechanical strike is compatible with most North American cylindrical locksets, whether they incorporate deadlatches or not. The innovative design supports full deadlatch functionality and features latch status monitoring, ensuring enhanced security and ease of use. Built to withstand demanding conditions, the FSUNL-24 delivers Grade 1 holding power and is UL listed, with a fire rating of up to three hours. Its satin stainless steel finish not only adds a touch of sophistication but also promises durability in both aesthetics and performance. Installation is straightforward, requiring no cutting or modification of the jamb, and it fits standard ANSI 4-7/8" strike cutouts. Operating efficiently at 24 VDC, this fail-safe module is recommended to be paired with a higher capacity supply (1-3As) for optimal performance under pre-load conditions. With an operational temperature range of -20 to +125°F, the FSUNL-24 is well-suited for various environments. Elevate your security measures with this dependable fail-safe module from HES.

24VDC Fail Safe Module

UNL Fail Safe Module, 24VDC, Satin Stainless Steel

The universal electromechanical UNL strike works with most North American cylindrical locksets, with or without deadlatches. The UNL supports full deadlatch function, releases under pressure and includes latch status monitoring. Strong enough to withstand windstorm conditions, the UNL provides Grade 1 holding power and is UL listed and fire-rated. No cutting or altering of the jamb required. Fits standard ANSI 4-7/8" strike cutout. Motor driven action. Higher capacity supply (1-3As) is recommended for startup inrush to achieve best operation under pre-load. Operating Temperature -20 to +125F [-29 to +52C].

Specialty magnetic locks provide access control on unique applications including sliding doors, gates and cabinets.

Securitron M32-SS

• 300lbs holding force per strike (600lbs total); Split Strike

Securitron M34R Recessed Magnalock

• 500lbs holding force; Sliding doors

Securitron M62FG-SASM

• 1200lbs holding force; Gate applications

Securitron MCL

• 170lbs holding force; Cabinet applications

Securitron MM15 MEMLOCK

• 4000 lbs. holding force: indoor use

Securitron GL1 Gate Lock

• 2000lbs holding force; Gate applications

Resources

• 2023 Securitron Price Book (effective 4.17.2023)
• M32 Magnalock Environment Product Declaration (EPD)
• M62 Magnalock - Environmental Product Declaration (EPD)
• Securitron Specialty Magnalocks Cut Sheet
