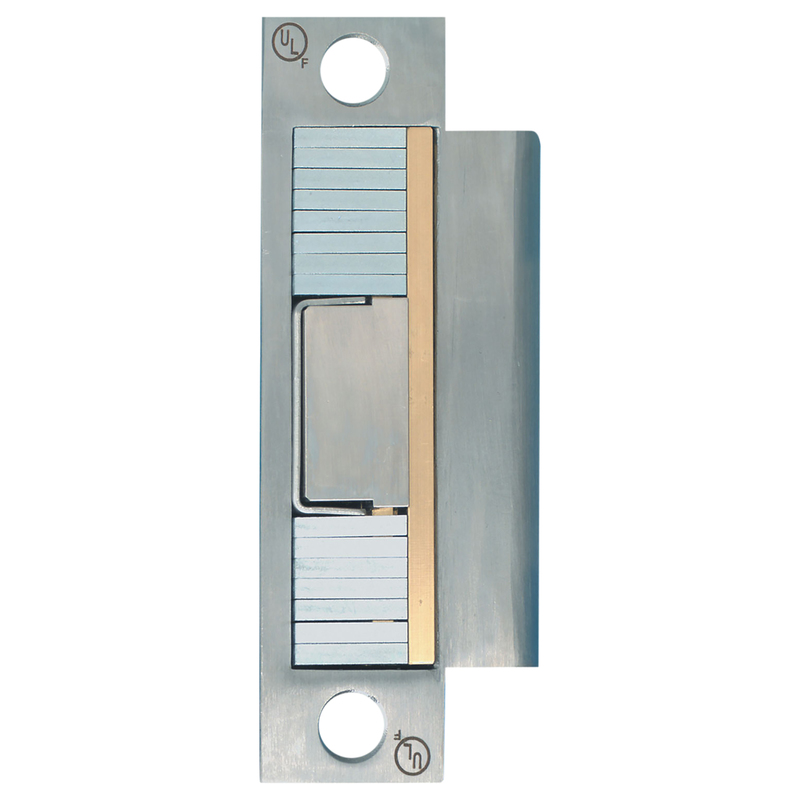

Designed for easy installation, the Securitron MUNL is capable of releasing under preload conditions and accommodates latchbolts up to 3/4" [19mm] throw. Strong enough to withstand windstorm conditions, the Securitron MUNL is the UL listed, fire rated electric strike that includes lock monitoring standard, provides ANSI/BHMA Grade 1 holding power and includes field adjustability for latch and deadlatch positions.
Attributes
Adjustability: Vertical
Ansi: A156.31, E09321, E09322, E09323.
Baa Qualified: Yes
Base Material: Stainless Steel
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Fail Safe | Fail Secure: Fail Secure
Finish: 626 Satin chromium plated over nickel
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Frame Material: Metal
Grade: Grade 1
Installation: Commercial
Latchbolt Accommodation: Up to 3/4"
Limited Warranty: Lifetime
Lock Type: Mortise Lock
Monitoring Installation: Field Installable
Monitoring Options: Lock Monitor included
Operating Voltage: 12 VDC
Origin: USA
Pack Qty: 1
Product Height: 1.75"
Product Length: 4.75"
Product Width: 1.88"
Restrictions: None
Series: Securitron Specialty Magnalocks
Ship Weight: 2 lbs.
Static Strength (lbs): 1500
Strike Body Depth (in): 1.88
Strike Body Height (in): 4.88
Strike Body Width (in): 1.25
Subtype: Electric Strikes
Surface Mounting: No cutting required
Tamper Resistant: No
Type: Electric Strikes, Bolts, Magnets
Ul Listing: 10C, A250.13
Unit of Measure: Each
Upc: 7.84607E+11
Voltage: 12|24
Warranty: SecuriCare five-year, no fault, no questions asked warranty
