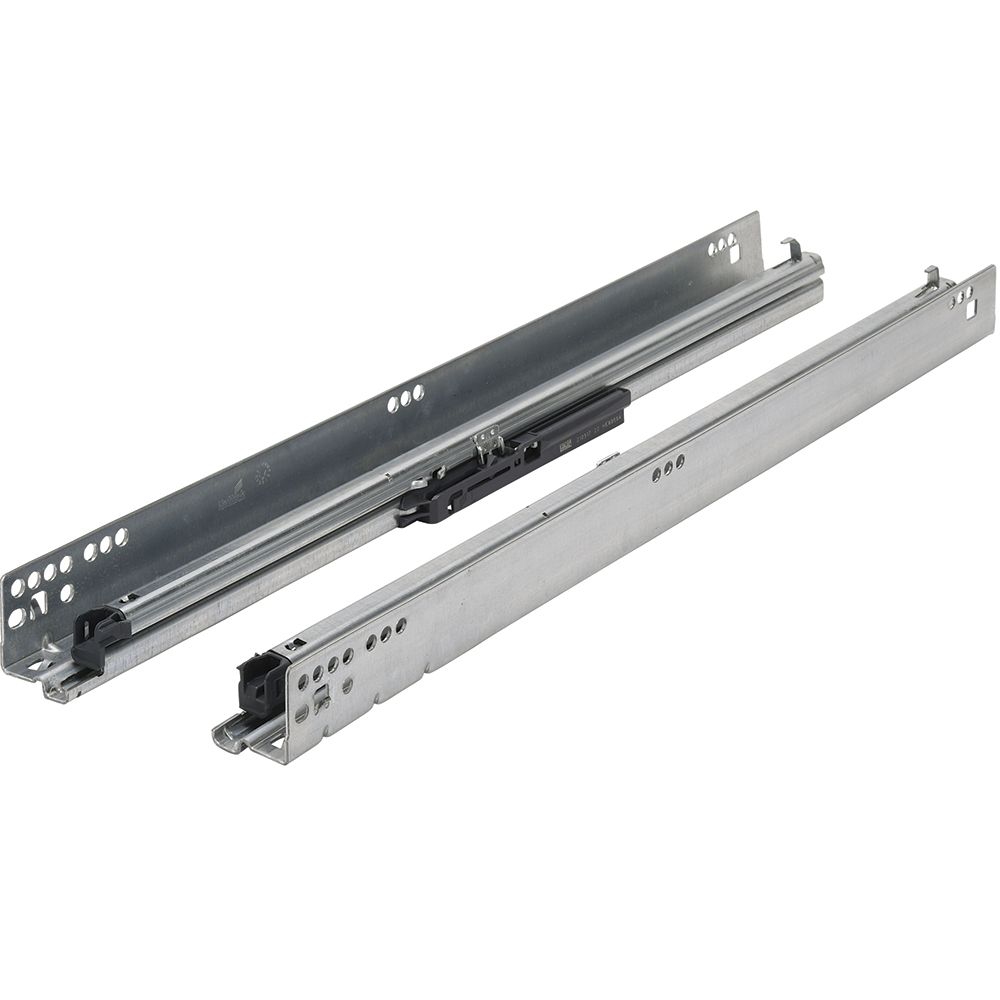

Hettich 9304280K 21n Quad Silent System 1/2-5/8 Mat Left/Right

HETTICH 9304280K 21n Quad SilentSys1/2-5/8 Mat LH/RH is a premier undermount drawer slide designed for both frame and frameless constructions. With a height of 1-7⁄8" that includes an integrated dampener, this system ensures smooth operation and enhances the overall user experience. Capable of supporting dynamic loads up to 90 lbs and static loads of 100 lbs, it is a robust choice for various cabinetry needs. Featuring full extension travel, the Hettich Quadro V6 provides easy access to all contents of the drawer, while the integrated hydraulic damping device ensures that drawers close softly and quietly every time. For added convenience, the system allows for easy drawer removal using front fixing clips and boasts a self-cleaning mechanism that keeps the tracks free from debris as steel balls sweep dirt aside during use. Constructed from galvanized steel, this slide is well-suited for environments exposed to moisture, making it an excellent choice for kitchens and bathrooms. It meets ANSI/BHMA grade one requirements, ensuring a high standard of quality and durability. With a maximum drawer height of the cabinet opening height minus 1" (26mm), this Hettich drawer slide combines functionality with reliability, making it an ideal addition to any project.

Hettich Quadro V6 2D 21in Silent System

• Undermount, for frame or frameless construction
• Integrated hydraulic damping device closes the drawer softly and quietly
• Maximum drawer height = cabinet opening height minus 1"(26mm)
• Travel: Full Extension
• Load Rating: 90 lbs dynamic, 100 lbs static
• Height: 1-7⁄8" (includes dampener)
• For 1⁄2" to 5⁄8" drawer material
• Easy drawer removal with front fixing clips
• The system is self-cleaning. Any dirt is simply swept aside by the steel balls as they traverse along the track
• Meets ANSI/BHMA grade one requirements
• Galvanized steel, suitable for rooms exposed to moisture
