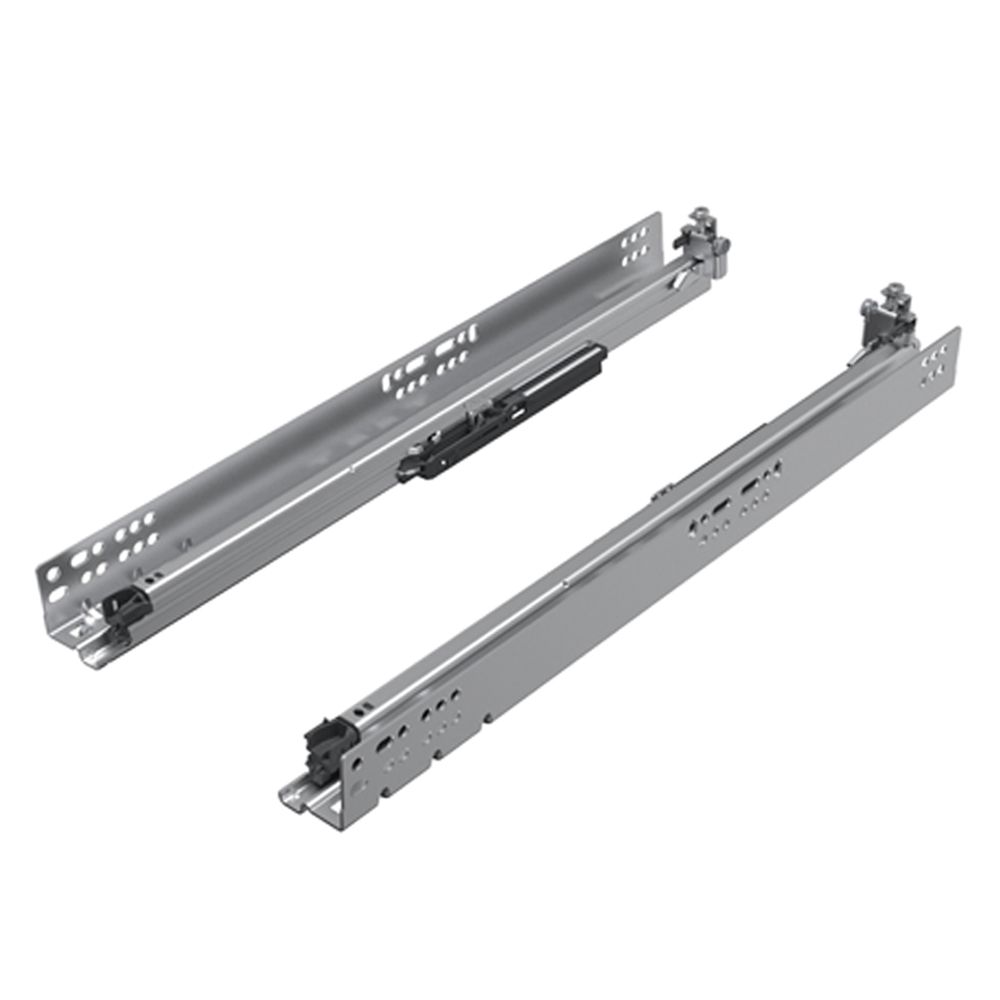

HETTICH 9374867K 15in Quadro 5Dw/Silent System LH/RH is designed to elevate the functionality and aesthetic of your cabinetry. This innovative sliding system showcases a sleek, modern design that seamlessly integrates into various interior styles, making it perfect for both residential and commercial applications. The 15-inch Quadro system is engineered for smooth, silent operation, ensuring that your drawers glide effortlessly with minimal noise-a crucial feature for maintaining a serene environment. The Silent System is especially beneficial in spaces where tranquility is paramount, such as bedrooms or entertainment areas. This model accommodates both left-hand and right-hand configurations, providing versatility to fit your specific installation needs. Durability is a hallmark of Hettich products, and this sliding system is no exception, built to withstand the rigors of daily use while maintaining its elegant appearance. Ideal for cabinet makers and DIY enthusiasts alike, the HETTICH 9374867K is a reliable choice for achieving a polished finish in any project. Plus, with the convenience of UPS shipping, you can have this efficient solution delivered right to your door, ready to enhance your furniture designs.

15in Quadro 5D w/ Silent System LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static
• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.
• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
