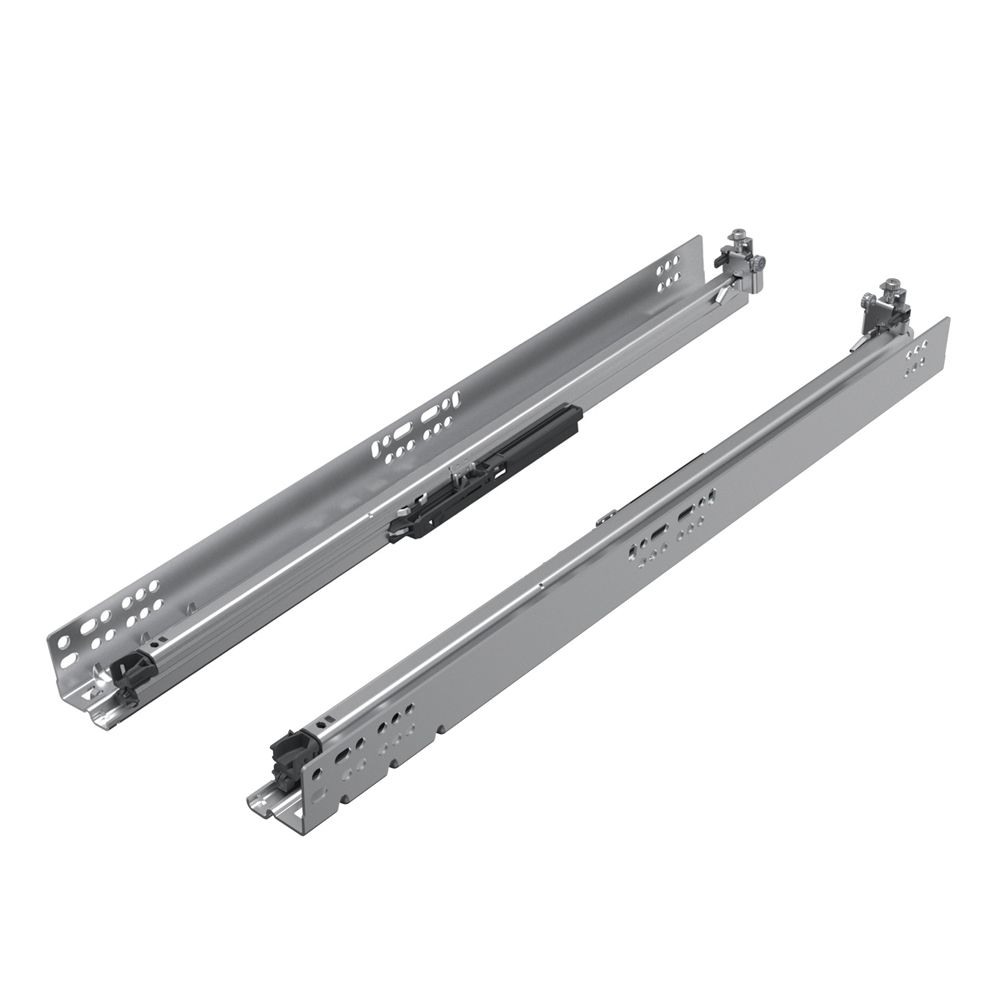

Hettich 9374903K 24" Quadro Silent System 5Dw LH/RH

HETTICH 9374903K 24in Quadro 5Dw/Silent System LH/RH is designed for those who prioritize both functionality and elegance in their cabinetry. Engineered with precision, this sliding system offers a seamless operation, making it an ideal choice for professional builders and discerning homeowners alike. The Quadro system delivers exceptional stability and smooth gliding, ensuring that cabinet doors open and close effortlessly. Its innovative Silent System feature enhances user experience by minimizing noise, providing a tranquil environment in any space. This model is versatile, accommodating both left-hand and right-hand applications, making it a flexible solution for various installation needs. Crafted for durability, the HETTICH 9374903K showcases robust construction that stands the test of time, ensuring your cabinets maintain their aesthetic and functional integrity for years to come. Measuring 24 inches, it is suitable for a wide range of cabinet sizes and styles, enhancing your furniture's overall appeal. Additionally, this product can ship via UPS, allowing for convenient delivery to your project site. Upgrade your cabinetry with the HETTICH 9374903K and experience the perfect blend of style, functionality, and innovative design that meets the demands of today's building professionals.

24in Quadro 5D w/ Silent System LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static
• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.
• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
