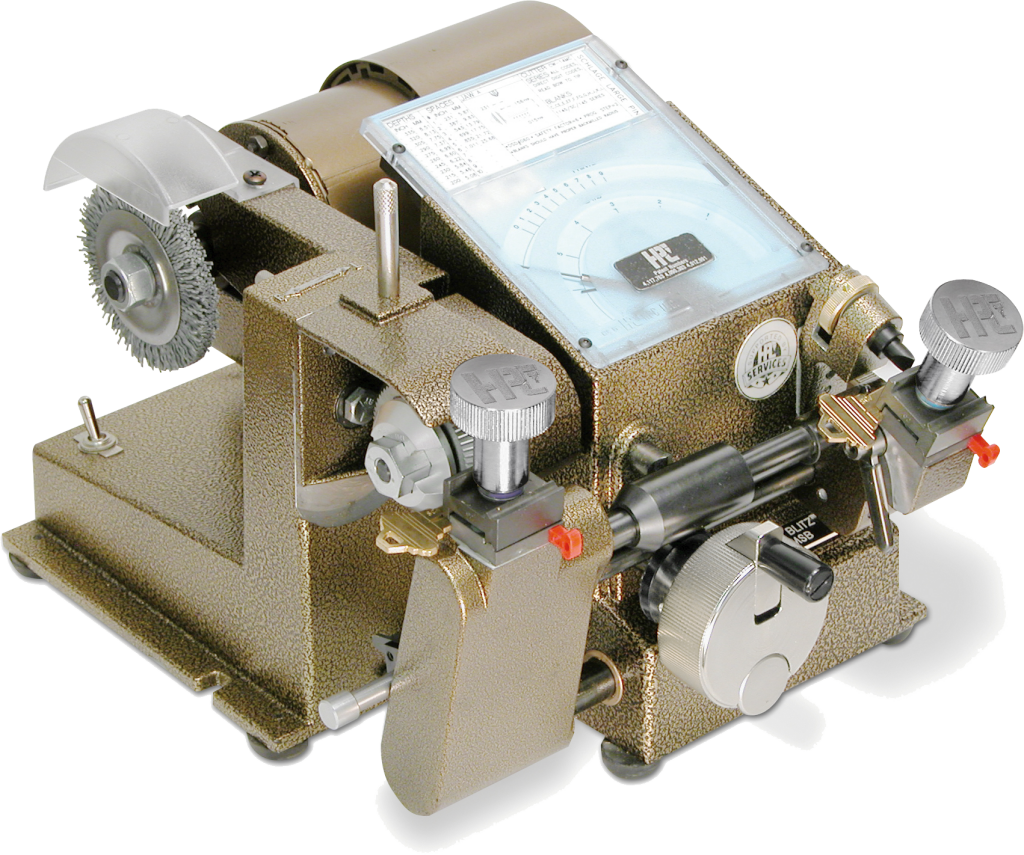

HPC 1233CMSBACDC Switch Blitz 2 in 1 Code-Duplicator

HPC Inc 1233CMSBACDC Switch Blitz 2 in 1 Code-Duplicator seamlessly integrates the functionality of the Original Blitz code machine with a robust semi-automatic duplicator, all within a compact footprint. This versatile machine allows you to shift effortlessly between code cutting and duplicating without the need for tools or adjustments, making it ideal for professionals with limited workspace or those just starting in key duplication. One of the standout features of the Switch Blitz is its exceptionally wide jaw distance, enabling it to duplicate extra-long automotive keys with integral remotes-something few machines can do. Additionally, it is equipped to code cut high-security Medeco angle cuts, thanks to its pivoting cutter. With a powerful 120VAC motor (1/6 hp, 3.5 amps), this machine weighs 39 lbs and measures 12"W x 14"D x 9"H, making it a sturdy yet manageable addition to your toolset. The Switch Blitz comes with an extensive set of 150 code cards, including options for the latest vehicle models, ensuring you're well-equipped for a variety of tasks. Included accessories enhance usability and convenience, including three tool steel cutters, a Quick Nut, and a Softie™ Deburring Brush. For locksmiths and automotive professionals, the HPC Inc Switch Blitz is a reliable and efficient solution for all your key duplication needs.

Switch Blitz 2 in 1 Code-Duplicator

The Switch Blitz™ combines the best of both worlds: the Original Blitz™ code machine combined with a heavy-duty semi-automatic duplicator. Now in the bench space of 1 machine you have 2 top-quality key machines. No tools are needed and no adjustments are required for the machine to switch from code cutting to duplicating and back again. The Switch Blitz™ is equipped with the latest features and is supplied with an expansive deck of 150 code cards, including many cards for the latest cars. If you need a machine for your van or only have space for one machine or you are ready to buy your first key machine, the Switch Blitz™ is your answer.

• The exceptionally wide distance between the jaws makes the Switch Blitz™ the only machine able to duplicate the extra long automotive keys with integral remotes.
• Code cut high-security Medeco angle cuts with the pivoting cutter on the Switch Blitz™

Technical Information:

• Model No. 1233CMSB
• Motor: 120VAC (1/6 hp, 3.5 amps)
• Weight: 39lbs / 15.4kg
• Machine Size: 12"W x 14"D x 9"H (30.5W x 35.5D x 23H cm)
• Bench Size: 20"W x 14"D (51W x 35.5D cm)

Optional Models:

• Model No. 1233CMSB240V
• Motor: 240 VAC/ 50hz
• Weight: 39lbs / 15.4kg
• Model No. 1233CMSBACDC
• Motor: 120VAC/12VDC (1/6 hp, 4 amps AC,12 amps DC)
• Weight: 48lbs / 19.5kg

Cutters Supplied:

• No. CW-14MC Tool Steel, 100° large cylinder (installed)
• No. CW-1011 Tool Steel, 90° small cylinder
• No. CW-6010 Tool Steel Duplicating Cutter

Accessories Included:

• No. QN-100B Quick Nut (installed)
• No. EFLIP-1200 Easy Flip Handle (installed)
• No. TYX-3 Softie™ Deburring Brush (installed)
• No. DECK-150 142 Code Cards and 8 Micrometer Cards
• No. CARD-SB Binder (for 150 cards) with Manual
• No. CM-1054R Horseshoe Tip Stops (2)
• No. CM-1054MA Red Tip Stops (2)
• No. KBPS-1 Brass Plated Key Shim
• No. WRENCH-1 Cutter Adj. Wrench
• No. WRENCH-2 Space Adj. Wrench
• No. WRENCH-3 Cutter Nut Wrench

Optional Accessories:

• No. CS-CD - CodeSource® Software
• No. ASJ-1200 - Automotive Super Jaw Kit
• No. MJ-1 - Medeco® Jaw
• No. MJ-3 - Medeco® Freedom Jaw
• No. MKYM-Kit - Medeco® KeyMark® Kit
• No. SPJ-1 - Schlage Primus®/Quad Jaw
• No. CARD-BP - Card Panel (40 capacity)
• No. HT-125/No. RT-SD - Tip Stops / Safe Dep. Box Keys
• No. HT-125/No. HT-625 - Tip Stops / L&F Safe Dep. Box Keys
• No. SPR-5 - Spacer for Safe Dep. Box Keys
• No. HKD-75 - Key Decoder
• No. CMB-CK - Calibration Kit
• No. TKA-SWITCH - Tubular Key Adapter Kit

Optional Cutters:

• No. CW-47MC - Tool Steel 87° Automotive
• No. CW-32MC - Tool Steel,90° ASSA
• No. CW-105 - Tool Steel, 105° Double Angle
• No. CW-1013 - Tool Steel, 90° Emhart
• No. CW-1014 - Tool Steel, 100° Kwikset
• No. CW-90MC - Tool Steel, 90° Lg. Cylinder
• No. CW-1012 - Tool Steel, 86° Medeco®
• No. CW-20FM - Tool Steel, 76° Sargent

Features

• The exceptionally wide distance between the jaws makes the Switch Blitz™ the only machine able to duplicate the extra long automotive keys with integral remotes.
• Code cut high-security Medeco angle cuts with the pivoting cutter on the Switch Blitz™

Resources

• Cut Sheet
