IEI 620-100451 Emerge 2 in 1 Prox Reader

IEI 620-100451 Emerge 2 in 1 Prox Reader offers a versatile solution for access control with its unique dual mounting capability. Designed to meet the demands of both mullion and single-gang installations, this proximity reader eliminates the need for additional hardware, making it easy to set up right out of the box. Whether you choose to mount it on a narrow frame or an electrical box, the Emerge Reader presents a sleek, low-profile appearance. This reader operates on a frequency of 125 kHz and supports 26- to 37-bit Wiegand communication, ensuring compatibility with a variety of access control systems. With a read range of up to 6 inches, it provides efficient access management. The device is built to withstand the elements, featuring an IP67 rating that ensures reliable performance in both indoor and outdoor environments. Weighing just 3 oz. and powered by a voltage range of +5 to +16 VDC, the Emerge Reader is not only lightweight but also energy-efficient with a current draw of 30 mA typical. Its durable construction includes weather and tamper-resistant epoxy potting, guaranteeing longevity. With a limited lifetime warranty and multiple certifications, including ETL and FCC, the IEI 620-100451 is a robust choice for any security professional or informed homeowner.

Emerge 2 in 1 Prox Reader

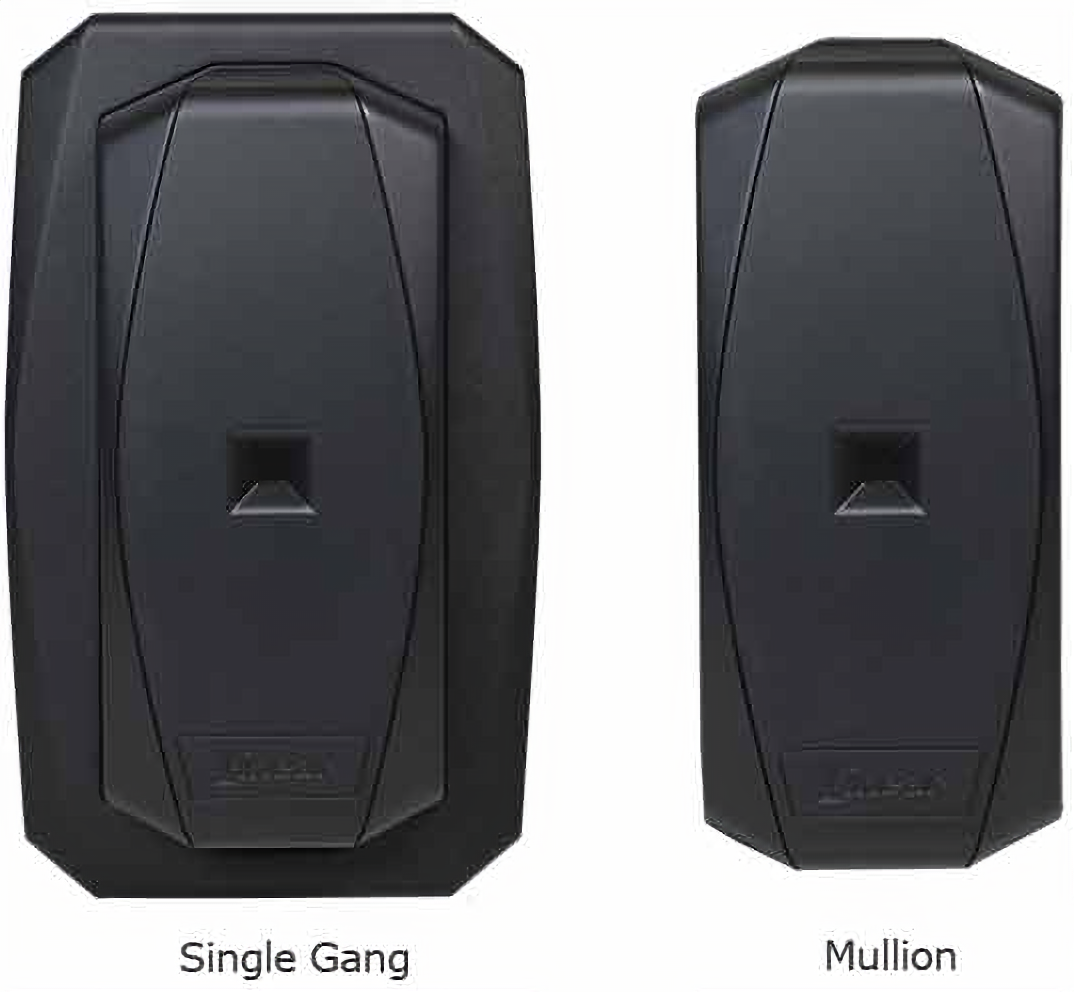

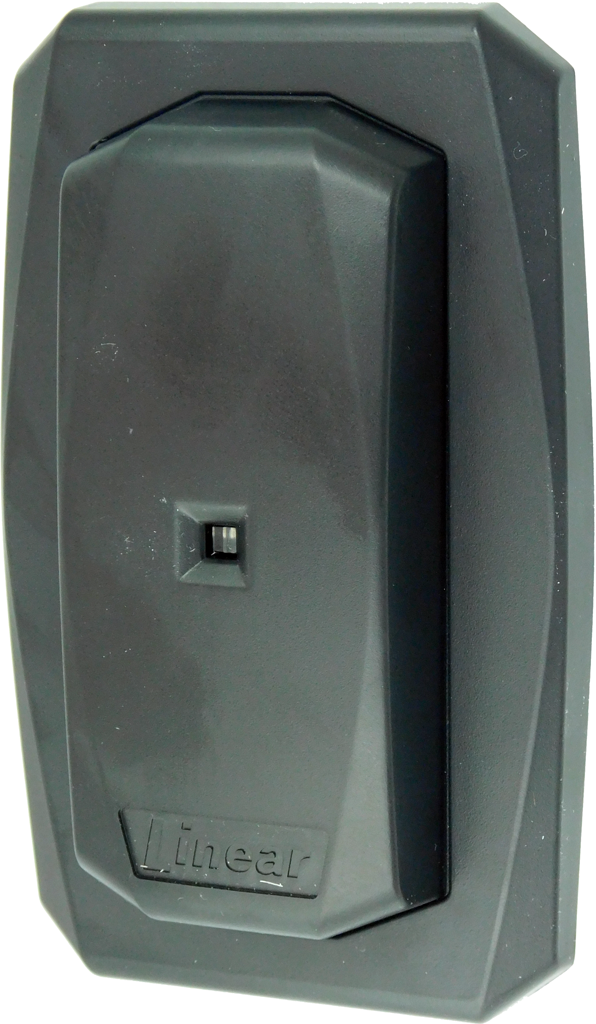

Linear's 2-N-1 reader is a proximity reader designed to fulfill two different mounting requirements – without needing any additional hardware! The 2-N-1 can be installed as either a mullion-mount reader or, when paired with the provided adapter plate, turns the reader into a single-gang electrical box style reader. Customers get a clean, low profile for both mullion and single-gang installations ready to install right out of the box for either configuration. Linear's cards and tags do not contain batteries, requiring no maintenance.

Features:

• Reader Type: Proximity; 26- to 37-bit Wiegand
• Frequency: 125 kHz
• Mounting: Mullion or Single Gang
• Dimensions(H x W x D):
• Single-Gang: 4.77" x 2.96" x 1.33" (121.1 x 75.1 x 33.7 mm)
• Mullion: 3.92" x 1.74" x 0.98" (99.5 x 44.2 x 24.9 mm)
• Weight: 3 oz. (85g)
• IP Code: IP67
• Voltage: +5 to +16 VDC
• Current Draw: 30 mA typical, 75 mA peak @ 12VDC
• Read Range: Up to 6 inches (152 mm)
• Cabling: 24 AWG minimum, multi-conductor stranded with an overall foil shield 500’
• Interface: Wiegand ABA Track II
• Operating Temperature: -40° F to 149° F, (-40° C to +65° C)
• Color: Black
• Audio Tone: Sounder included
• Indoor & Outdoor Installation: Electronics sealed in weather and tamper-resistant epoxy potting
• Warranty: Limited lifetime warranty
• LED: Four-state indicator (red, green, amber, off)
• Certification: ETL listed to UL294, FCC, ICC, CE, C-Tick
