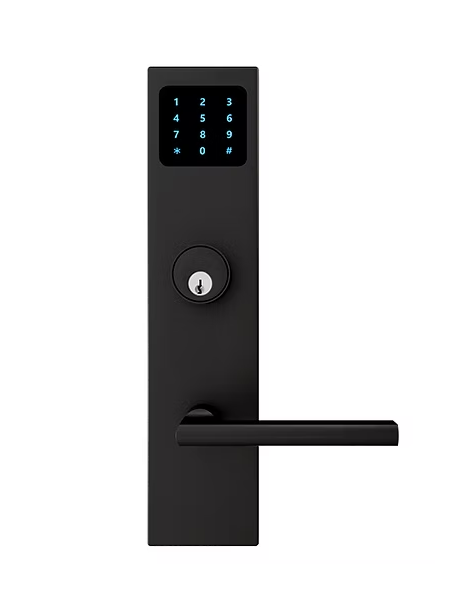

Inox ISED-ESK108EN-32D-RHR Smart Exit Keypad Trim for ED93 Rim/SVR/LBR, 108 Hollow Vienna X, Right Hand

INOX ISED-ESK108EN-32D-RHR Smart Exit Device Keypad Exterior Trim is a cutting-edge security solution designed for commercial, multifamily, and mixed-use properties. This innovative trim enhances access control while preserving the critical emergency egress function of standard exit devices, making it a reliable choice for any building. Key features include support for up to 2000 users, accommodating both RFID and mobile credentials. The trim is compatible with high-frequency RFID 13.56 MHz cards, FOBs, wristbands, and smartphones, allowing for diverse access options. Installation is straightforward, with standard exterior and interior gaskets included, and it can be retrofitted to Sargent models. The device boasts remote locking and unlocking capabilities via a Bluetooth Low Energy (BLE) or Wi-Fi gateway, along with comprehensive audit trails that log up to 100,000 activities. Security is further enhanced with 2-step verification, passcode options (4, 6, or 8 digits), and cloud-based encrypted authentication. Available in a sleek satin stainless steel finish, the INOX ISED-ESK108EN-32D-RHR is not just about security; it’s about smart, convenient access management tailored to modern needs. With its durable construction and advanced features, this keypad trim offers peace of mind and control for property managers and owners alike.

Smart Exit Device Keypad Exterior Trim for ED93 Rim/SVR/LBR, 108 Hollow Vienna X Series, Entrance, Right Hand Reverse, 630/US32D Satin Stainless Steel

Enhances security and convenience by allowing authorized entry while preserving the exit device’s emergency egress function. Designed for commercial, multifamily, and mixed-use properties.

Features:

• INOX Smart trim available in rim, SVR/CVR and mortise to retrofit Sargent models
• Standard exterior and interior gasket included, installation optional
• Compatible door position sensor (DPS) for metal included (wood must be ordered separately)
• User Capacity for Keypad: 2000 users (1000 RFID/1000 mobile)
• Supports multi-credential access with high frequency RFID 13.56 MHz cards, FOBs, wristbands, and smartphones
• Remote locking and unlocking via BLE/Wi-Fi gateway
• Audit trails with 100,000 records shows all lock and unlock activities
• Add, remove, edit, and schedule RFID credentials/user access down to the exact hour/min
• Passcode option on keypad (4, 6, 8 digit passcode length)
• Optional door position sensor (DPS) w/cloud monitoring features available on the app
• Supports three types of keypad passcodes: auto-generated, user-defined, and 24-hour one-time validation codes
• Property and door information management and cloud-based encrypted authentication
• 2-Step verification available for added security
• Over the air (OTA) firmware updates
• Notification on locking abnormalities and battery level
• Global search function with app and web-based solutions
• Filter property user lists by active or inactive status to view permission
• Control multiple locks in the same space, expanding beyond previous single-lock limitation

Specifications:

• Device Functions: For use with standard exit devices, trim available separately
• Device Lengths: 3’: 2’2" to 3’ (660mm to 914mm) 4’: 2’9" to 4’ (838mm to 1219mm)
• Strikes: Dull black rim strike (EDLSR-239)
• Dogging Feature: Hex key dogging available on non-fire rated devices only
• Dogging Options: Cylinder dogging kits available
• Electric Options: Alarm Kit 36" and 48" available
• Fasteners & Sex Bolts: Furnished with wood & machine screws; thru-bolt standard on fire-rated devices.
• Latch Bolt: Stainless steel 3/4" (19mm) throw
• Device Centerline from Finished Floor: 41" (1041mm)
• Center Case Dimensions: 8-3/32" x 2-13/16" x 2-15/32" (206mm x 71mm x 63mm)
• Mechanism Case Dimensions: 2-3/16" x 1-15/6" (55.4mm x 49.1mm)
• Push bar Projections: Neutral: 3-3/4" (95.3mm)/Depressed: 2-15/16" (74.5mm)

Finishes:

• 32D - Satin stainless steel
• 19G - Graphite black
• C19G - CeraMax graphite black
• C19 - CeraMax flat black
• CGY - CeraMax stormy Grey
• CDB - CeraMax dark bronze
• CBB - CeraMax burnt bronze
