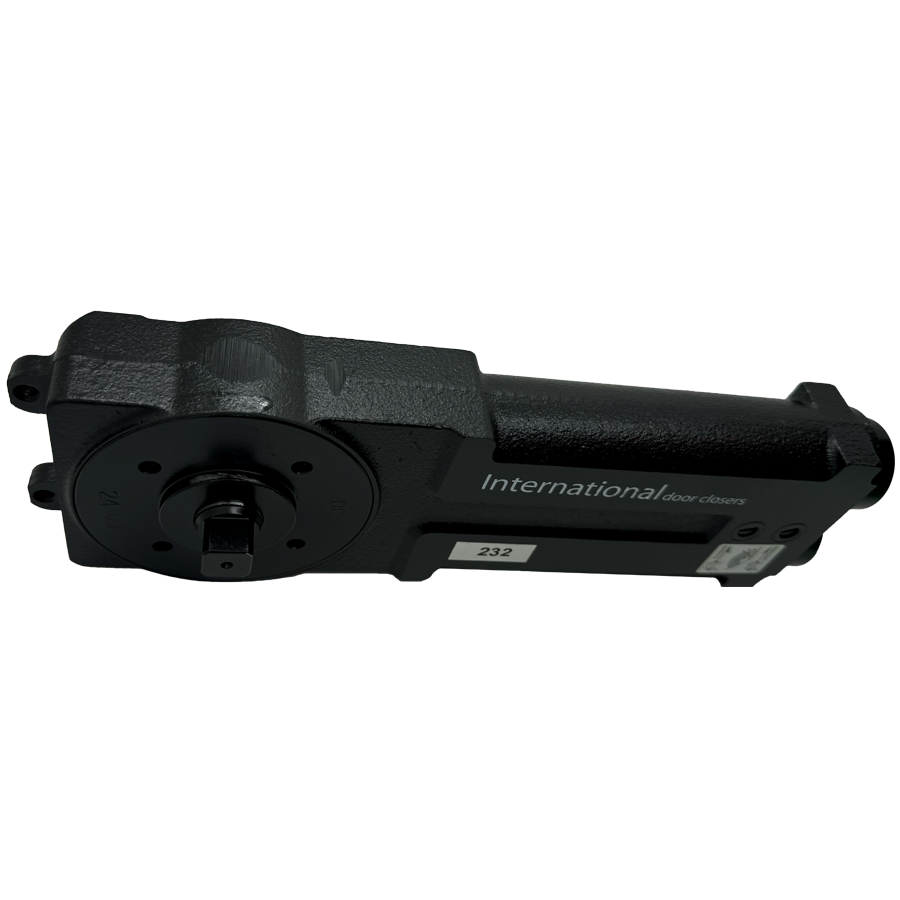

International Door Closers 232-S Medium Spring Tension Overhead Door Closer w/ Hold Open 2 Adjustments

International Door Closers 232-S Overhead Door Closer offers a robust solution for controlling door movement in aluminum applications. This medium spring tension closer features a 90-degree backstop combined with a hold-open function, ensuring reliable operation while maintaining accessibility. Designed for various mounting options, it comes with an adjustable ‘S’ side loading top arm assembly and a dual-purpose bottom pivot set, making it adaptable to both floor and threshold installations. Equipped with two speed control valves, the 232-S allows for precise adjustments of closing and latching speeds post-installation, enhancing user convenience. Its effective positive centering mechanism keeps doors securely closed against drafts and wind, while the stable hydraulic door check fluid ensures smooth operation regardless of climatic conditions. This model supports ADA compliance with an opening force of just 5 lbs for interior doors and 8-1/2 lbs for exterior doors. It fits seamlessly in aluminum headers or transom bars as narrow as 1-3/4" x 4", offering flexibility in design. The 232-S is furnished with a standard top arm and pivot set, though additional configurations can be specified to meet unique project requirements. Choose the International Door Closers 232-S for a dependable solution that combines safety, functionality, and ease of use.

Overhead Door Closer Medium Spring Tension, 90 Degree Back Stop w/ Hold Open and Two Adjustment Valves

Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable ‘S’ side loading, "A" end loading, "K" end loading or "PT" end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners. 3010-G and 3010-GE bottom pivot sets are available, but must be ordered separately.

Features:

• Built-in positive back stop and hold-open positions available:
• 230: 105° Back stop with hold-open
• 231: 105° Back stop - no hold-open
• 232: 90° Back stop with hold-open
• 233: 90° Back stop - no hold-open
• ADA spring tensions available for use on center pivoted applications:
• 5 lb. opening force (interior door)
• 8-1/2 lb. opening force (exterior door)
• Standard spring tensions available: Light, medium & heavy
• Two speed control valves
• Closing and latching speeds controlled by separate regulating valves, fully adjustable after installation.
• Fits in an aluminum header or transom bar as small as 1-3/4" x 4".
• Positive centering for alignment and to hold door closed against any normal wind or draft.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.
• "S" type side loading top arms and 3010-DP adjustable dual purpose pivot set and 3010-FS anchor set will be furnished unless otherwise specified.
• "A" type, "K" type or "PT" type end loading and "JO" or "VO" type offset arms are optional, but must be specified.
• "G" and "GE" type pivot sets are available, but must be ordered separately.
