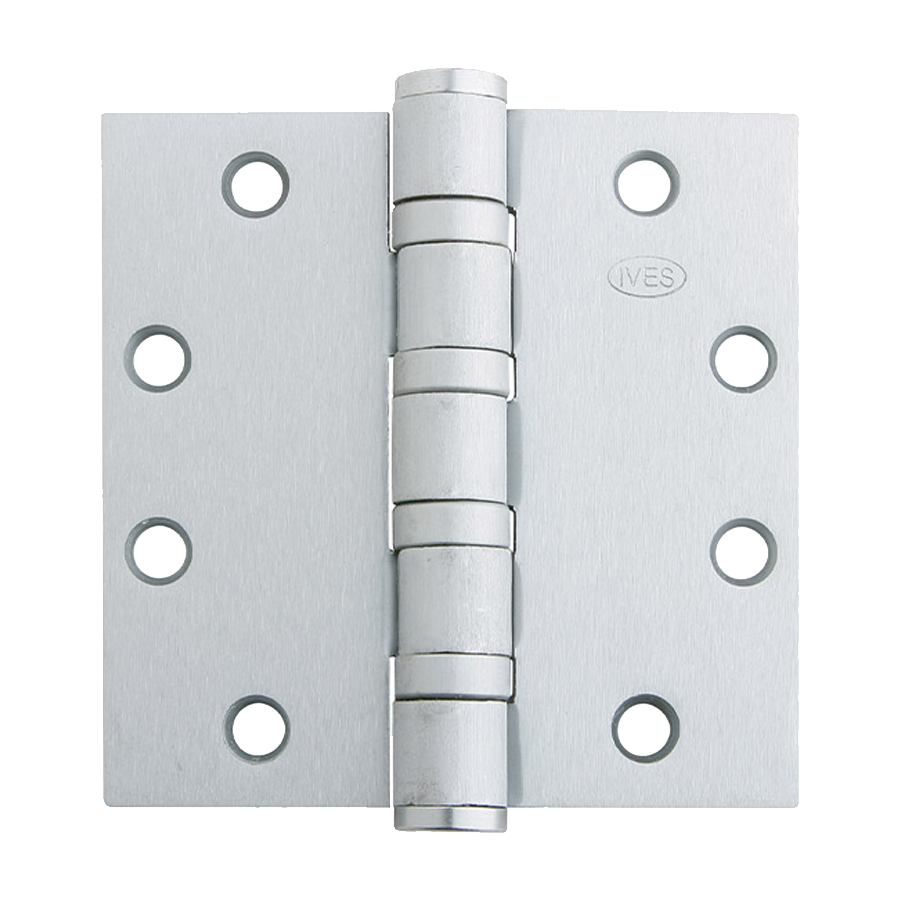

Ives 5BB1HW 4.5X4.0 630 5-Knuckle Heavy Weight Full Mortise Hinge, 4.5x4.0, Satin Stainless Steel

Ives 5BB1HW 4.5X4.0 630 5-Knuckle Hinge is engineered for heavy-duty performance, making it an ideal choice for both residential and commercial applications. With a robust construction designed to support doors weighing up to 150 lbs, this full mortise hinge features five knuckles and four ball bearing assemblies, ensuring smooth operation even under high-frequency usage of up to 400 cycles per day. Crafted from stainless steel with a sleek satin finish (630/US32D), the Ives 5BB1HW not only meets but exceeds ANSI/BHMA performance standards, ensuring reliability and durability. This hinge is UL classified for windstorm rated assemblies and is suitable for use with fire doors rated for up to three hours, providing peace of mind in safety-critical environments. Installation is straightforward, as it comes packed with fasteners compatible with hollow metal and wood doors. The hinge’s dimensions of 4.5 x 4 inches (114 x 102 mm) and a sturdy gauge of 0.180 make it a versatile option for various door types. Whether you're looking to enhance security or improve the functionality of your doors, the Ives 5BB1HW 4.5X4.0 630 5-Knuckle Hinge is a dependable choice that combines strength with style.

5-Knuckle Hinge, Heavy Weight, Full Mortise, Ball Bearing, 4.5X4.0, Stainless Steel Base, 630/US32D Satin Stainless Steel

Ives offers a variety of architectural hinges, also known as butt hinges, that will cover any need in residential and commercial applications while also exceeding code requirements. It is important to consider the door width, thickness, weight and clearance when choosing a hinge. With tested durability and consistent superior performance, Ives architectural hinges get the job done.

Features:

• Recommended for heavier weight doors (<150 lbs).
• Recommended for high frequency usage (<400 cycles per day).
• Made with four ball bearing assemblies
• Recommended for use with a door closer.
• Packed with fasteners for hollow metal and wood doors.
• 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS.
• Certifications:
• Certified to ANSI/BHMA A156.1 for performance standards.
• Meets ANSI/BHMA 156.7 for template hinge dimensions.
• UL Classified for windstorm rated assemblies - R37965.
• UL Listed, 3 hour fire doors.
• Material Substrate: Made from brass, 1040 steel, or 304 series stainless steel.
• Options:
• NRP: Non-removable pin.
• HT: Hospital tip.
• SH: Security stud - comes standard with NRP.
• RC-1/4, RC-5/8: Rounded corners.
• SEC: Security fasteners - pin-in-socket.
• TW4: Four Wire.
• TW4M: Four Wire With Monitor.
• TW8: Eight Wire.
• TW8M: Eight Wire With Monitor.
• TW12: Twelve Wire.
• MON: Monitor.

Dimensions:

Finishes:

• 600/USP - Primer Paint
• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 614/US10A - Oxidized Bronze
• 616/US11 - Blackened Bronze
• 619/US15 - Satin Nickel
• 622/B-BLK - Matte Black
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 643e/716/B-643e - Aged Bronze
• 629/US32 - Bright Stainless Steel
• 630/US32D - Satin Stainless Steel
• 631/F-BLK - Matte Black
• 632/US3 - Bright Brass
• 633/US4 - Satin Brass
• 639/US10 - Satin Bronze
• 640/US10B - Oil Rubbed Bronze
• 641/US10A - Oxidized Bronze
• 643/US11 - Blackened Bronze
• 646/US15 - Satin Nickel
• 651/US26 - Bright Chrome
• 652/US26D - Satin Chrome
• 643e/716 - Aged Bronze
