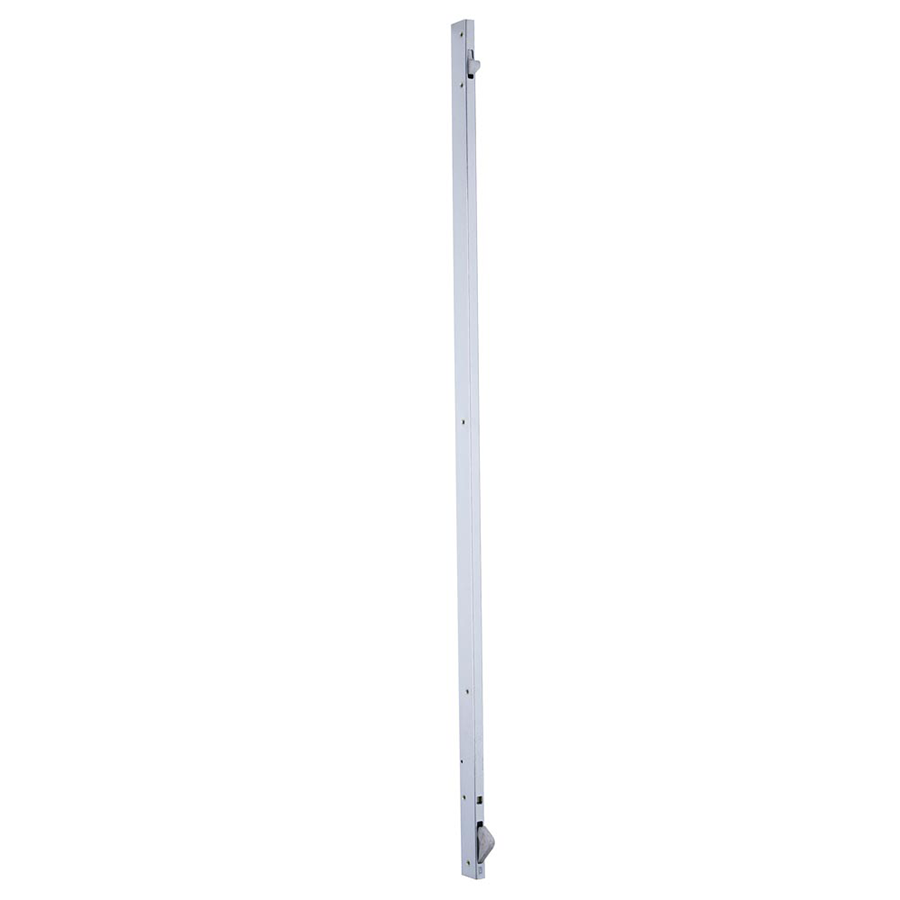

Ives COR72 628 72in Door Coordinator, UL, for 96in Opening, Satin Aluminum

Ives COR72 628 Door Coordinator is expertly designed for use on pairs of doors, ensuring that one door closes before the other for seamless operation. With a channel length of 72 inches, this coordinator is perfect for openings ranging from 84 inches to 132 inches, accommodating pairs of 4'0" doors. Crafted from high-quality 6000 Series aluminum in a sleek satin finish (628/US28), it combines durability with a modern aesthetic. The COR Series features an innovative trigger mechanism that holds the active door open until the inactive leaf closes, allowing for reliable latching. An adjustable override feature enables the active door to close even under extreme pressure, enhancing security and functionality. Designed for compatibility with flush bolts, this coordinator meets ANSI/BHMA A156.3 Type 21A standards and is UL Listed for installation on labeled frames, making it a dependable choice for commercial and residential applications. For installations with unequal-sized doors, the COR72's length should equal the active door width plus half the inactive door width, ensuring a perfect fit. Optional filler bars and mounting brackets are available to maintain clean lines and compatibility with various hardware. Trust Ives for exceptional design and reliability in door coordination solutions.

Door Coordinator, 72in Channel Length, UL, for 96in Opening (Range 84in to 132in), 628/US28 Satin Aluminum

Ives offers various accessories to ensure a door is hung, protected and secured. Coordinators work with a flush bolt to secure a door and ensure a pair of doors close in proper order for latching to occur. With many bar coordinators, filler bars, mounting brackets, gravity coordinators and carry bars, Ives has coordinator needs covered.

Specifications:

• The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other
• All COR units function easily; The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
• All COR units do not function correctly with swing clear hinges. (consult factory when used with 3⁄4" offset pivots)
• All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure
• All COR units are compatible with flush bolts
• For openings where doors are unequal size:
• The coordinator length should equal the active door width plus approximately 1⁄2 the inactive door width
• The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops
• The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines
• Material Substrate: Aluminum 6000 Series
• Optional mounting brackets available: MB1, MB2, MB1F, MB2F, MB3F, MB1V, MB2V and MB3V for other stop applied hardware
• Security pin screws
• Replacement mounting package
• Replacement rub plate package
• Optional filler bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain clean line
• Security pin screws
• Special prep cut-outs: Required for certain vertical exit device applications
• Certifications: Meets ANSI/BHMA A156.3 Type 21A. UL Listed for installation on labeled frame

Sizes:

Finishes:

• 628/US28 - Satin Aluminum, Anodized
• 711/315AN - Black Anodized
• 713 - Satin Chrome, Anodized

Features

• All COR units function easily; The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
• Security pin screws
• The coordinator length should equal the active door width plus approximately 1⁄2 the inactive door width
• Optional mounting brackets available: MB1, MB2, MB1F, MB2F, MB3F, MB1V, MB2V and MB3V for other stop applied hardware
• The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines
• Optional filler bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain clean line
• The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops
• Special prep cut-outs: Required for certain vertical exit device applications
• Certifications: Meets ANSI/BHMA A156.3 Type 21A. UL Listed for installation on labeled frame
• All COR units do not function correctly with swing clear hinges. (consult factory when used with 3⁄4" offset pivots)
• All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure
• Replacement mounting package
• The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other
• All COR units are compatible with flush bolts
• Replacement rub plate package
• For openings where doors are unequal size:
• Material Substrate: Aluminum 6000 Series
