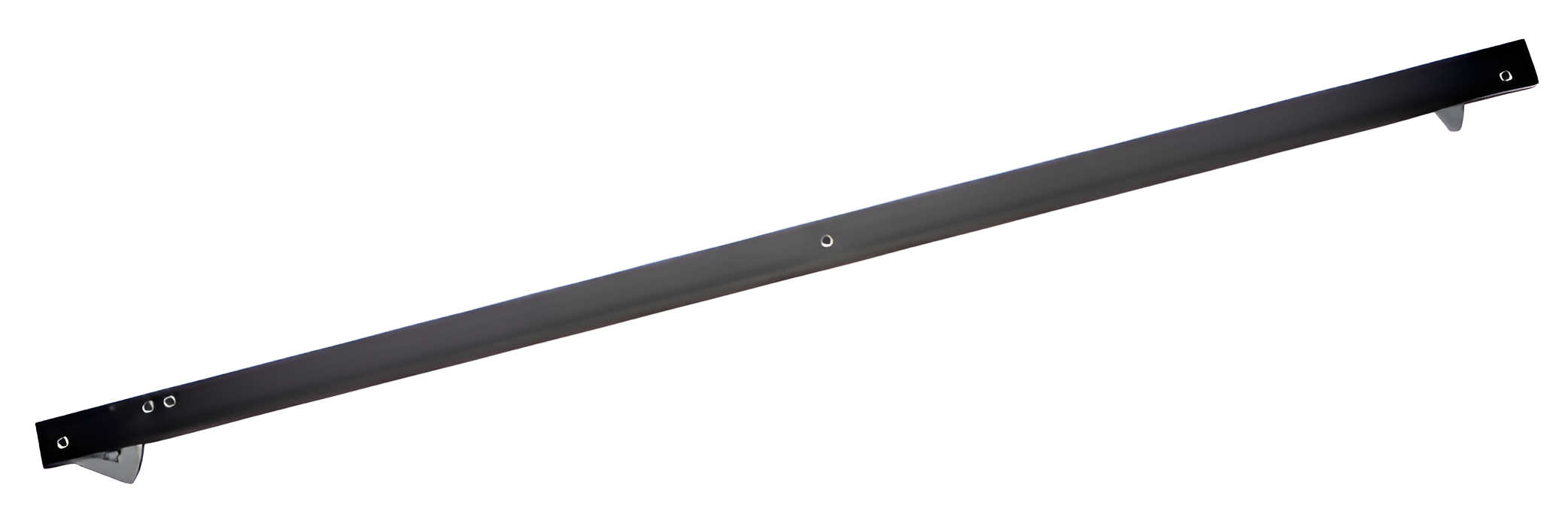

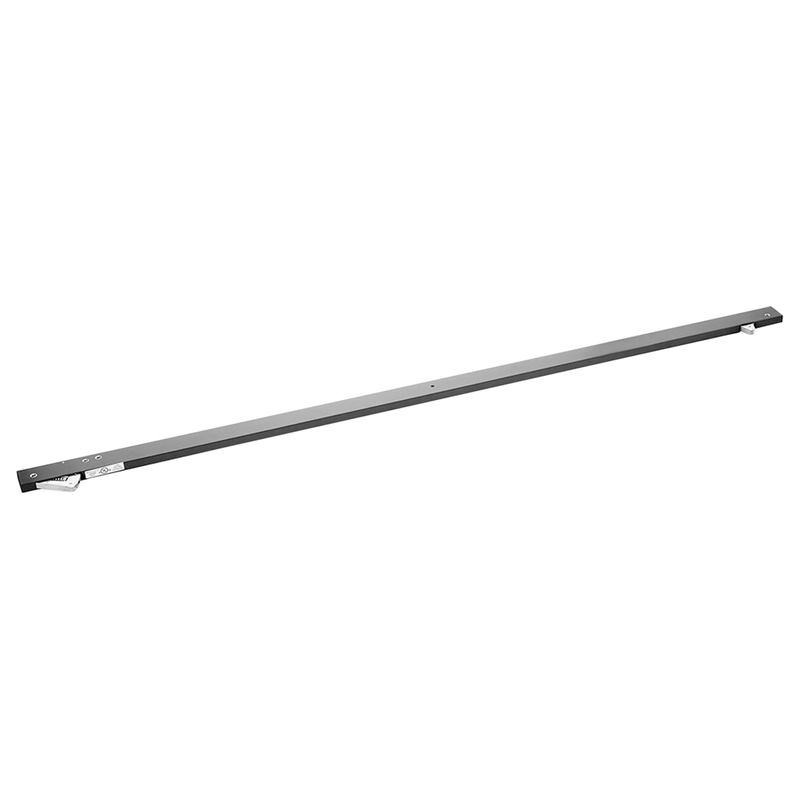

Rockwood 2672 BLACK 52in Door Coordinator with 20in Filler Bar for 72in Opening, Black Powder Coated

Rockwood Manufacturing Co 2672 BLACK Door Coordinator features a robust 52-inch channel length paired with a 20-inch filler bar, specifically designed for 72-inch openings. This essential hardware component is part of the 2600 series, which offers override protection to safeguard against damage from abnormal force applied to the door. The mechanism, along with the filler bar, is crafted to completely occupy the width of the opening, ensuring seamless integration when painted to match the frame, rendering it virtually invisible. Constructed from durable steel, the 2672 BLACK Door Coordinator promises longevity and reliability in various applications. It is non-handed, making installation straightforward regardless of door orientation. The product supports custom sizes across the 2600 series, accommodating jamb opening widths from 54 inches to 96 inches, allowing for flexibility in diverse settings. With an ANSI A156.3 Type 21A rating, this door coordinator meets professional standards for quality and performance. The package includes seven #12-24 x 1 1/4" truss head type C tapping screws for easy installation, ensuring you have everything needed for a quick setup. Weighing in at 8.0 lbs, the Rockwood 2672 BLACK Door Coordinator is an ideal choice for building professionals and homeowners seeking robust security solutions.

Door Coordinator, 52in Channel Length with 20in Filler Bar for 72in Opening, 693/Black Flat Black Powder Coated

The 2600 series door coordinators (2660, 2672, 2696) override protection to prevent damage in case of abnormal force on door. The mechanism and filler bar completely fill the width of the opening, and when painted to match the frame the coordinator becomes virtually invisible.

Features:

• Override protection to prevent damage in case of abnormal force on door
• Mechanism and filler bar completely fill width of opening
• Non-handed. Override protection to prevent damage in case of abnormal force on door. Mechanism and filler bar completely fill width of opening and when painted to match frame it becomes virtually invisible.
• Custom Sizes: The 2600 Series coordinators are manufactured in different housing lengths to coordinate the full range of door sizes including:
• NX2600 Series: For jamb opening widths 48" - 54"; coordinator length 42"
• 2600 Series: For jamb opening widths 54" - 96"; coordinator length 52".
• Size: 5/8" x 1 5/8" x 52" Opening: 72"
• Material: Steel
• Fasteners: 7 ea. #12-24 x 1 1/4" Truss head type C tapping screws
• Weight: 8.0 lbs.
• ANSI A156.3: Type 21A
