Images may not represent actual product and finish

Ives FB41P-WD US32D Flush Bolts

Your Price: $201.02

Retail Price:$365.50

Your Savings:$164.48(45%)

Automatic Flushbolt, Pair, Wood Doors, Satin Stainless Steel

Part Number : IVE_FB41PWDUS32D

Availability: 186 In Stock

Quantity

Ives FB41P-WD US32D Flush Bolts

Automatic Flushbolt, Pair, Wood Doors, Satin Stainless Steel

Features

6 X 3⁄4" FPHSMS
Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened
Non-handed
Security pin screws
Certifications: UL10C Listed (90 min) fire doors 8'0" x 8'0"
10 X 1" FPHSMS
Bolt backset is 3⁄4"
10-12 X 1 1⁄4" Plastic anchor

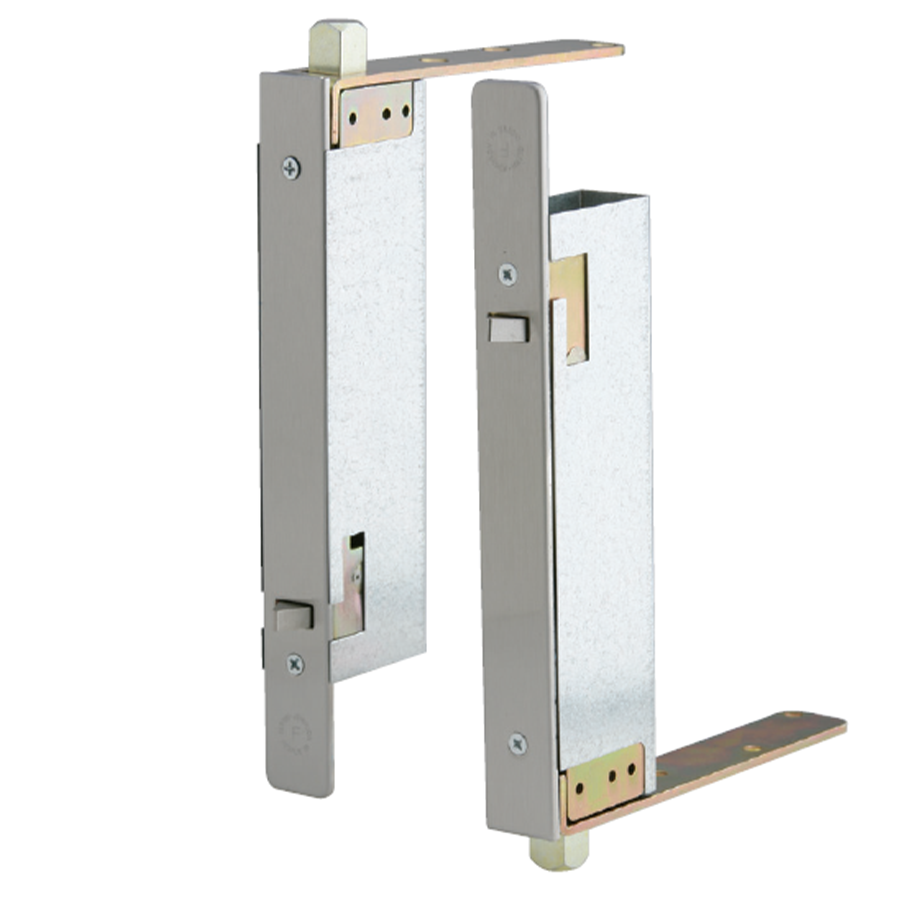

FB41P top and bottom bolts (pair)
For use with wood doors only
8-32 X 3⁄8" UFPHMS
Optional rod lengths available for top bolt only on non-fire rated openings—18", 24", 36" and 48"
8 X 1" FPHSMS
Low actuation forces—top bolt has no spring tension

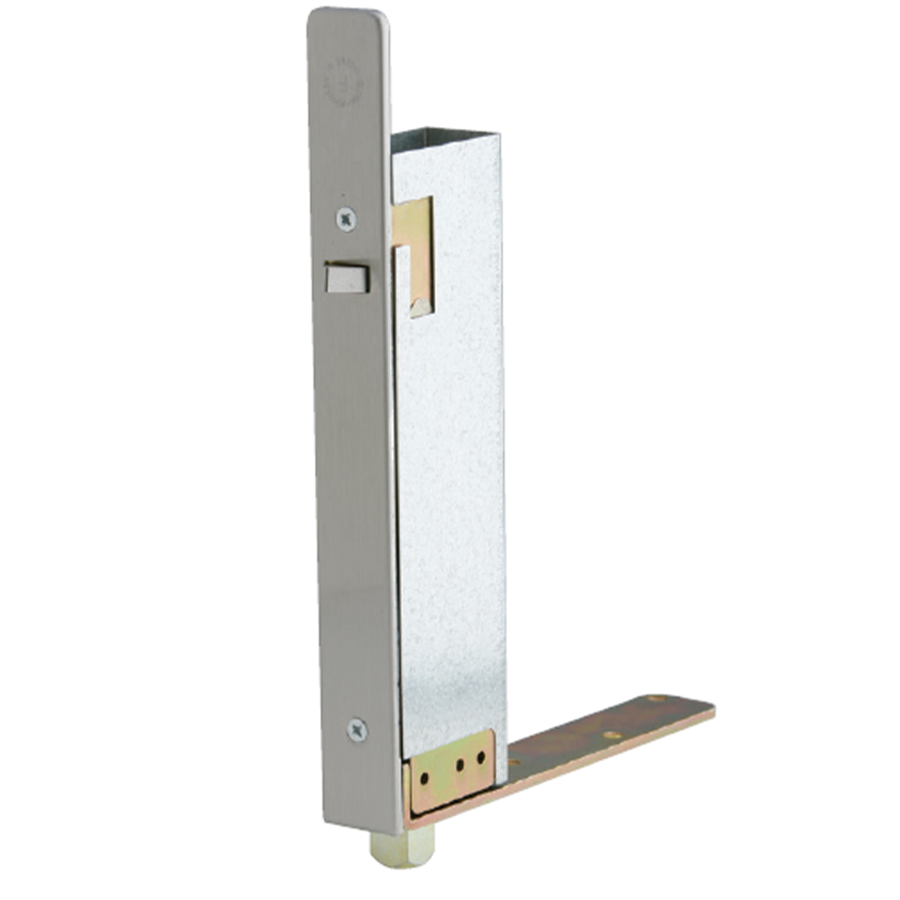

FB41B bottom bolt only
Mounting hardware:
6-32 X 3⁄8" FPHMS
Bolt throw is 3⁄4" with a 7⁄8" vertical adjustment

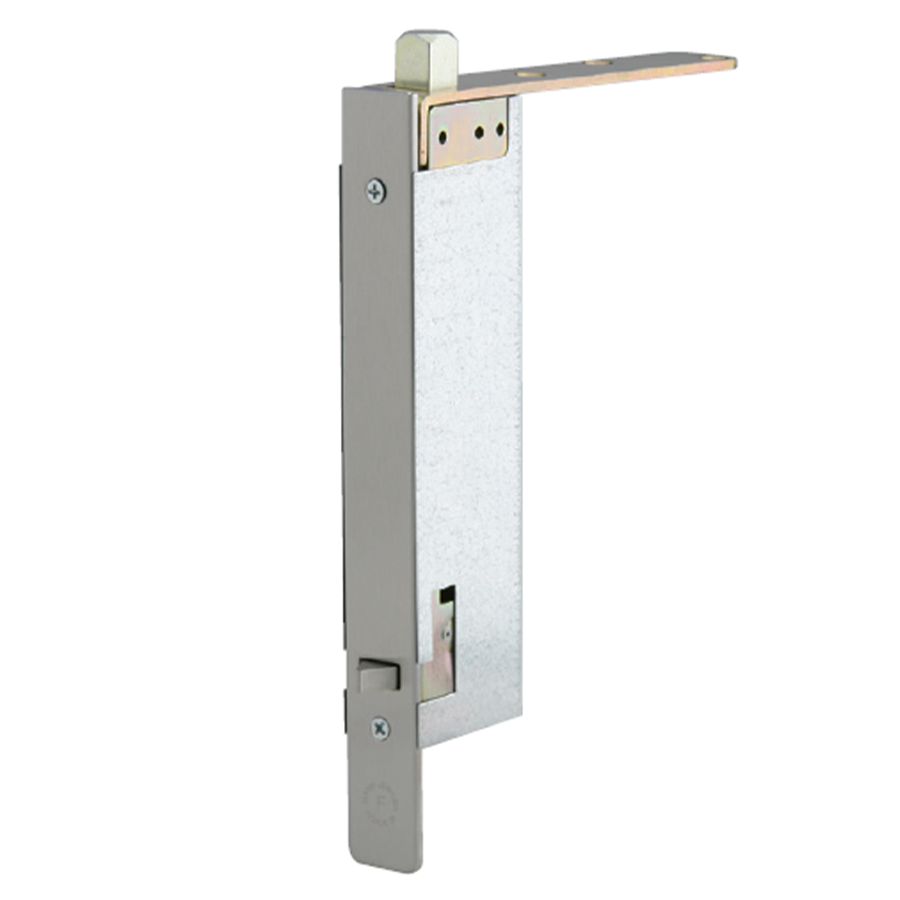

FB41T top bolt only

Manufacturer surcharge: $ 0.0

Alternate Codes: FB41P-WD US32D, FB41PWDUS32D

Base Material: Stainless Steel

Category: Door Accessories, Flush & Slide Bolts

Commercial Residential: Commercial

Finish: 630/US32D

Finish Description: Satin Stainless Steel

Finish Family: Matte Silver

Installation: Commercial

Pack Height: 1.5"

Pack Length: 11"

Pack Qty: 1

Pack Width: 7.25"

Series: Ives Architectural Hardware

Ship Weight: 3 lbs.

Subtype: Flush Bolts

Type: Hinges and Pivots

Unit of Measure: Each
