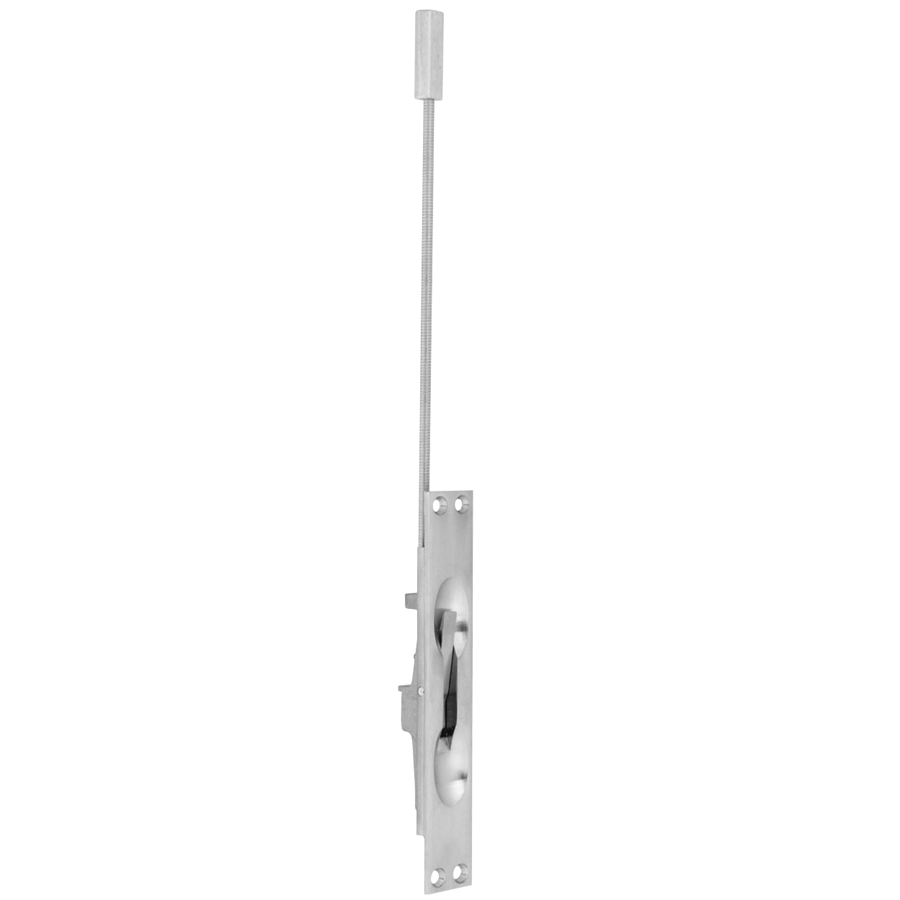

Ives FB458-18 US26D Manual Flush Bolt with 18in Rod, 1-1/8in Depth, Satin Chrome

Ives FB458-18 US26D Manual Flush Bolt features an 18-inch extension rod designed for reliable security in double door applications. With a compact body size of 1" wide, 6-3/4" long, and 1-1/8" deep, this flush bolt is both functional and discreet. It operates effortlessly: when the active door is opened, simply move the lever up to retract the bolt, allowing access to the inactive leaf. Conversely, when the inactive leaf is closed, the lever can be pushed down to secure it in place, engaging the bolt into the strike for added safety. Installation is simplified for metal frames, as the round bolt head requires only a punched hole, making it user-friendly for professionals and skilled homeowners alike. Notably, the special guide design and flat-sided bolt tip prevent any rotation, ensuring consistent performance. The non-handed feature allows for versatility in various applications. The bolt throw measures 3/4" with a 7/8" vertical adjustment, while the bolt tip has a diameter of 1/2". It also comes with optional rod lengths for tailored fit, accommodating various door types. With a sleek satin chrome finish (626/US26D), the Ives FB458-18 is a reliable choice for enhancing your door security system.

Manual Flush Bolt, 18in Extension Rod, 1-1/8in Depth x 1in Wide x 6-3/4in Face, 626/US26D Satin Chrome

Specifications:

• When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened
• When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf
• Simplified installation in metal frames
• Round bolt head requires only a punched hole
• Use of strike optional
• Special design of guide and flat sided bolt tip to prevent bolt rotation
• Non-handed
• Bolt tip 1⁄2" diameter
• Bolt throw is 3⁄4" with a 7⁄8" vertical adjustment
• Bolt backset is 3⁄4"
• Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
• Optional rod lengths available for top bolt only on non-fire rated openings—18", 24" for fire rated doors with AHJ approval, 36" and 48" for non-fire rated doors
• Mounting hardware: 8-32 X 1" FPHMS
• Certifications: UL10C Listed (3 hour) fire doors 8’0" X 10’0" (fire rated openings require top and bottom bolt)

Dimensions:

• Body size: 1" W x 6 3⁄4" L x 1 1⁄8" D
• Guide size: 1" W x 2" L x 5⁄64" H
• Strike size: 15⁄16" W x 2 1⁄4" L x 5⁄64" T

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 609/US5 - Satin Brass, Blackened
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 622/BLK - Matte Black
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 643e/716 - Aged Bronze

Features

• Special design of guide and flat sided bolt tip to prevent bolt rotation
• Use of strike optional
• Simplified installation in metal frames
• Non-handed
• Round bolt head requires only a punched hole
• Bolt backset is 3⁄4"
• Bolt tip 1⁄2" diameter
• When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf
• Mounting hardware: 8-32 X 1" FPHMS
• When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened
• Certifications: UL10C Listed (3 hour) fire doors 8’0" X 10’0" (fire rated openings require top and bottom bolt)
• Optional rod lengths available for top bolt only on non-fire rated openings—18", 24" for fire rated doors with AHJ approval, 36" and 48" for non-fire rated doors
• Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
• Bolt throw is 3⁄4" with a 7⁄8" vertical adjustment
