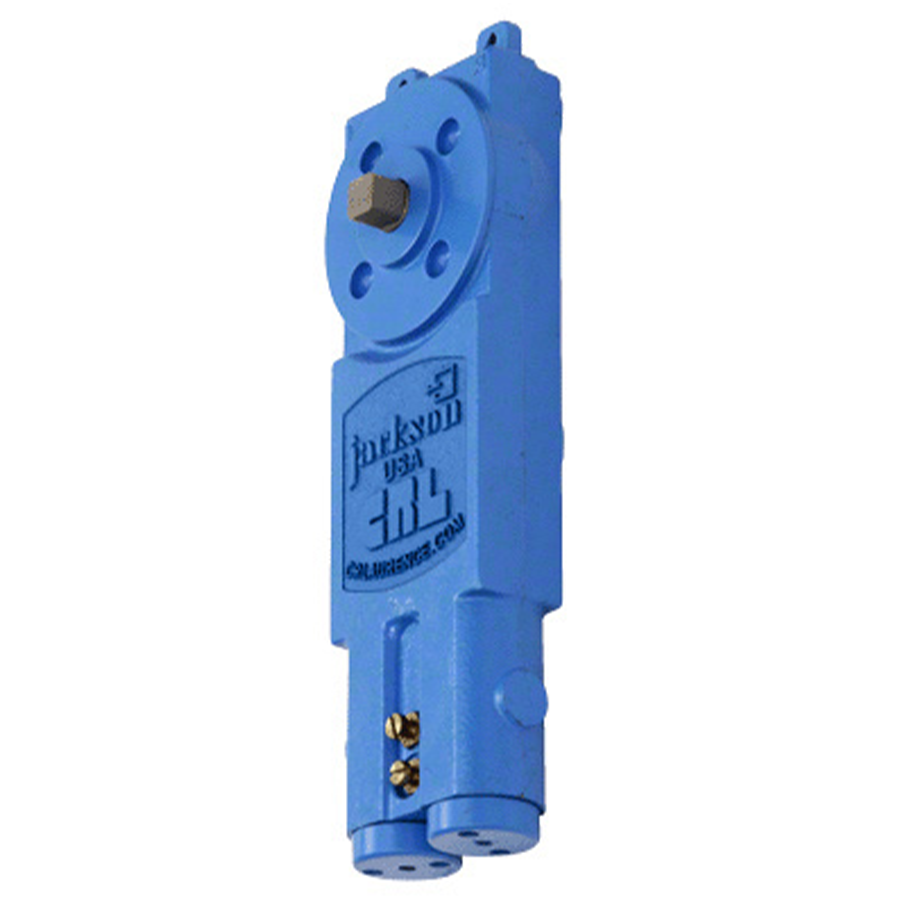

Jackson 20101M20 Adjustable Overhead Concealed Closer Body, Multi 90 Hold Open, Blue - CRL

Jackson 20101M20 Overhead Concealed Closer Body Only Adjustable Spring Power Multi 90 Hold Open, Blue offers a reliable solution for controlling door movement in a variety of settings. Designed for doors ranging from 30" to 42" wide, this closer features an adjustable spring power mechanism, accommodating sizes from 1 (barrier-free) to 4 (regular). The dual action valves ensure smooth closing and latching speeds, while the 90º hold open function provides added convenience. Crafted to fit standard 1-3/4" x 4" or larger header extrusions, this closer is interchangeable with all Jackson models and similar overhead concealed closers, making it an excellent choice for retrofitting existing fixed spring units. It's ideal for aluminum and hollow metal doors, ensuring compatibility across a range of applications. With a maximum door weight capacity of 250 lbs. and a recommended door height of 96", the Jackson 20101M20 is built for durability and functionality. Additional features include both standard and extended spindle models, and it comes with a 5-year limited warranty, offering peace of mind with your purchase. This closer meets the Americans with Disabilities Act (ADA) requirements, making it suitable for accessible environments.

Overhead Concealed Closer Body Only Adjustable Spring Power Multi 90 Hold Open, Blue - CRL / CR Laurence

This Jackson adjustable spring power overhead concealed closer body, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The closer features dual action valves for closing and latching speeds. 90º Hold open with fixed adjustable spring power multi size. Door closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson and similar style of overhead concealed Closers.

Features:

• Adjustable spring power size 1 (barrier-free) to size 4 (regular)
• Can retrofit existing fixed spring closers
• Standard and extended spindle models
• 5 Year limited warranty

Specifications:

• Americans with Disabilities Act: Yes
• Body Height: 1-11/16 in. (42.9 mm)
• Body Length: 11-5/8 in. (295.3 mm)
• Body Width: 3-11/16 in. (93.7 mm)
• Closer Type: Overhead concealed
• Door Height: 96 in. (2438.4 mm)
• Handing: Double acting
• Hold Open: 90°
• Maximum Door Weight: 250 lbs. (113.4 kg)
• Maximum Door Width - Exterior: 42 in. (1066.8 mm)
• Maximum Door Width - Interior: 36 in. (914.4 mm)
• Recommended Door Type: Aluminum, hollow metal
• Spring Length: 1/2 in. (12.7 mm)
• Spring Size: Adjustable
