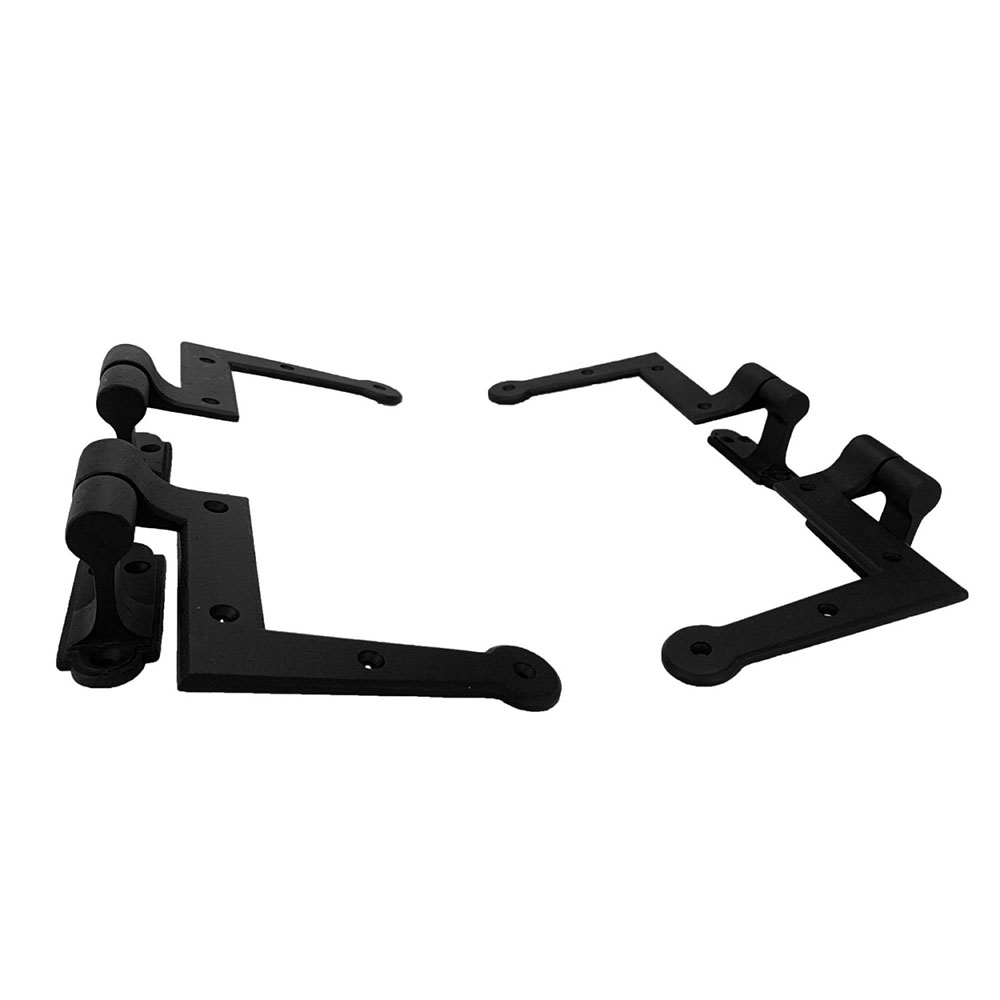

Enhance your window installations with the John Wright New York Style New Construction Hinge Set, expertly crafted from durable cast iron and finished with a powder coating for long-lasting protection. This hinge set features a minimal offset design, specifically engineered for modern construction homes where storm windows or other obstructions may be present. The pintle offset measures 1.875", with a pin diameter of .375", ensuring a secure fit.

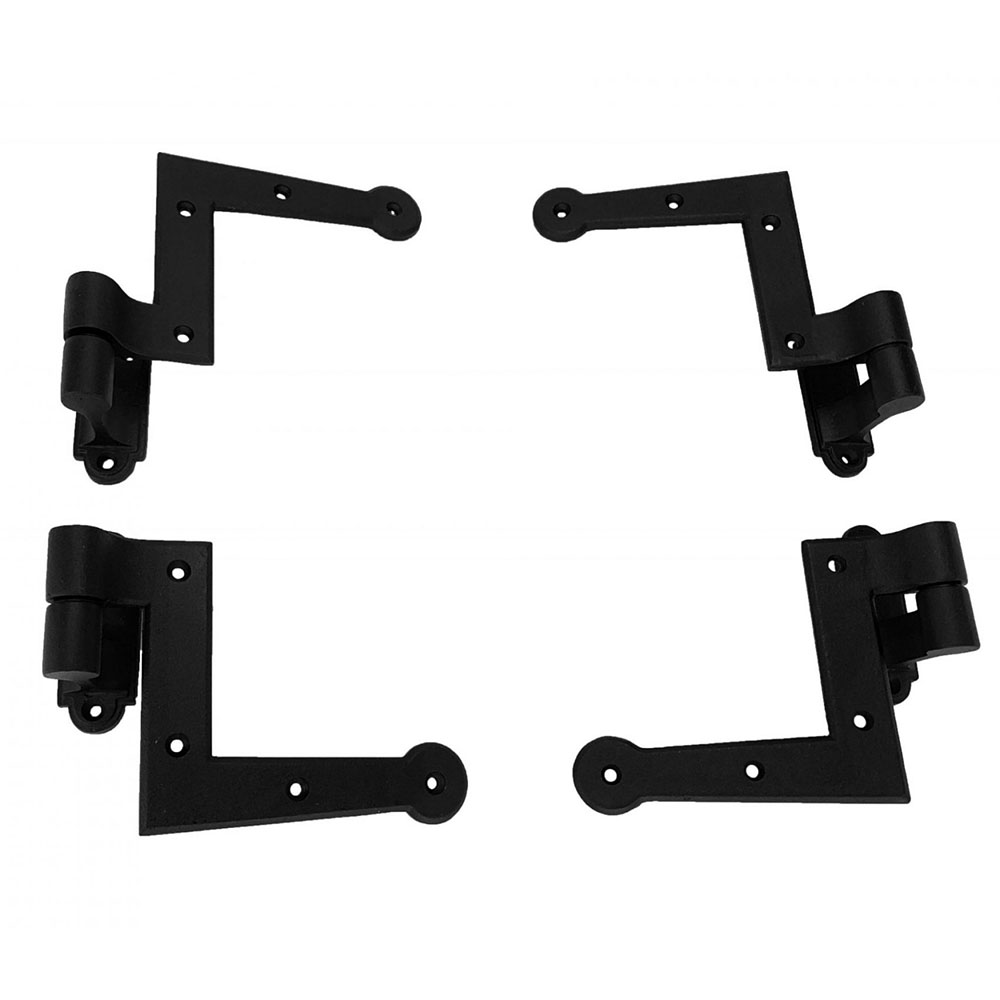

This set includes two left-hand and two right-hand hinges, along with pintles-enough hardware for one window. The base of the pintle to the underside of the hinge is 1.5", making it suitable for various applications. Each set comes complete with (28) #8 x 1 flat head screws for easy installation. For instances requiring additional space, consider using the shim kit (#88-515). Elevate your restoration or new construction project with this reliable hinge set, sold as a set of 4.
New York Style New Construction Hinge Set
Cast iron, powder coated, minimal offset on hinge. Pintle offset is 1.875" with a pin diameter of .375". Complete with (28) #8 x 1 flat head screws.
Near-zero offset hinge is designed for newer construction homes where storm windows of other obstructions exist. Base of pintle to underside of hinge is 1.5". Set consists of 2 lefts, 2 rights, and pintles–enough for one window. Pin diameter of the pintles is .375". Screws included. See Guide (link below) for more information. Use shim kit (#88-515) if you need more space under the hinge.
Height (in): 2.375
Length (in): 6.75
Model: 088514
Sold As: Set of 4
Weight (lbs): 4
Width (in): 6
