Enhance the functionality and durability of your shutters with the John Wright 088530 Mid Range Hinge, featuring a 2.25" offset. Crafted from robust cast iron, this hinge is powder coated for added protection against the elements, making it ideal for both residential and commercial applications. The pintle pin diameter measures .375", ensuring a secure fit for your shutter systems.
Sold individually, the Mid Range Hinge is designed to be used in conjunction with the 088512 NY Style 2 Hinge set, particularly for large or heavy shutters. Please note that this hinge is not compatible with the 88-510 or 88-514 New York Hinges. Each hinge comes complete with (6) #8 x 1" flat head screws for straightforward installation.
With dimensions of 7" in length, 3.5" in width, and 2.75" in height, and a lightweight design at 1.1 lbs, the John Wright Mid Range Hinge is the perfect choice for restoration contractors and shutter installers seeking reliable and traditional hardware solutions.

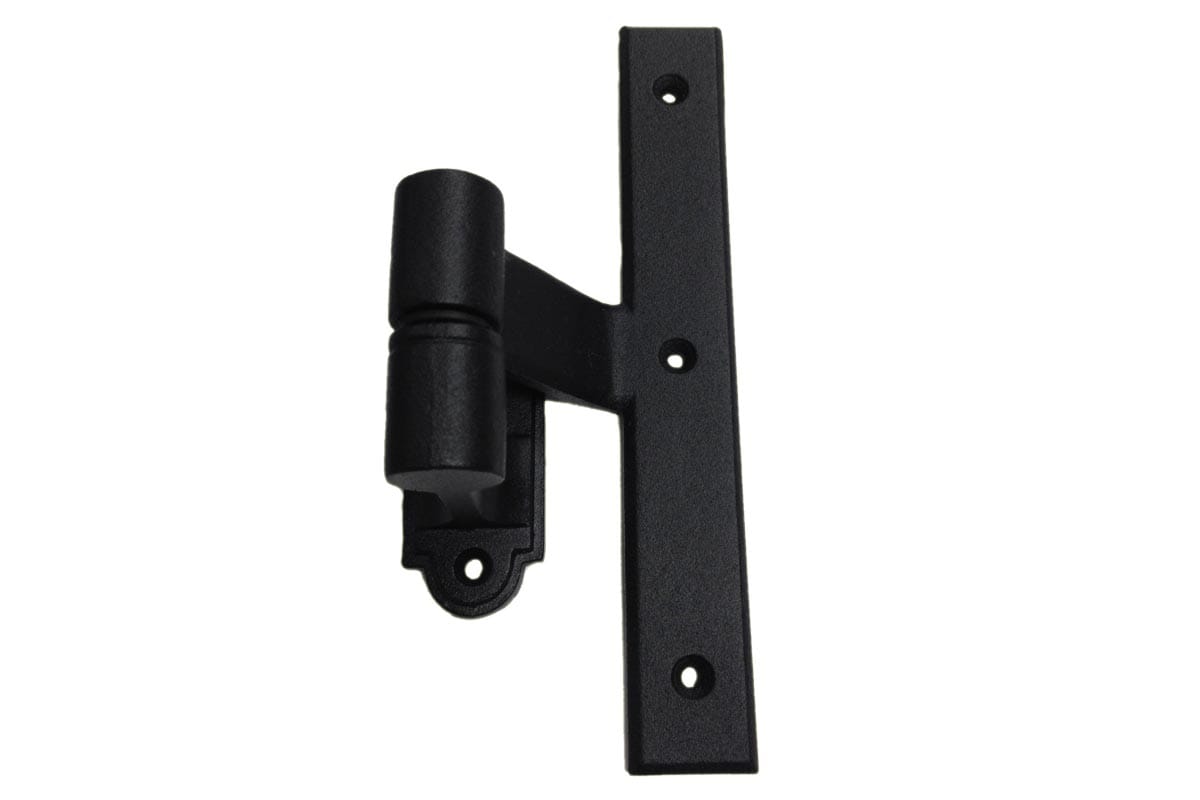

Mid Range Hinge, 2.25" Offset
Cast iron, powder coated, 2.25" offset on the hinge and pintle. Pintle pin diameter is .375" Complete with ( 6 ) # 8 x 1" flat head screws
Mid Range Hinge is sold individually and has a 2-1/4" offset on the hinge and pintle. Generally used with the 088512 NY Style 2 Hinge set for large or heavy shutters. Not for use with 88-510 or 88-514 New York Hinges. Pintle pin diameter is .375".
Height (in): 2.75
Length (in): 7
Model: 088530
Weight (lbs): 1.1
Width (in): 3.5
