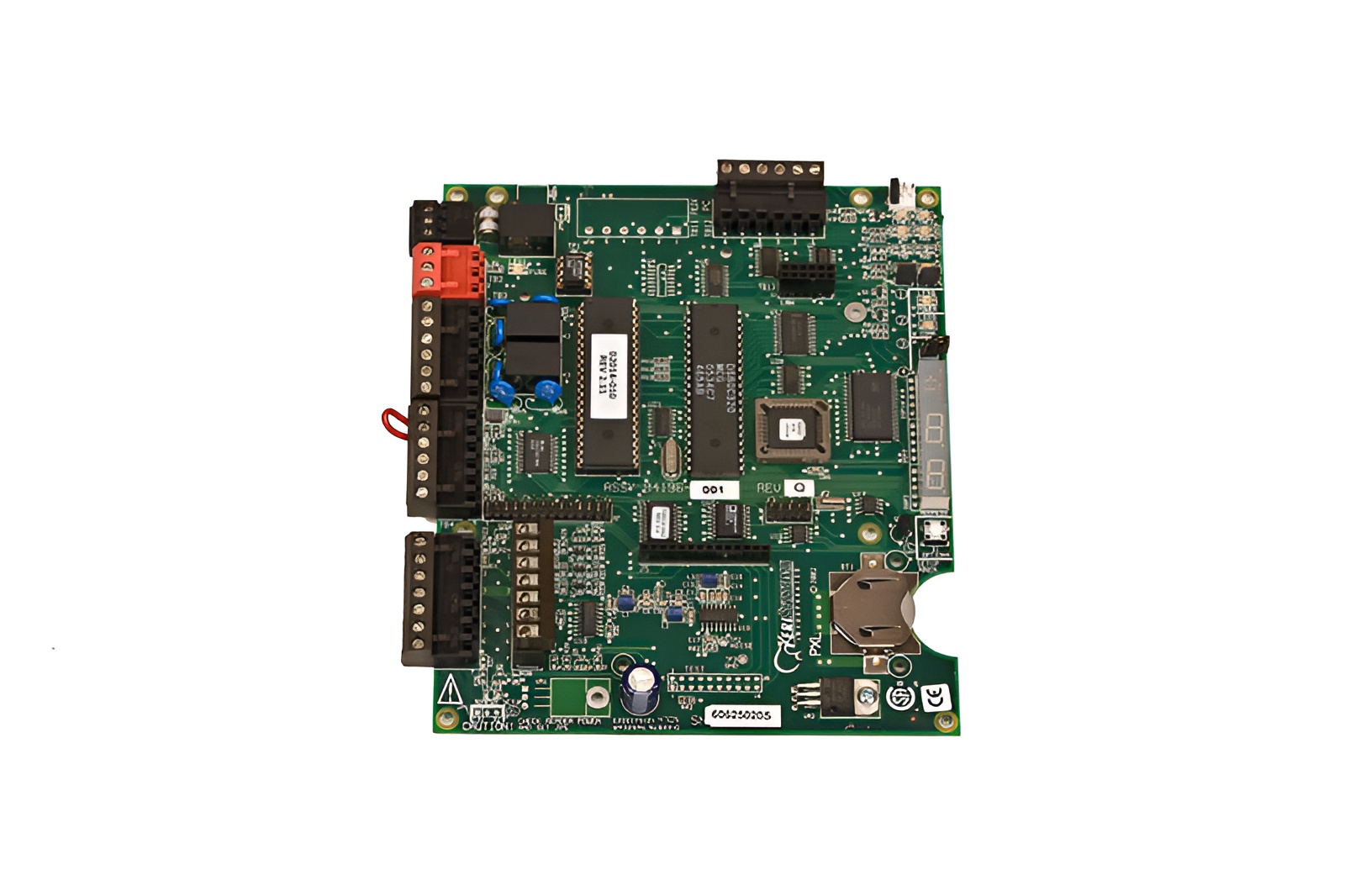

Keri PXL-500P-1 NE Tiger II Access Controller

Keri Systems PXL-500P-1 NE Tiger II Access Controller offers a robust solution for managing access control across a wide array of locations. Designed for compatibility with MS Series Readers, this controller efficiently supports up to 256 doors at a single site and can manage thousands of doors across multiple remote locations. Its unique architecture provides a cost-effective hardware platform without compromising on functionality or reliability. Equipped with Keri's Doors32 or the recommended Doors.NET software, the PXL-500P ensures seamless operation and management. Each controller includes essential input/output features for single-door management, such as a lock relay, door sense, request-to-exit, and two reader inputs, as well as an alarm output. The system’s RS-485 network capability allows for connection to up to 128 controllers, while the RS-232 serial port facilitates direct PC connections or remote site management via TCP/IP or modem. With a user capacity of 65,000 and expandable configurations, the PXL-500P is perfect for a variety of applications. This standalone access control solution is a reliable choice for building professionals seeking advanced security features without excessive costs. For those looking to enhance their security systems, the Keri Systems PXL-500P-1 NE Tiger II Access Controller is a smart investment.

Tiger II Access Controller

Tiger II Controller for MS Series Readers, No Enclosure

Keri's PXL-500 Tiger II Controller hardware platform provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. The unique architecture allows Keri to o er the system hardware at a lower cost compared to other manufacturers. It also contains many features that simplify and signi cantly reduce the cost of installation. The system is managed by Keri's Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations. The PXL-500 itself contains all the input/output functionality necessary to manage a single door (Lock Relay, Door Sense, Requestto- Exit, and two reader inputs) as well as provide an alarm output. Each controller has an RS-485 port for connection to other PXL-500's (up to 128 per network) and an RS-232 serial port for connection to a PC which communicates with the rst PXL-500 on the network. The PXL-500's two reader inputs can be con gured for either Keri's acclaimed MS Series Proximity Readers or any Wiegand-compatible device (model PXL-500P for MS Readers, model PXL-500W for Wiegand-compatible readers.)

Keri’s PXL-500 Tiger II Controller is an RS-485 based hardware platform with a loyal following and years of proven reliability.

Provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. Its companion SB-593 Satellite Expansion Board simply takes flexibility and expandability one step further. The system is managed by Keri’s Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations.

• RS-232 serial port for direct connection to PC or via TCP/IP or modem for remote site management
• 100% intelligence at each door
• Expandable by 1 or 2 doors at a time
• User Capacity: 65,000
• RS-485 Controller Network for up to 256 doors per site
