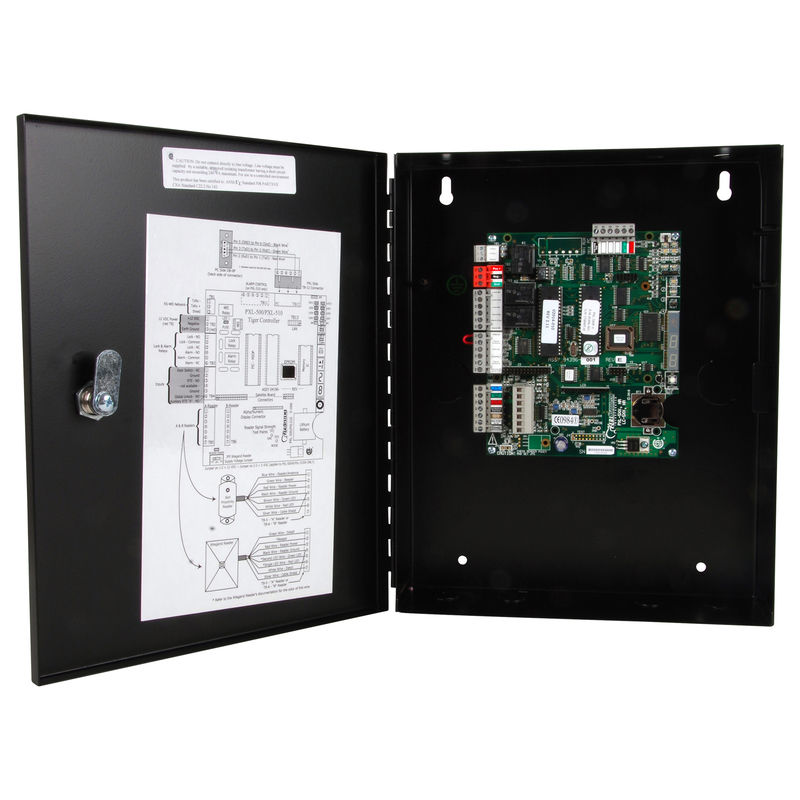

Keri PXL-500P-1 Tiger II Access Controller

Keri Systems PXL-500P-1 Tiger II Access Controller offers a robust solution for sophisticated access control, accommodating up to 256 doors at a single site and thousands across multiple locations. This hardware platform is built on a reliable RS-485 architecture that ensures 100% intelligence at each door, providing enhanced security and flexibility. The PXL-500P model is designed specifically for Keri's acclaimed MS Series Proximity Readers, while also supporting Wiegand-compatible devices. Managed by Keri’s Doors32 or Doors.NET software-where Doors.NET is recommended for new installations-the PXL-500P simplifies installation with its comprehensive input/output functionalities, including a Lock Relay, Door Sense, Request-to-Exit, and two reader inputs, along with an alarm output. The system can expand seamlessly, allowing for one or two doors to be added at a time, and supports a user capacity of up to 65,000. With an RS-232 serial port for direct PC connection and options for TCP/IP or modem connections for remote site management, this controller is adaptable to various operational needs. The PXL-500P-1 Tiger II Access Controller integrates cost-effectiveness with advanced technology, making it an excellent choice for secure access management.

Tiger II Access Controller

Tiger II Controller for MS Series Readers

Keri's PXL-500 Tiger II Controller hardware platform provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. The unique architecture allows Keri to o er the system hardware at a lower cost compared to other manufacturers. It also contains many features that simplify and signi cantly reduce the cost of installation. The system is managed by Keri's Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations. The PXL-500 itself contains all the input/output functionality necessary to manage a single door (Lock Relay, Door Sense, Requestto- Exit, and two reader inputs) as well as provide an alarm output. Each controller has an RS-485 port for connection to other PXL-500's (up to 128 per network) and an RS-232 serial port for connection to a PC which communicates with the rst PXL-500 on the network. The PXL-500's two reader inputs can be con gured for either Keri's acclaimed MS Series Proximity Readers or any Wiegand-compatible device (model PXL-500P for MS Readers, model PXL-500W for Wiegand-compatible readers.)

Keri’s PXL-500 Tiger II Controller is an RS-485 based hardware platform with a loyal following and years of proven reliability.

Provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. Its companion SB-593 Satellite Expansion Board simply takes flexibility and expandability one step further. The system is managed by Keri’s Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations.

• RS-232 serial port for direct connection to PC or via TCP/IP or modem for remote site management
• 100% intelligence at each door
• Expandable by 1 or 2 doors at a time
• User Capacity: 65,000
• RS-485 Controller Network for up to 256 doors per site
