Keri PXL-500W-1 Tiger II Access Control System

Keri Systems PXL-500W-1 Tiger II Access Controller offers a sophisticated solution for managing access control across numerous doors. Designed for Wiegand-type readers, this robust hardware platform supports up to 256 doors at a single site and can scale to thousands across multiple locations. The PXL-500 features a unique architecture that delivers lower installation costs without compromising quality or functionality. Managed by Keri's Doors32 or the recommended Doors.NET software, the PXL-500 simplifies system management and installation. It includes essential I/O capabilities, such as a lock relay, door sense, request-to-exit, and two reader inputs. Additionally, it provides an alarm output for enhanced security monitoring. The controller boasts an RS-485 port facilitating connection to up to 128 other controllers, as well as an RS-232 serial port for direct PC connection or remote management via TCP/IP or modem. With a user capacity of 65,000 and the ability to expand by one or two doors at a time, the PXL-500 is engineered for flexibility. This stand-alone access control system requires 12VDC/1AMP and stands out with its proven reliability and 100% intelligence at each door, making it a trusted choice for building professionals and knowledgeable homeowners alike.

Tiger II Access Controller

Tiger II Controller for Wiegand Type Readers

Keri's PXL-500 Tiger II Controller hardware platform provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. The unique architecture allows Keri to o er the system hardware at a lower cost compared to other manufacturers. It also contains many features that simplify and signi cantly reduce the cost of installation. The system is managed by Keri's Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations. The PXL-500 itself contains all the input/output functionality necessary to manage a single door (Lock Relay, Door Sense, Requestto- Exit, and two reader inputs) as well as provide an alarm output. Each controller has an RS-485 port for connection to other PXL-500's (up to 128 per network) and an RS-232 serial port for connection to a PC which communicates with the rst PXL-500 on the network. The PXL-500's two reader inputs can be con gured for either Keri's acclaimed MS Series Proximity Readers or any Wiegand-compatible device (model PXL-500P for MS Readers, model PXL-500W for Wiegand-compatible readers.)

Keri’s PXL-500 Tiger II Controller is an RS-485 based hardware platform with a loyal following and years of proven reliability.

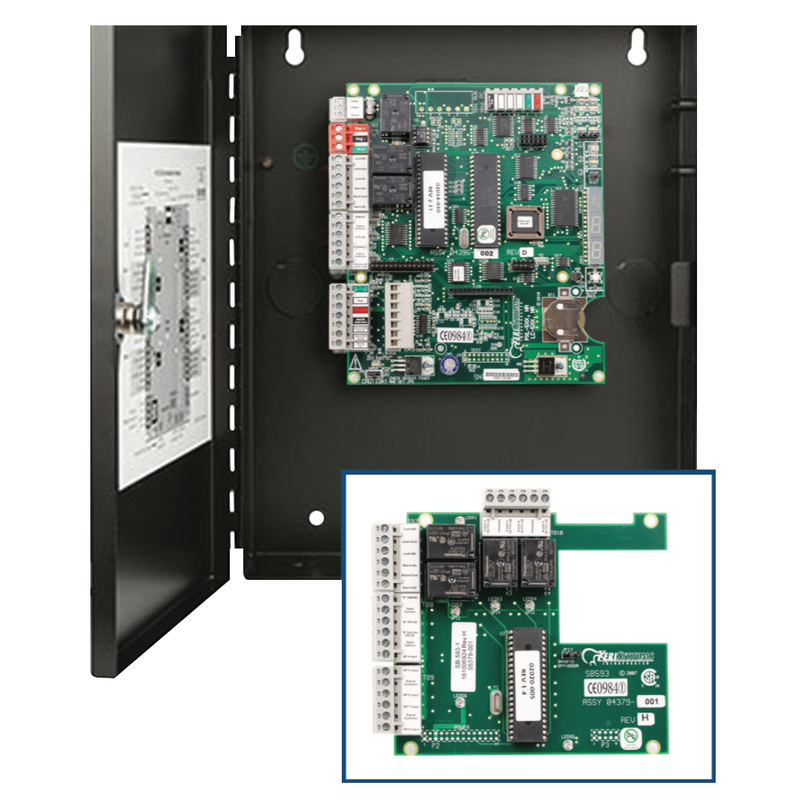

Provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. Its companion SB-593 Satellite Expansion Board simply takes flexibility and expandability one step further. The system is managed by Keri’s Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations.

• RS-232 serial port for direct connection to PC or via TCP/IP or modem for remote site management
• 100% intelligence at each door
• Expandable by 1 or 2 doors at a time
• User Capacity: 65,000
• RS-485 Controller Network for up to 256 doors per site
