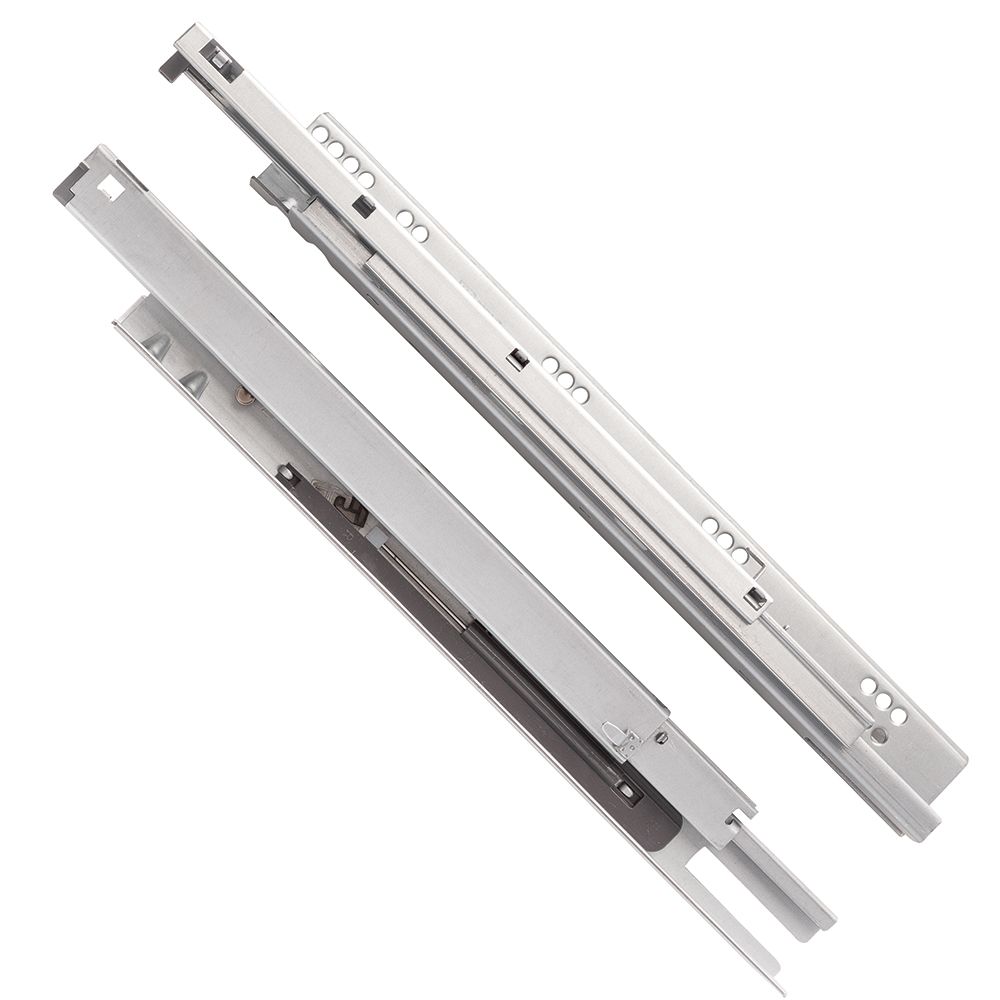

Knape & Vogt KVGS-2070AB 12 12" 75lb Full Extension Undermount G-Slide Hardware

KNAPE & VOGT KVGS-2070AB 12 12" 75lb FulExt Undermount G-Slide enhances your cabinetry with its advanced design and superior functionality. These 12-inch undermount drawer slides are engineered for full extension and feature a soft-close mechanism, ensuring a smooth and quiet operation. With a robust load rating of 75 pounds, they are ideal for both frame and frameless cabinet constructions. Constructed with a sleek zinc finish, the GSlide 2070 not only elevates the aesthetic of your cabinets but also adheres to top industry standards, including ANSI performance criteria set by BIFMA, BHMA, and KCMA. Designed for drawers with a thickness of 1/2" to 5/8", these slides accommodate a maximum drawer width of 24" and a minimum interior width of 6 1/2". The 5/32" setback and 32mm hole pattern ensure compatibility with existing installations, making upgrades hassle-free. Additionally, the optional rear mounting bracket and easy drawer removal with front release levers further enhance user convenience. Elevate your cabinet projects with the reliability and quality that KNAPE & VOGT is known for.

12" 75lb FulExt Undermount G-Slide

• Load Rating: 75-Pound Class Dynamic
• Easy drawer removal with front release levers
• 5/32" (4mm) setback
• Height: 17/8" (includes dampener)
• Optional rear mounting bracket
• Minimum interior drawer width = 61/2"
• Designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA
• Recommended max drawer width 24"
• Travel: Full Extension
• 32mm hole pattern matches previous GS2070 slides and industry standards
• Available for drawer thickness of 1/2" to 5/8" drawer material
• Mounting: Undermount, for frame or frameless construction
• Zinc finish
• Release levers sold separately
