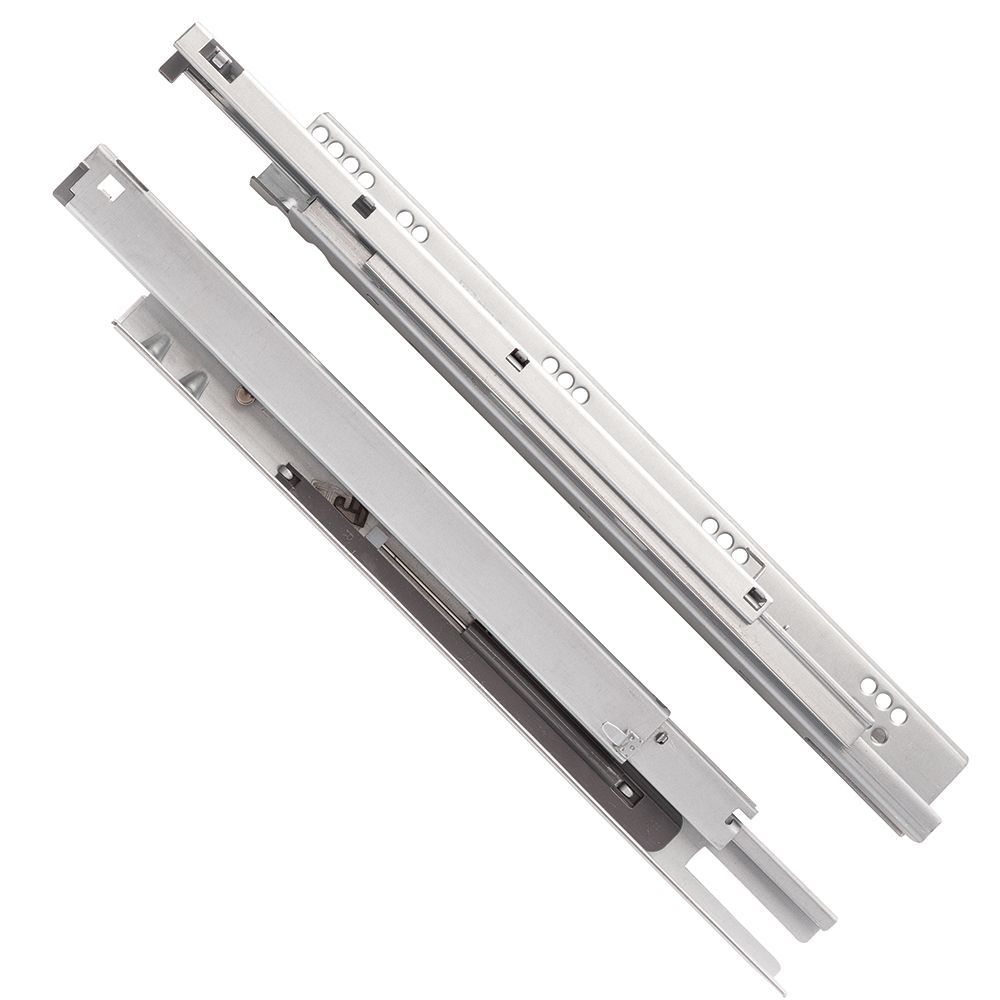

Knape & Vogt KVGS-2070AB 18 18" 75lb Full Extension Undermount G-Slide Hardware

KNAPE & VOGT KVGS-2070AB 18 18" 75lb FulExt Undermount G-Slide elevates your cabinetry with its innovative design and robust functionality. These 18-inch full-extension undermount drawer slides are engineered to support a dynamic load of up to 75 pounds, making them ideal for high-quality cabinet projects. Enjoy the smooth, quiet operation provided by the soft-close feature, ensuring that drawers close gently every time. Designed for both frame and frameless constructions, the KVGS-2070AB has a height of 1-7/8 inches, accommodating a variety of drawer thicknesses from 1/2 to 5/8 inches. The 32mm hole pattern allows for easy installation and compatibility with existing GS2070 slides, ensuring a seamless upgrade. With a recommended maximum drawer width of 24 inches and a minimum interior width of 6-1/2 inches, these slides offer versatility for your cabinetry needs. Made with a sleek zinc finish, these slides not only perform exceptionally but also enhance the aesthetic appeal of your cabinets. They meet or exceed ANSI performance standards established by BIFMA, BHMA, and KCMA, guaranteeing durability and reliability. Optional rear mounting brackets and easy drawer removal with front release levers further enhance their usability. Upgrade your cabinetry with KNAPE & VOGT’s GSlide technology today.

18" 75lb FulExt Undermount G-Slide

• Load Rating: 75-Pound Class Dynamic
• Easy drawer removal with front release levers
• 5/32" (4mm) setback
• Height: 17/8" (includes dampener)
• Optional rear mounting bracket
• Minimum interior drawer width = 61/2"
• Designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA
• Recommended max drawer width 24"
• Travel: Full Extension
• 32mm hole pattern matches previous GS2070 slides and industry standards
• Available for drawer thickness of 1/2" to 5/8" drawer material
• Mounting: Undermount, for frame or frameless construction
• Zinc finish
• Release levers sold separately
