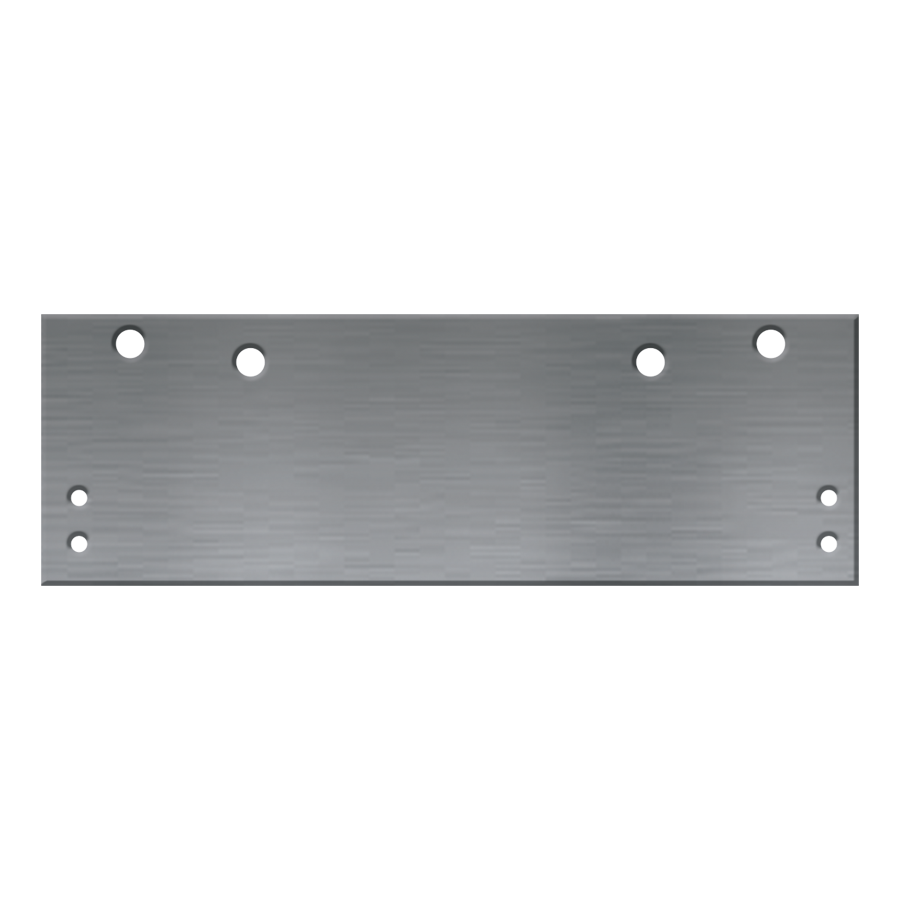

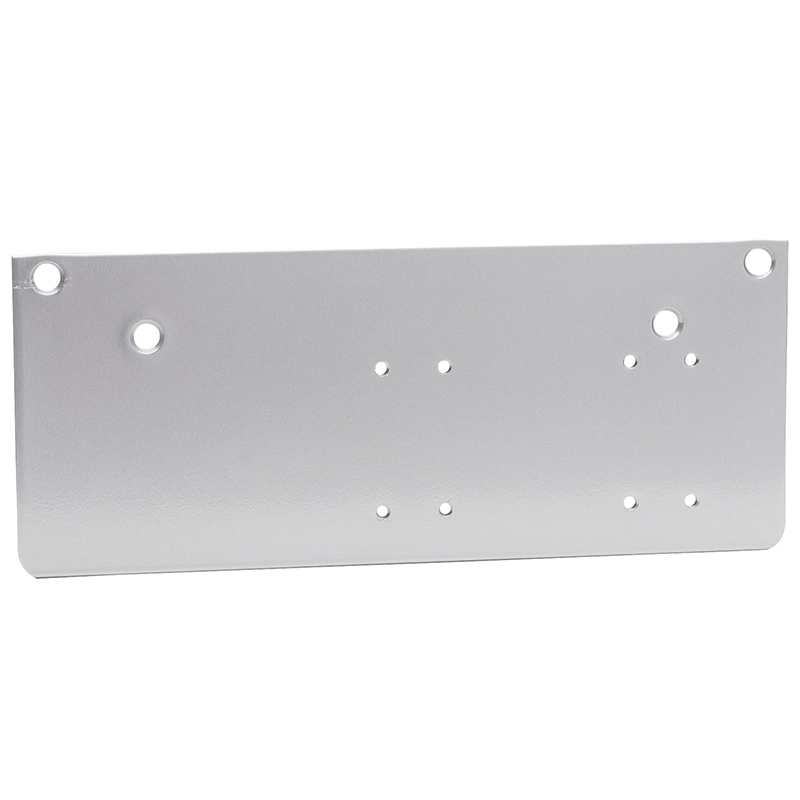

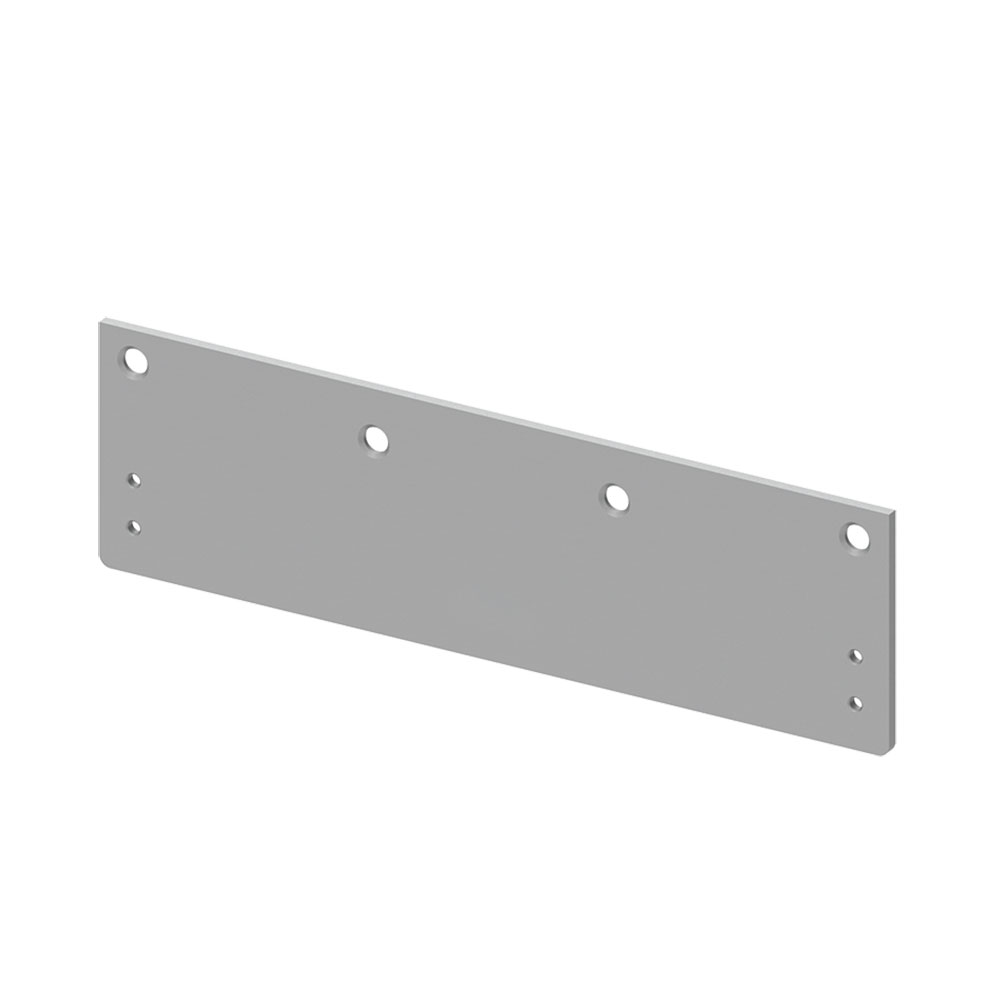

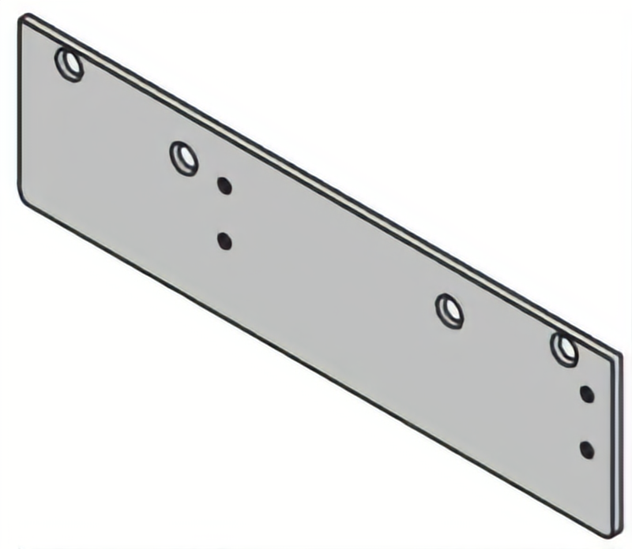

LCN 1450-18PA-AL Door Closer Mounting Plates

Your Price: $74.50

Retail Price:$97.00

Your Savings:$22.50(23%)

Drop Plate, Parallel Arm Mount with Narrow Top Rail, Aluminum

Part Number : LCN_145018PAAL

Availability: 137 In Stock

Quantity

LCN 1450-18PA-AL Door Closer Mounting Plates

The 18PA is a parallel arm drop plate.

Designed for frequent use in low-abusive traffic areas
Excellent choice for aftermarket replacements, aluminum storefronts, to new construction
For aluminum, hollow metal, or wood swinging doors and frames
Can be used with hinge or pivot mounted door
Mounts on a 1-3/4" transom without adapter plates
Adapter plates and other installation accessories available for unusual conditions
Many LCN Parts or Components Have Casting or Forging Numbers Stamped or Raised on the Surface
Many Parts are Series Specific, Specify When Ordering
Many Parts are Finished, Specify When Ordering
For Use with 1450 Series
Drop Plates are Used for Mounting on a Narrow Space Top Jamb

Features

With full cover, use plate 1450-18PAFC
Required for parallel arm mounting where top rail is less than 4-3⁄8" (111mm), measured from the stop
Requires 1-3⁄4" (44 mm) minimum top rail

Alternate Codes: 1450-18PA-AL, 1450-18PAAL, 145018PAAL, LCN1450-18PAAL

Baa Qualified: No

Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts

Closer Size: Adj. 1 to 6

Cold Weather Fluid: Yes

Finish: Aluminum

Finish Code: 689 (AL)

Finish Description: Aluminum Painted

Hand: Non-Handed

Hazardous Material: NO

Hold Open: No

Manufacturer Warranty: Limited 25 Year Warranty

Material: Cast Aluminum

No Of Inners: 1

Order_ Qty: 1

Series: 1450 Series

Subcategory: Closer Parts

Subtype: Door Closer Mounting Plates

Type: DOOR CLOSERS

Ul Listing Type: UL 10C Rated
