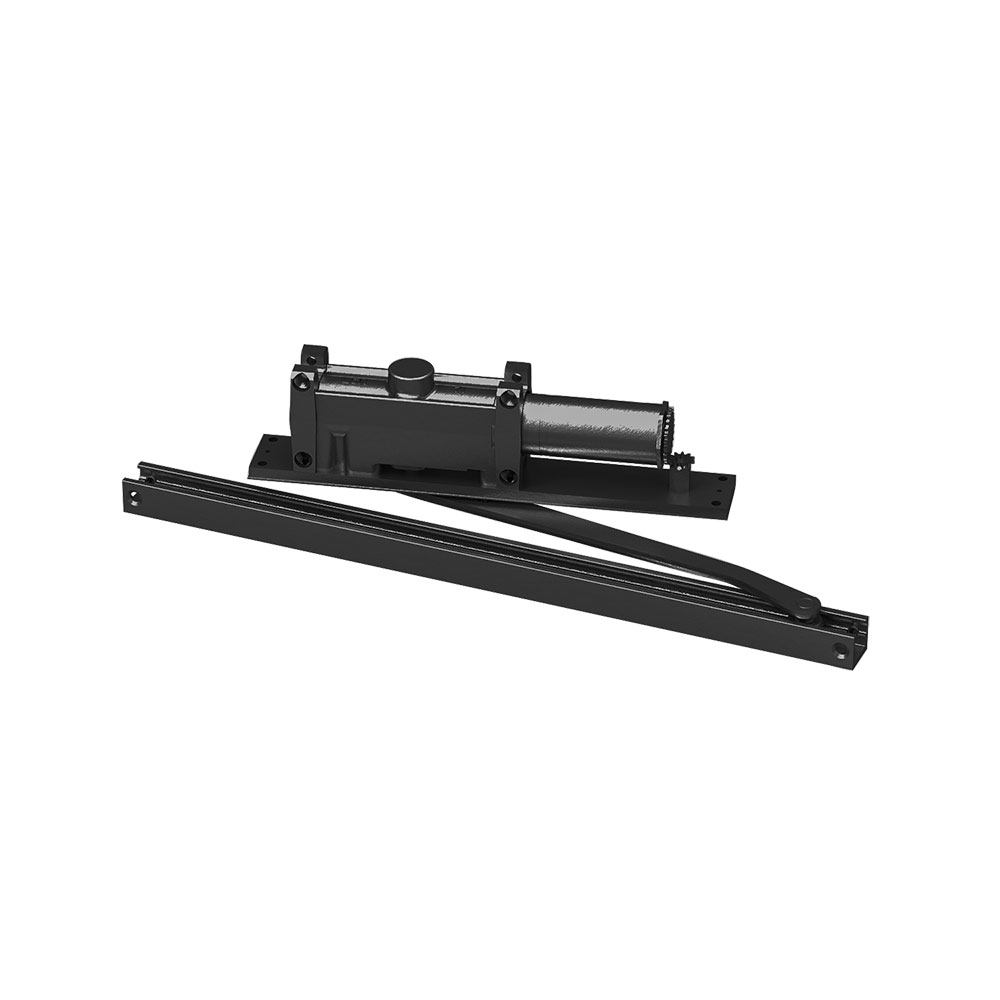

LCN 2014-STD LH 693 Overhead Concealed Closer - GLBLK

LCN 2014-STD LH 693 Overhead Concealed Closer GLBLK offers a Grade 1 standard single lever design, ensuring robust performance for both commercial and residential applications. This heavy-duty closer features a hydraulic slide track mounted in the header, delivering a seamless experience with its smooth, quiet door control. The adjustable backcheck provides enhanced safety by controlling the door’s movement, while the standard slide track arm allows for a full 180-degree swing. Designed for versatility, the 2010 Series accommodates various door types, including aluminum, hollow metal, and wood. It is handed for left-swinging doors and is suitable for doors up to 5’0" in height for interiors and 4’0" for exteriors. The closer meets ADA requirements, making it ideal for accessibility-focused installations. With a sleek black painted finish, it can blend seamlessly into any architectural design. Installation is straightforward, featuring a standard arm, metal finish plate, and a complete screw pack for wood and machine applications. Additionally, the optional SRI primer ensures durability in corrosive environments. Backed by a 15-year limited warranty, the LCN 2014-STD LH 693 is an investment in quality and reliability for any building professional looking for a concealed overhead closer.

Overhead Conceal Closer GLBLK

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm Standard with 180 Deg. Swing, Adjustable Backcheck, Size 4, Black Painted Finish, Left Hand

The Concealed 2010 Series is a Heavy Duty Closer Designed to Provide Complete Concealment. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control and the Choice of Finishes and Track Functions Meet Virtually All Architectural Requirements.

The 2010 Series by LCN is a concealed heavy duty closer.

The 2010 Series is designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2010 series closer shipped with standard arm, standard track, metal finish plate and wood and machine screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Handed for right or left swinging doors
• For aluminum, hollow metal, or wood, doors and frames
• Aluminum frame requires minimum 4” x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate
• Optional SRI primer for installations in corrosive conditions
