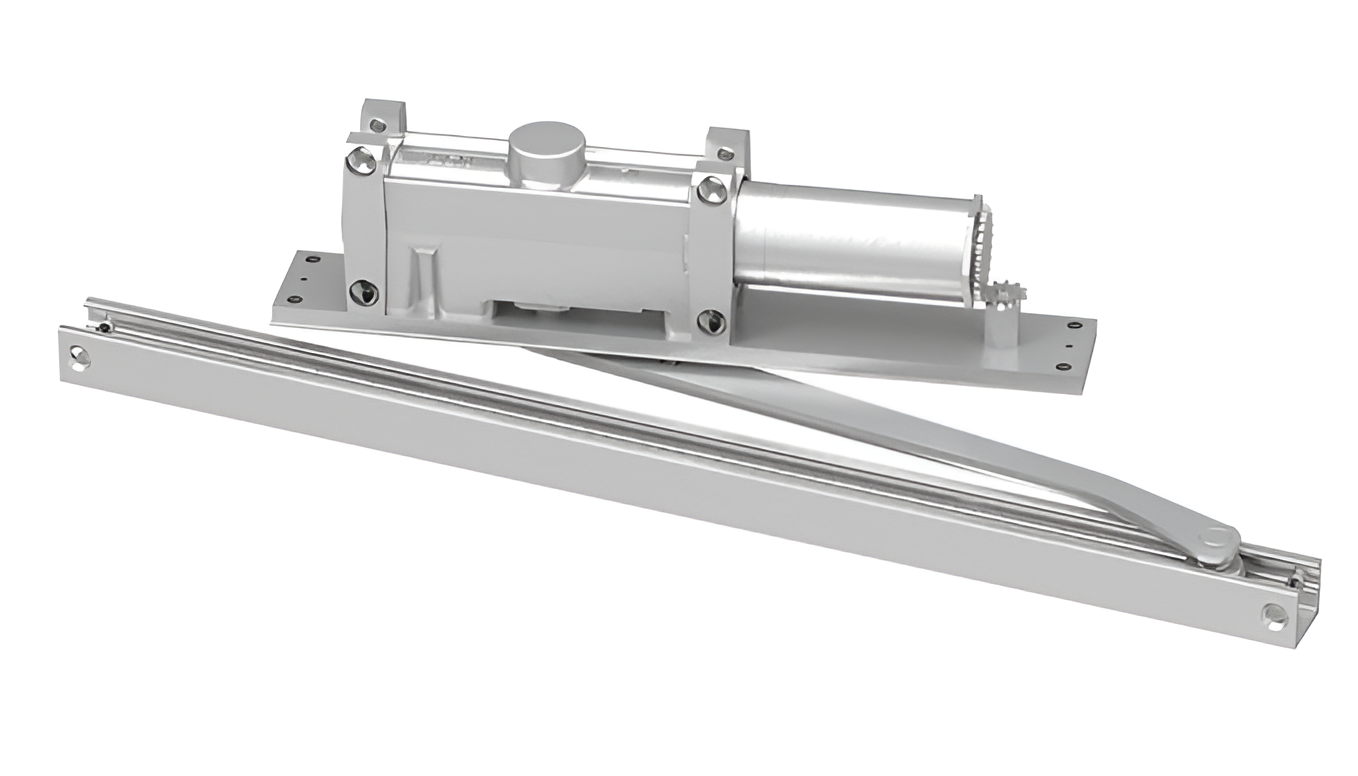

LCN 2014-STDTRKARM-AL-RH Heavy Duty Concealed Closer, Right Hand, Grade 1, ADA Size 4, Aluminum Powder Coat

LCN Closers 2014-STDTRKARM-AL-RH Concealed in Frame Heavy Duty Closer combines robust design with functionality, making it ideal for institutional and high-traffic environments. This right-hand standard track and arm closer is engineered to meet Grade 1 standards, ensuring durability and reliability. Its ADA Size 4 compliance provides reduced opening force, making it accessible for all users. Crafted from a cast iron body and featuring a high-strength cast iron cylinder, this closer is built to withstand the rigors of daily use. The 1-1/2" diameter piston and full-complement bearing enhance performance, while all-weather fluid ensures smooth operation in varying conditions. The adjustable spring sizes from 1 to 6 accommodate a range of door weights and sizes, including interior doors up to 5’0" and exterior doors up to 4’0". Installation is straightforward with a concealed mounting design that fits seamlessly into aluminum frames. This product is UL and cUL listed for self-closing doors without hold-open and is backed by a 15-year warranty, reflecting its long-lasting quality. Available in an aluminum powder coat finish, the LCN 2014-STDTRKARM-AL-RH is a reliable choice for both wood and hollow metal doors, offering a blend of aesthetics and functionality for any project.

Concealed in Frame Heavy Duty Closer, Right Hand Standard Track and Arm, Grade 1, ADA Size 4, 689/AL Aluminum Powder Coat

The 2010 and 5010 series are heavy-duty closers that are concealed and designed for institutional, high-traffic and other installations exposed to weather or abuse. The 2010 series is concealed in the door frame with the track concealed in the door. The 5010 series is concealed in the frame with the double-lever arm exposed. Both the 2010 and 5010 Series meet ANSI/BHMA A156.4 grade 1 standards and the American Disabilities Act (ADA) reduced opening force requirements. The single-lever arm and roller assembly for the 2010 Series and the double-lever arm for the 5010 series provide smooth, quiet door control and the choice of finishes, while the track, cylinder and arm functions meet virtually all architectural requirements. The 2010 and 5010 series are ideal for interior and exterior aluminum, hollow metal and wood doors and frames. Both series feature separate regulation of general closing speed and latching speed. Both the 2010 and 5010 series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year warranty. Materials for both series include a forged steel main arm, high strength cast iron cylinder, one-piece forged steel piston, all-weather fluid, tamper-resistant regulating screws and a full-complement, low-friction bearing.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/2" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Handed design for right- and left-swinging doors
• Wood and machine screw pack
• Adjustable spring sizes 1-6

Specifications:

• Sized cylinders for interior doors to 5’0" and exterior doors to 4’0"
• Meets ADA requirements
• UL and cUL listed for self-closing doors without hold-open
• Tested and certified under ANSI/BHMA A156.4 Grade 1
• For hollow metal or wood doors and frames
• Certifications: Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-6
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in frame); aluminum frame requires minimum 4" x 4" (102 mm) tube
• Arms: Standard arm and track

Concealed Mounting:

• Butt hinges: Should not exceed 5" (127 mm) in width
• Auxiliary stop:
• Recommended where a door cannot swing 180°
• Optional track bumper assembly assists back check in cushioning the opening swing of the door (not intended to replace an auxiliary stop)
• Top rail:
• 1-3⁄8" (35 mm) mortise required
• With fire shield, 1-13⁄32" (36 mm) mortise required
• 5⁄16" (8 mm) cutout required at top of the door, stop face only
• Door thickness: 1-3⁄4" (44 mm) minimum
• Maximum opening:
• Butt hinge template allows 180°, trim permitting
• Limited to 110° when optional bumper is installed
• Adjustable hold open points from 85° to 110°, with hold open track (H)
• Offset pivot template allows 110°, trim permitting
• Limited to 95° when optional bumper is installed
• Adjustable hold open points from 75° to 95°, with Hold open track (H)
• Center pivot template allows 120°, trim permitting
• Limited to 95° when optional bumper is installed
• Adjustable hold open points from 75° to95°, with hold open track (H)

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
