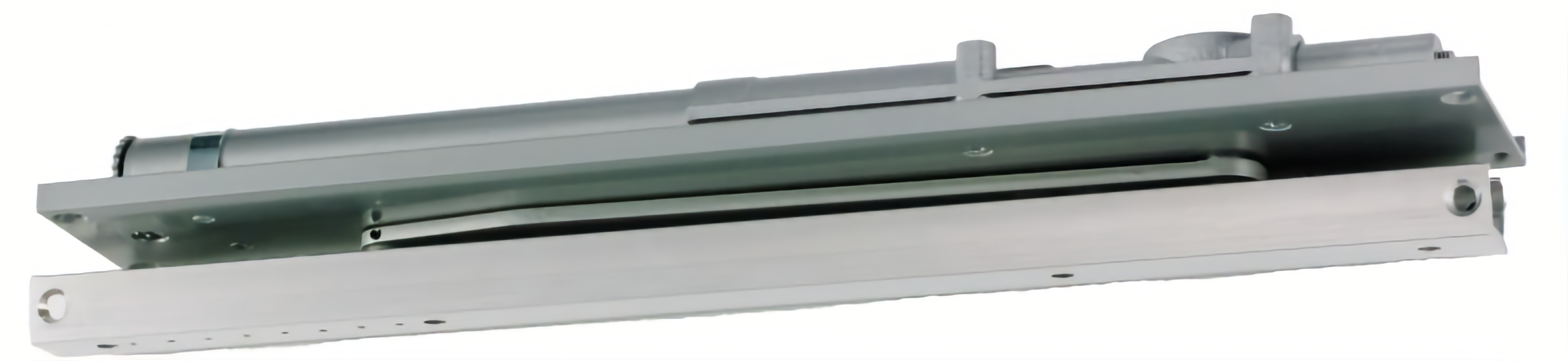

LCN 2033-STD-AL-RH Narrow Concealed Heavy Duty Closer, Right Hand, Grade 1, ADA Size 3, Aluminum

LCN Closers 2033-STD-AL-RH Narrow Overhead Concealed Heavy Duty Closer is engineered for reliability and performance in demanding environments. This right-hand standard track arm closer is part of the 2030 series and is designed to fit seamlessly within a narrow 1-3/4" aluminum transom, making it ideal for modern architectural applications. It meets ANSI/BHMA A156.4 Grade 1 and ADA requirements, ensuring compliance with accessibility standards. Constructed with a durable cast iron cylinder and a full-complement bearing, the 2033-STD-AL-RH offers smooth and quiet door operation. The forged steel arm enhances its strength and durability, while adjustable spring sizes (1-5) allow for precise control of closing and latching speeds. This closer also features all-weather fluid, ensuring reliable performance in varied conditions. The unit includes a comprehensive wood and metal screw pack for easy installation, and its sleek aluminum powder coat finish (689/AL) provides both aesthetic appeal and durability. With UL and cUL certification for self-closing doors and a 15-year limited warranty, the LCN Closers 2033-STD-AL-RH guarantees long-lasting security for your spaces. Choose this closer for a blend of functionality and elegance in your door hardware solutions.

Narrow Overhead Concealed Heavy Duty Closer, Right Hand Standard Track Arm, Grade 1, ADA Size 3, Wood Metal WMS Screw Pack, 689/AL Aluminum Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
