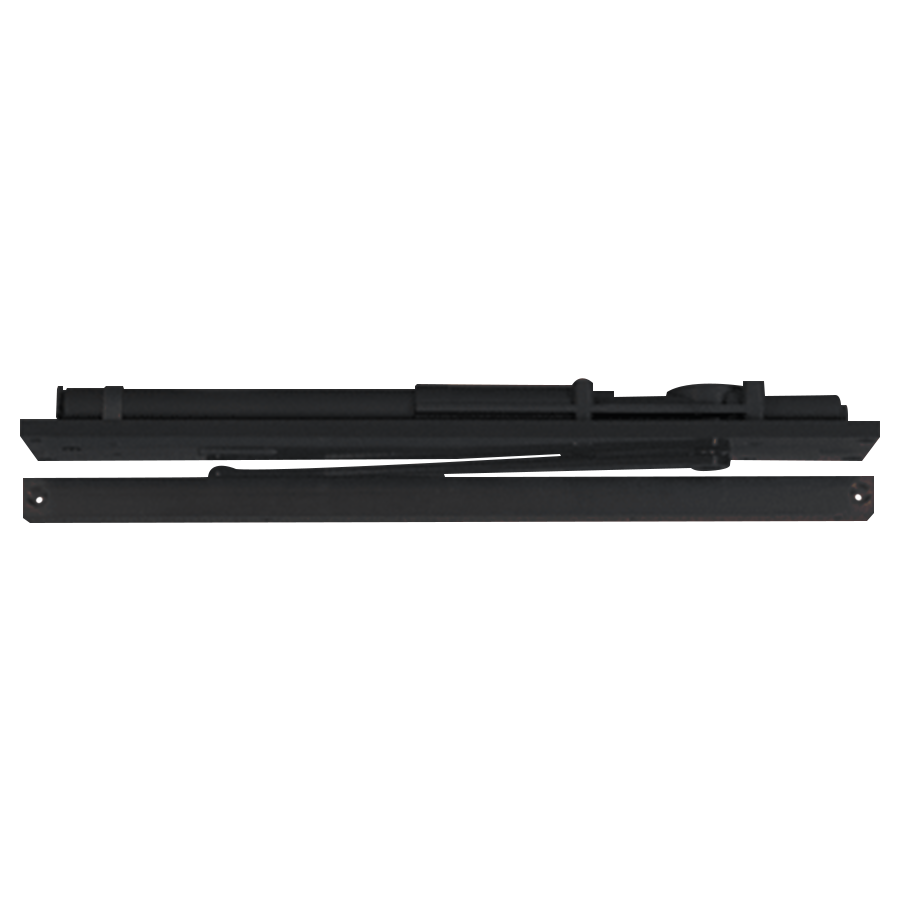

LCN 2033-STD-DKBRZ-LH Narrow Concealed Heavy Duty Door Closer, Left Hand, Size 3, Dark Bronze

LCN Closers 2033-STD-DKBRZ-LH Narrow Overhead Concealed Heavy Duty Door Closer offers an exceptional blend of functionality and aesthetics for your door control needs. Designed specifically for concealed installation in narrow aluminum transoms, this Grade 1 closer meets ANSI/BHMA A156.4 standards and adheres to the American Disabilities Act (ADA) requirements, ensuring accessibility. Constructed with a robust cast iron body and featuring a 1-1/8" diameter forged steel piston, the 2033 closer boasts superior durability and performance. The full-complement bearing facilitates smooth, quiet operation, while the patented design allows for separate adjustment of general closing and latching speeds. With its handed design, the left-hand model ensures seamless integration into your existing architecture. This model is UL and cUL listed for self-closing doors without hold-open functionality, providing peace of mind in various settings. The closer is equipped with all-weather fluid, enabling reliable performance in diverse climates. Additionally, it comes with a 15-year limited warranty, underscoring its long-term reliability. Available in a striking dark bronze powder coat finish, the LCN 2033-STD-DKBRZ-LH is not only functional but also enhances the visual appeal of your doorway, making it a perfect choice for both residential and commercial applications.

Narrow Overhead Concealed Heavy Duty Door Closer, Left Hand, Standard Track Arm, Size 3, Grade 1, WMS Wood and Machine Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
