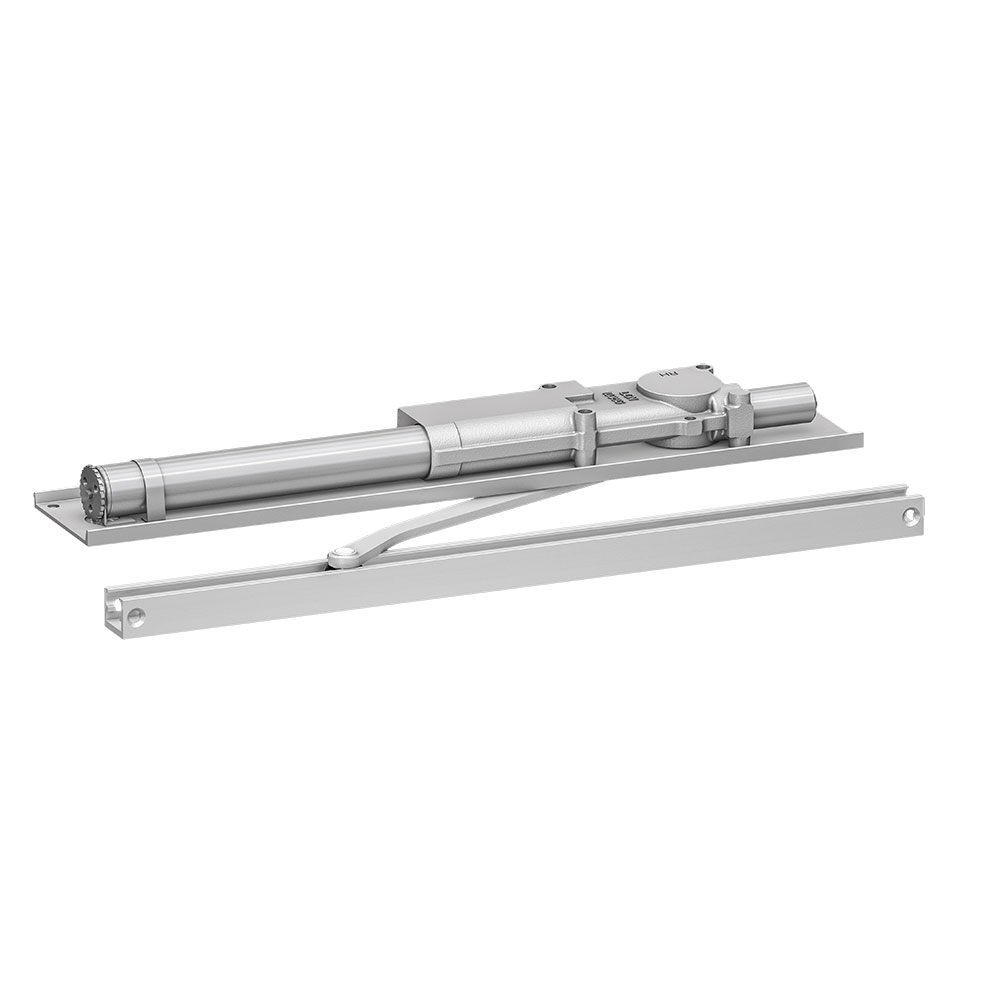

LCN 2033-STD LH 651 Concealed Overhead Closer US26

LCN 2033-STD LH 651 Overhead Concealed Closer US26 is a Grade 1 standard single lever overhead concealed closer designed for durability and seamless functionality. This hydraulic slide track model is specifically crafted to fit in narrow aluminum transoms, requiring a minimum clearance of 1-3/4". With a 180-degree swing, it ensures smooth and quiet door control, making it an ideal choice for both commercial and residential applications. The single lever arm and roller assembly enhance its performance, while the adjustable backcheck provides added security and control. Sized for interior doors up to 4'6" and exterior doors up to 3'6", the LCN 2033 accommodates various door configurations. It is left-handed and designed to meet ADA requirements, ensuring accessibility for all users. Available in a polished chrome finish, this closer not only blends seamlessly with architectural aesthetics but can also be customized with optional powder coat finishes. The installation process is straightforward, with all necessary mounting hardware included. With a robust 15-year limited warranty, the LCN 2033-STD exemplifies reliability and excellence in concealed door hardware.

Overhead Concealed Closer US26

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Adjustable Backcheck, Size 3, Bright Chrome Finish, Left-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate
