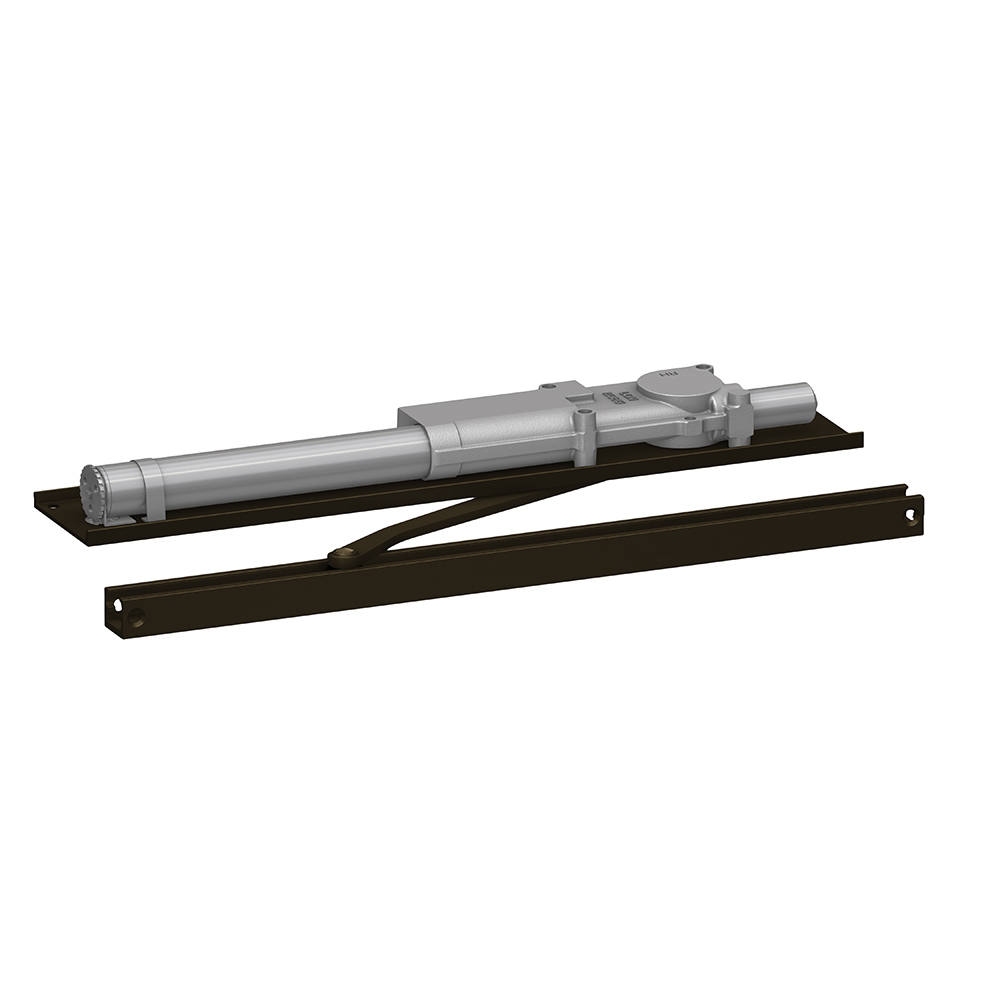

LCN 2033-STD RH 695 Concealed Overhead Closer DKBRZ

LCN 2033-STD RH 695 Overhead Conceal Closer DKBRZ is a robust Grade 1 standard single lever overhead concealed closer designed to provide reliable performance and aesthetic appeal. This heavy-duty closer integrates seamlessly into narrow aluminum transoms with a minimum of 1-3/4" clearance, making it ideal for various commercial applications. Equipped with a hydraulic slide track arm, the LCN 2033 ensures smooth and quiet door operation, accommodating a full 180-degree swing. Its size 3 cylinder is perfectly suited for interior doors up to 4’6" and exterior doors up to 3’6", while the adjustable backcheck helps to prevent damage to doors and frames during operation. The closer is available in a dark bronze painted finish (695), which complements a variety of architectural styles. Additionally, it meets ADA requirements, ensuring accessibility for all users. Installation is straightforward, as the unit comes with a standard arm, track, and mounting hardware, making it a practical choice for building professionals. With a limited 15-year warranty and the option for custom powder coat finishes, the LCN 2033-STD is a reliable and stylish solution for your door control needs.

Overhead Conceal Closer DKBRZ

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Adjustable Backcheck, Size 3, Dark Bronze Painted Finish, Right-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Resources

• 2030 Series Concealed Closers Cut Sheet
• LCN 2030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
