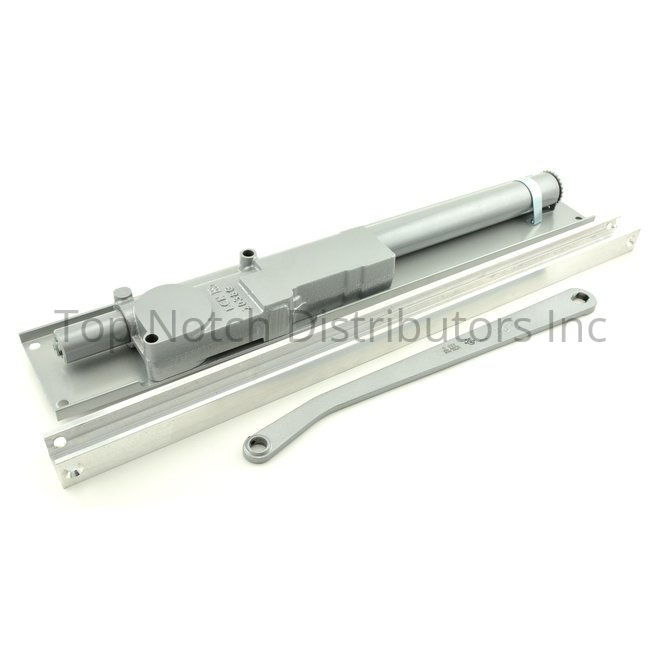

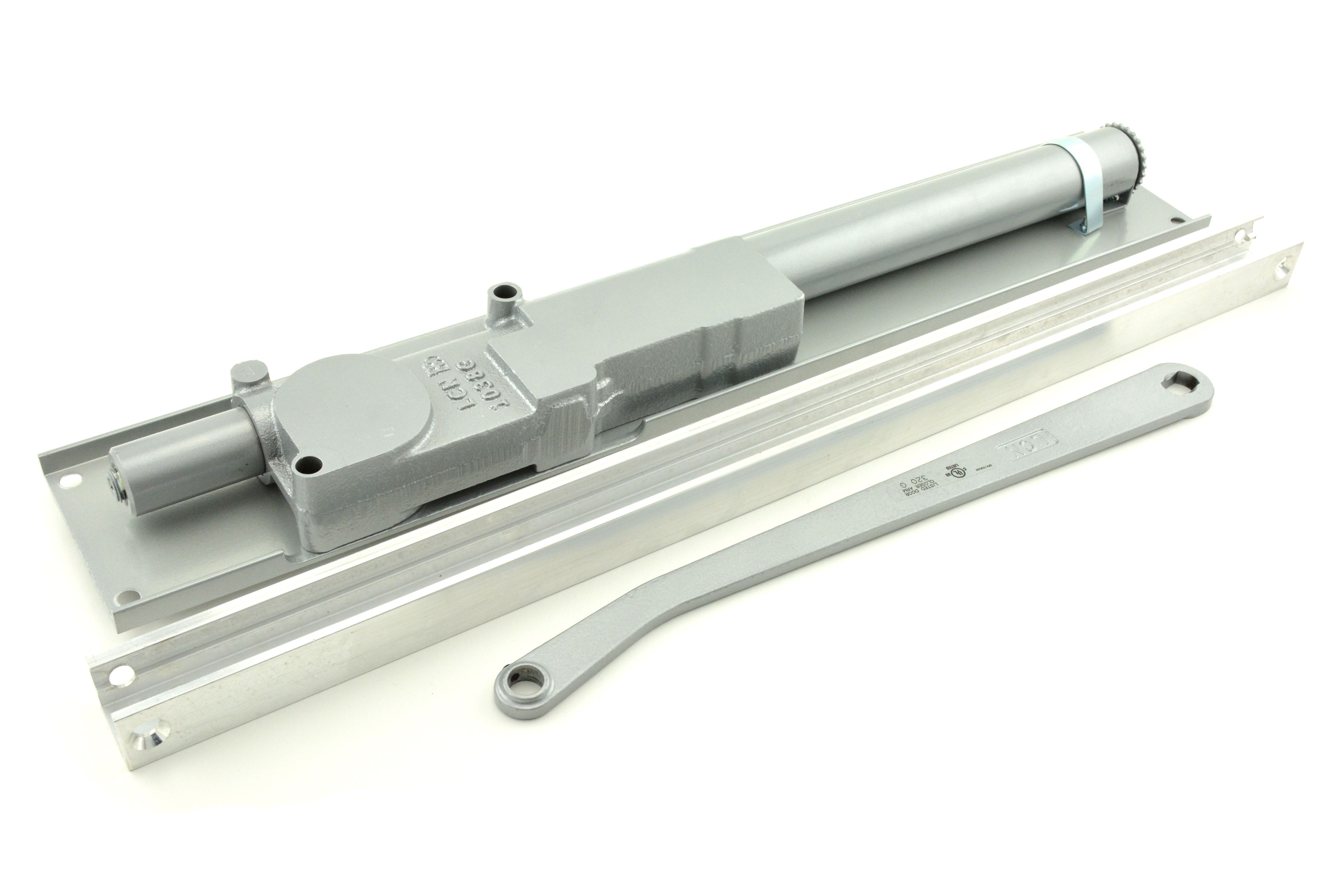

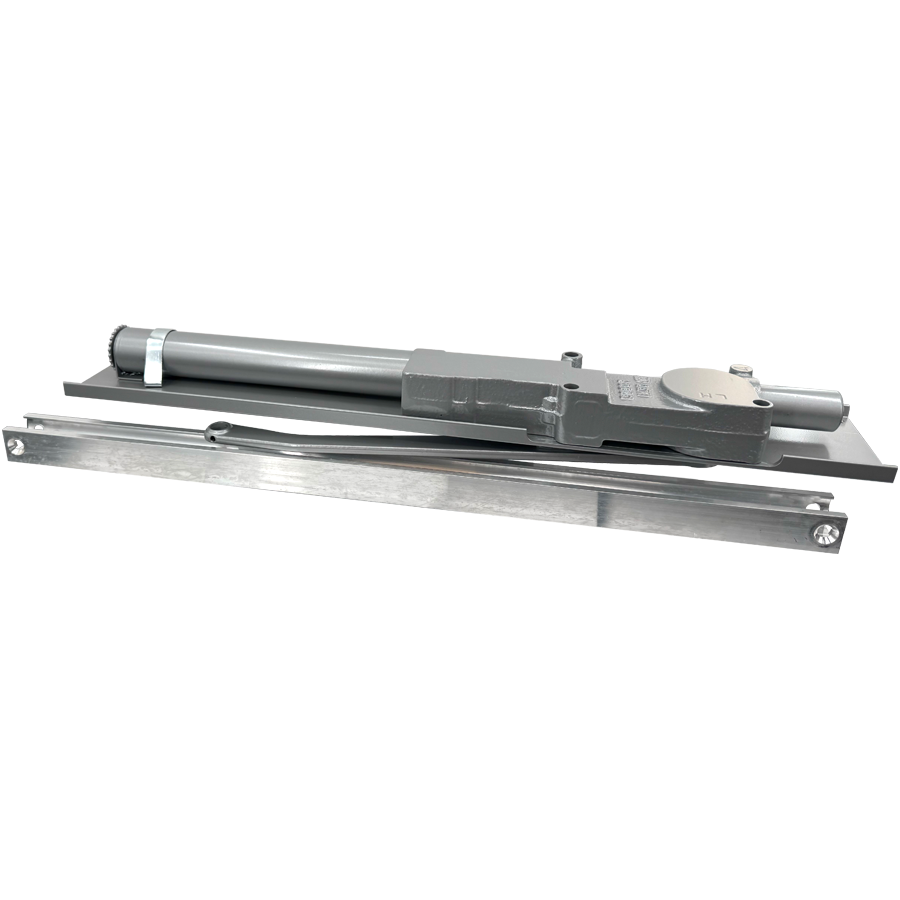

LCN 2034-STD-AL-RH Narrow Concealed Heavy Duty Closer, Right Hand, Grade 1, ADA Size 4, Aluminum

LCN Closers 2034-STD-AL-RH Narrow Overhead Concealed Heavy Duty Closer delivers exceptional performance in a sleek, concealed design suited for both aluminum and wood applications. Engineered for durability, this Grade 1 closer meets ANSI/BHMA A156.4 standards and complies with the Americans with Disabilities Act (ADA) reduced opening force requirements. The 2034 model features a right-hand standard track arm and is designed to fit within a minimum 1-3/4" aluminum transom, ensuring a clean aesthetic without sacrificing functionality. Constructed with a robust cast iron cylinder and a high-efficiency, full-complement bearing, it offers smooth and quiet door operation. The adjustable spring size (rated 4) allows for customizable closing force, catering to various environments. This closer is UL and cUL listed for self-closing doors without hold-open features, providing peace of mind in high-traffic areas. Enhanced with all-weather fluid, it is built to withstand diverse conditions, making it an ideal choice for both commercial and residential installations. Backed by a generous 15-year warranty, the LCN 2034-STD-AL-RH combines quality, reliability, and performance for your door control needs. Choose this durable closer for effortless operation and stylish concealment.

Narrow Overhead Concealed Heavy Duty Closer, Right Hand Standard Track Arm, Grade 1, ADA Size 4, Wood Metal WMS Screw Pack, 689/AL Aluminum Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass

• Sized Cylinders for Interior Doors to 4' 6" and Exterior Doors to 3' 6"
• For Aluminum, Hollow Metal, or Wood Doors and Frames
• Closers to Meet ADA Requirements
• Aluminum Frame Requires Minimum 1-3/4" x 4" Tube
• Handed for Left or Right Swinging Doors
