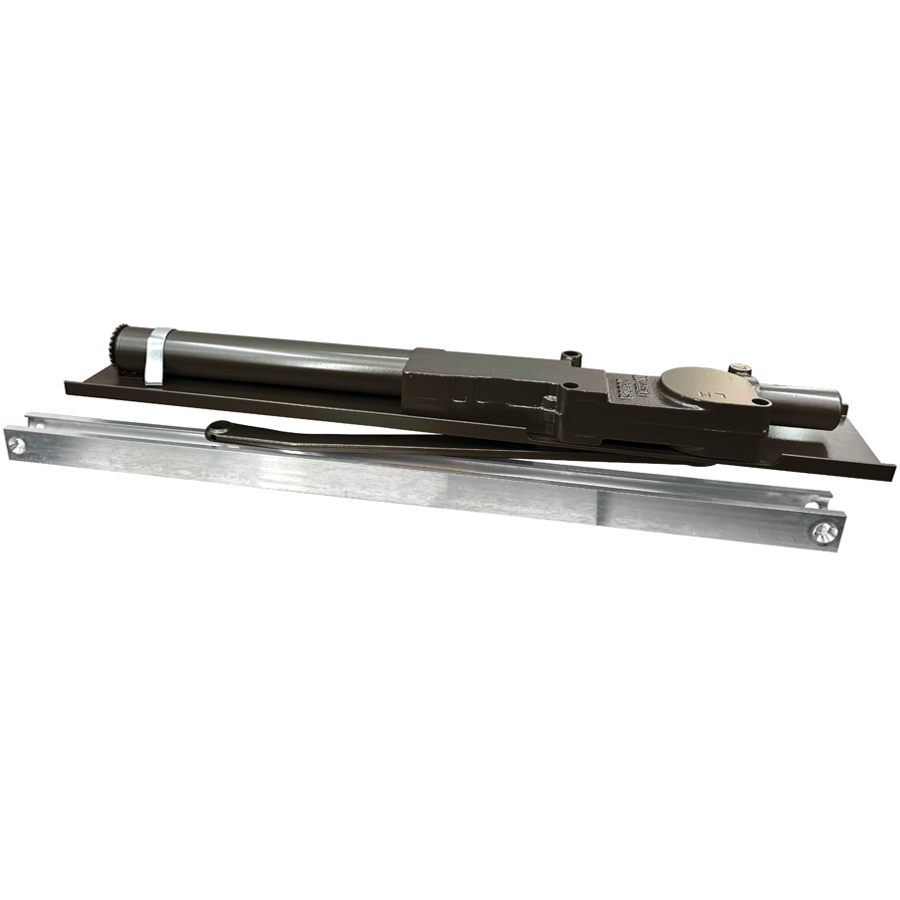

LCN 2034-STD-DKBRZ-RH Narrow Concealed Heavy Duty Door Closer, Right Hand, Size 4, Dark Bronze

LCN Closers 2034-STD-DKBRZ-RH Narrow Overhead Concealed Heavy Duty Door Closer is engineered for optimal performance and aesthetic appeal in a compact design. This right-handed model features a standard track arm and is part of the Grade 1 certified series, ensuring compliance with ANSI/BHMA A156.4 standards and the American Disabilities Act (ADA) requirements for reduced opening force. Crafted from a cast iron body with a 1-1/8" diameter piston, the LCN 2034 offers durability and smooth operation, thanks to its full-complement bearing and weather-resistant fluid. With a size adjustment range of 1-5, this closer is versatile enough to accommodate various door applications, making it ideal for both residential and commercial settings. The concealed mounting design fits neatly within a minimum 1-3/4" aluminum transom, providing a tidy appearance without sacrificing performance. This model includes a wood and machine screw pack, facilitating easy installation. The dark bronze powder coat finish not only adds a touch of elegance but also enhances durability. With a 15-year limited warranty backing its quality, the LCN 2034-STD-DKBRZ-RH is a reliable choice for those seeking an efficient and stylish solution for their door control needs.

Narrow Overhead Concealed Heavy Duty Door Closer, Right Hand, Standard Track Arm, Size 4, Grade 1, WMS Wood and Machine Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass

Resources

• Cut Sheet
