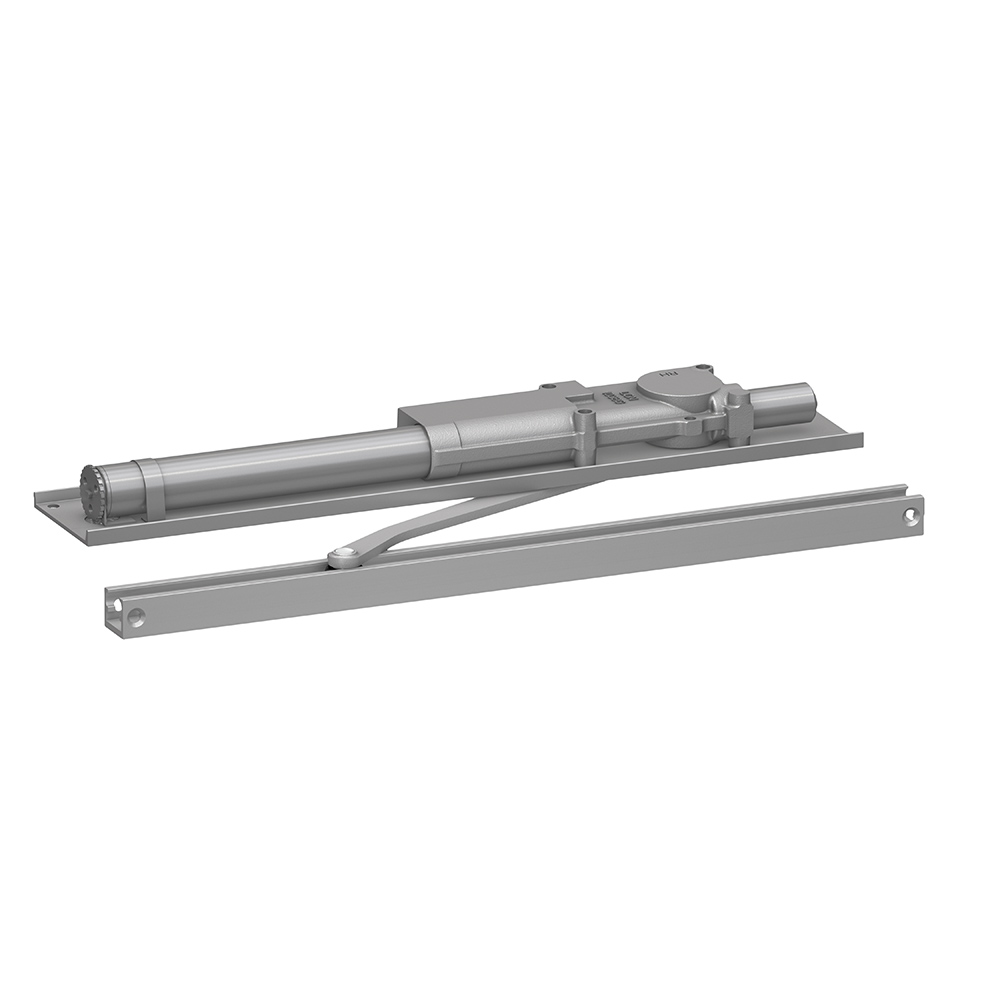

LCN 2034-STD LH 652 Overhead Concealed Closer US26D

LCN 2034-STD LH 652 Overhead Conceal Closer US26D offers a robust solution for your door control needs. This Grade 1 Standard Single Lever Overhead Concealed Closer is designed for durability and performance, featuring a hydraulic slide track mounted in the header, ensuring smooth operation with a 180-degree swing. Its left-handed configuration makes it ideal for specific applications, while the sleek satin chrome finish adds a contemporary touch. Engineered to fit narrow aluminum transoms with a minimum clearance of 1-3/4 inches, the LCN 2030 Series PACER incorporates a single lever arm and roller assembly, providing exceptional control that is both quiet and reliable. This closer supports door sizes up to 4'6" for interior use and 3'6" for exterior applications, meeting ADA requirements for accessibility. Installation is straightforward with the included standard arm, standard track, and mounting/finish plate. The closer is also available in standard or custom powder coat finishes, allowing you to match your architectural vision. With a limited warranty of 15 years, the LCN 2034-STD ensures long-lasting performance for commercial environments. Upgrade your door hardware with this high-quality concealed closer, designed for both functionality and style.

Overhead Conceal Closer US26D

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Size 4, Satin Chrome Finish, Left-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Resources

• 2030 Series Concealed Closers Cut Sheet
• LCN 2030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
