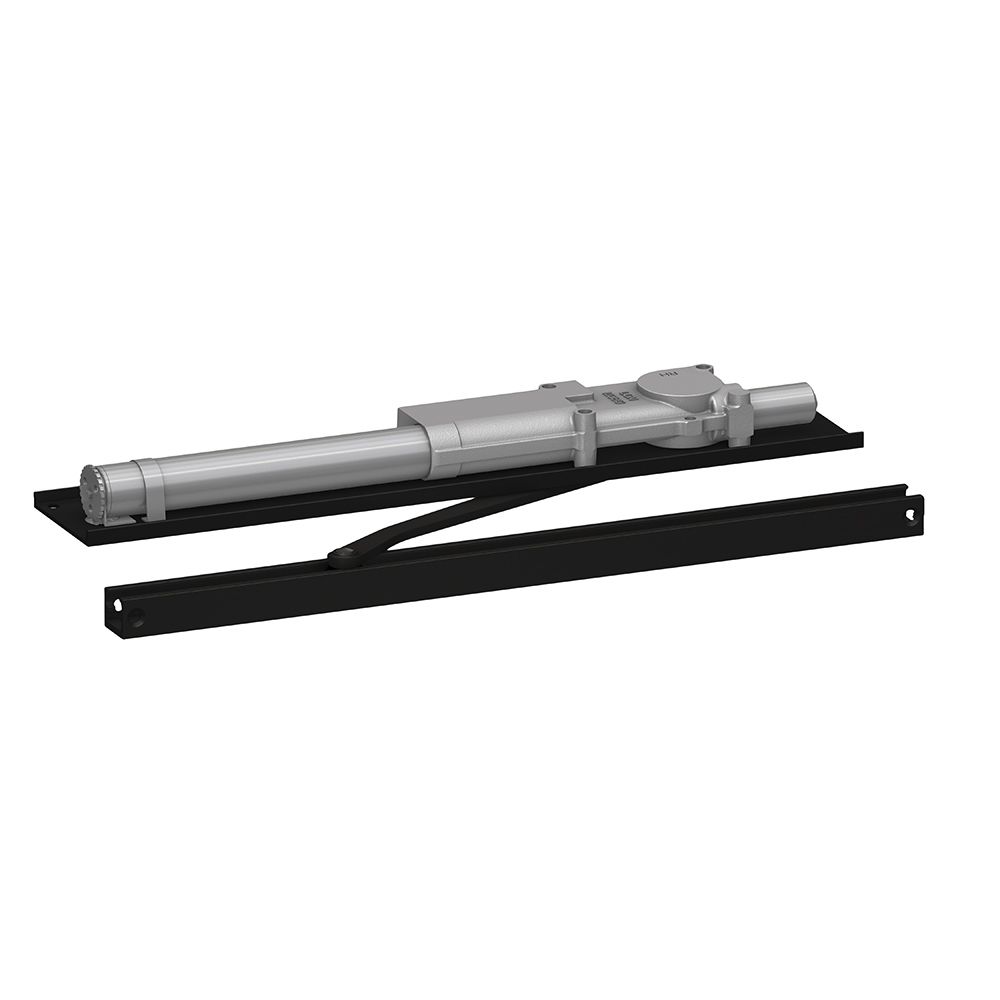

LCN 2035-BUMPER RH 693 Overhead Concealed Closer - GLBLK

LCN 2035-BUMPER RH 693 Overhead Concealed Closer GLBLK offers a robust solution for both commercial and residential applications. This Grade 1 standard single lever overhead concealed closer features a hydraulic slide track mounted in the header, ensuring smooth and quiet operation. Designed specifically for narrow aluminum transoms, it requires a minimum clearance of just 1-3/4 inches, making it ideal for tight spaces. With a size 5 rating and a right-handed configuration, the LCN 2035 delivers a full 180-degree swing, allowing for maximum accessibility. The single lever arm coupled with a roller assembly provides exceptional door control, while the adjustable back check ensures the door closes gently without slamming. This closer meets ADA requirements, making it a reliable choice for public spaces. Available with a black painted finish, this model not only blends seamlessly into modern designs but also offers optional custom powder coat finishes to suit various architectural styles. Installation is straightforward, with included mounting plates and a comprehensive screw pack for both wood and machine applications. Backed by a 15-year limited warranty, the LCN 2035-BUMPER is a durable and efficient solution for your door control needs.

Overhead Conceal Closer GLBLK

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm with Bumper, 180 Deg. Swing, Size 5, Black Painted Finish, Right-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4" aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Resources

• 2030 Series Concealed Closers Cut Sheet
• LCN 2030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
