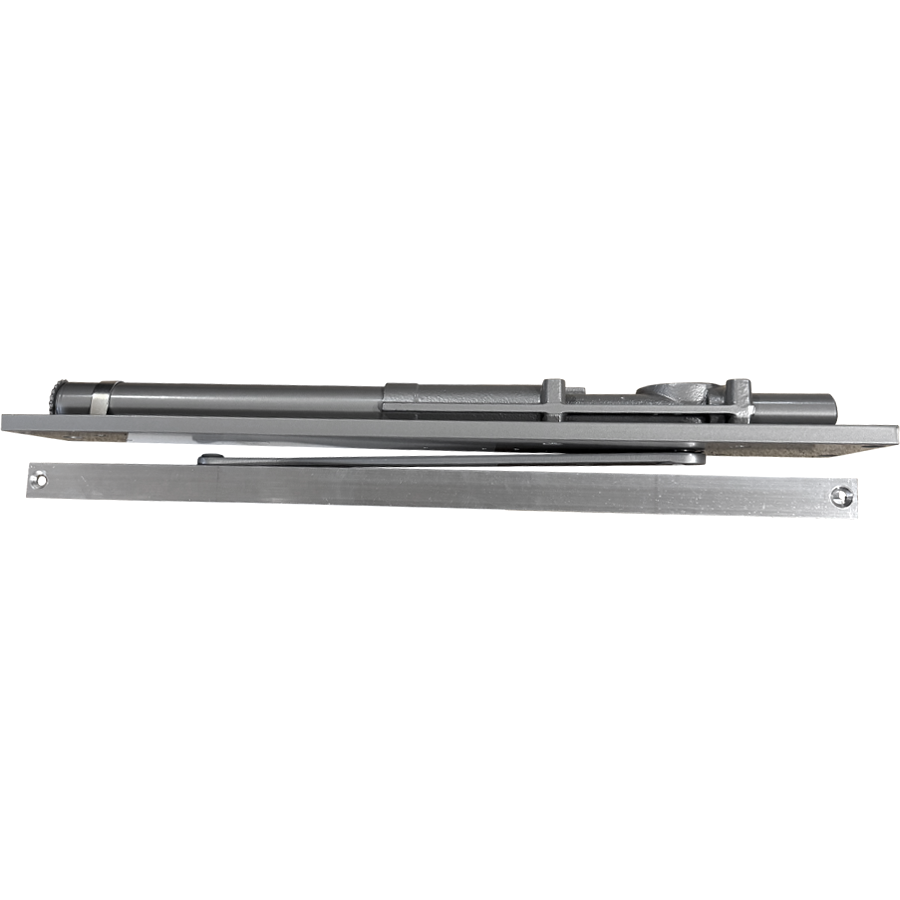

LCN 2035-STD-AL-RH Narrow Concealed Heavy Duty Closer, Right Hand, Grade 1, ADA Size 5, Aluminum

LCN Closers 2035-STD-AL-RH Narrow Overhead Concealed Heavy Duty Closer is engineered for seamless integration into your building's design while ensuring compliance with rigorous safety standards. This right-handed model features a standard track arm and is expertly crafted to fit within a narrow minimum 1-3/4" aluminum transom, making it an ideal choice for both wood and metal applications. Built to meet ANSI/BHMA A156.4 Grade 1 specifications, the 2035 closer is designed for durability and reliability. It boasts a cast iron cylinder, a robust 1-1/8" diameter piston, and a full-complement bearing that ensures smooth and quiet door operation. The all-weather fluid provides optimal performance in varying climates, while the adjustable spring sizes (1-5) allow for tailored closing force to accommodate different door weights. This model is UL and cUL listed for self-closing doors without hold-open, ensuring it meets safety and accessibility standards, including ADA requirements. Backed by a 15-year limited warranty, the LCN 2035-STD-AL-RH not only promises longevity but also peace of mind. Finished in an aluminum powder coat, it perfectly complements modern architectural aesthetics, making it a reliable choice for any building professional or discerning homeowner.

Narrow Overhead Concealed Heavy Duty Closer, Right Hand Standard Track Arm, Grade 1, ADA Size 5, Wood Metal WMS Screw Pack, 689/AL Aluminum Powder Coat

The heavy-duty 2030/5030/6030 series Pacer closers are designed for concealment in a narrow minimum 1-3/4" aluminum transom, meeting ANSI/BHMA A156.4 grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 series, a forged steel double-lever arm for the 5030 series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

Features:

• Cast iron cylinder
• Full-complement bearing
• 1-1/8" diameter piston
• All-weather fluid
• Forged steel arm
• 15-year warranty
• Designed to fit in a narrow header
• 2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
• 2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 1-5
• Fasteners: Wood and machine screws (WMS)
• Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4" (102) mm) tube

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
