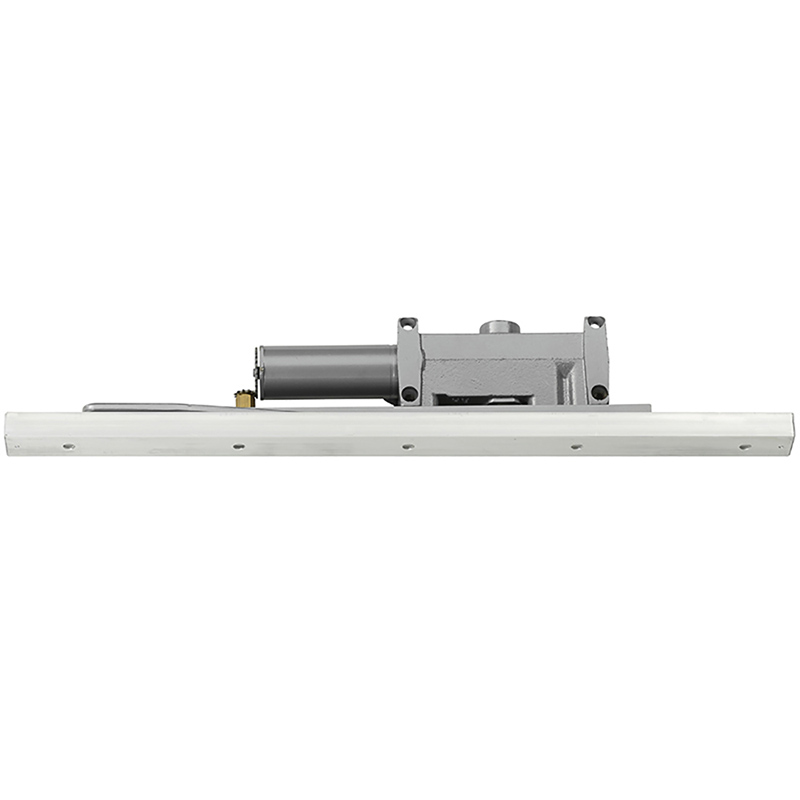

LCN 2213-STD RH 689 High Security Overhead Closer AL

LCN 2213-STD RH 689 High Security OH Closer AL offers a robust solution for high-traffic environments, ensuring both security and durability. Designed as a concealed heavy-duty overhead closer, this model features complete concealment to deter tampering and vandalism, making it ideal for correctional facilities, institutional settings, and areas prone to vandalism. Constructed with a forged steel single lever arm and heavy steel mounting plate, the 2213-STD is built to withstand rigorous use. This closer accommodates interior doors up to 4'6" and exterior doors up to 3'6", providing versatility for various applications. The concealed cylinder mounts within the head frame and is available in right-hand or left-hand configurations. The 2210 Series model comes standard with a security track (non-hold open), a two-piece metal cover plate, and a TORX machine screw pack for secure installation. It also includes an optional door position switch (DPS) and is UL listed for self-closing doors. With a limited 15-year warranty, this closer is tested and certified under ANSI A156.4 standards, ensuring reliable performance. Choose from standard or custom powder coat finishes, including an SRI primer for corrosive environments. The matte silver finish enhances its aesthetic appeal while providing a professional look.

High Security OH Closer AL

Standard Track Door Closer, Right Hand, Aluminum

The 2210 Series is a concealed heavy duty, high security track door closer featuring complete concealment wit special components to minimize tampering and vandalism. Forged steel single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional and other high traffic applications.

The 2210 Series is a heavy duty concealed closer made for high traffic applications.

The 2210 Series has a forged steel single lever arm and heavy steel mounting plates that are designed for correctional, vandal prone and institutional settings. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

• Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Concealed cylinder mounts in head frame, specify right or left swinging door
• Optional door position switch (DPS). Limited two year warranty.
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• The 2210 Series is UL listed for self-closing doors
• Tested and certified under ANSI A156.4
