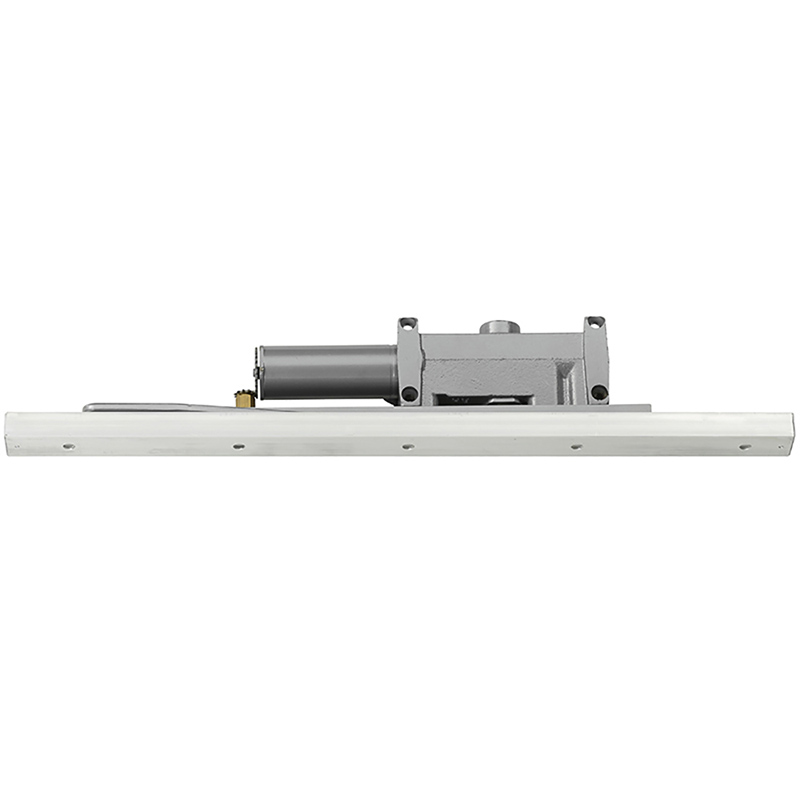

LCN 2213DPS-STD LH 689 High Security OH Closer AL

LCN 2213DPS-STD LH 689 High Security OH Closer AL is a standard track door closer designed for high-security applications. This concealed heavy-duty closer features a left-hand configuration and is constructed with specialized components to deter tampering and vandalism, making it ideal for correctional facilities and other high-traffic environments. The robust design includes a forged steel single lever arm and heavy steel mounting plate, ensuring durability and reliability in challenging settings. With a maximum door size of 4'6" for interior doors and 3'6" for exterior doors, the 2210 Series is versatile enough to meet various installation needs. The concealed cylinder mounts in the head frame, allowing for a clean aesthetic, and the optional door position switch enhances functionality. This closer comes with a two-piece metal cover plate, standard arm, and security track (non-hold-open), along with a TORX machine screw pack for easy installation. It is UL listed for self-closing doors and has been rigorously tested under ANSI A156.4 standards. Available in a matte silver finish (689/US28), the LCN 2213DPS-STD is a Grade 1 product that combines security with style, making it a reliable choice for commercial applications.

High Security OH Closer AL

Standard Track Door Closer, Door Position Switch, Left Hand, Aluminum

The 2210 Series is a concealed heavy duty, high security track door closer featuring complete concealment wit special components to minimize tampering and vandalism. Forged steel single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional and other high traffic applications.

The 2210 Series is a heavy duty concealed closer made for high traffic applications.

The 2210 Series has a forged steel single lever arm and heavy steel mounting plates that are designed for correctional, vandal prone and institutional settings. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

• Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Concealed cylinder mounts in head frame, specify right or left swinging door
• Optional door position switch (DPS). Limited two year warranty.
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• The 2210 Series is UL listed for self-closing doors
• Tested and certified under ANSI A156.4

Resources

• 2210 Series High Security Closers Cut Sheet
• LCN 2210 Series Installation Guide
• LCN 2210DPS Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN High Security Door Closer Series Product Guide
• LCN High Security Series Catalog
• Von Duprin Finishes Chart
