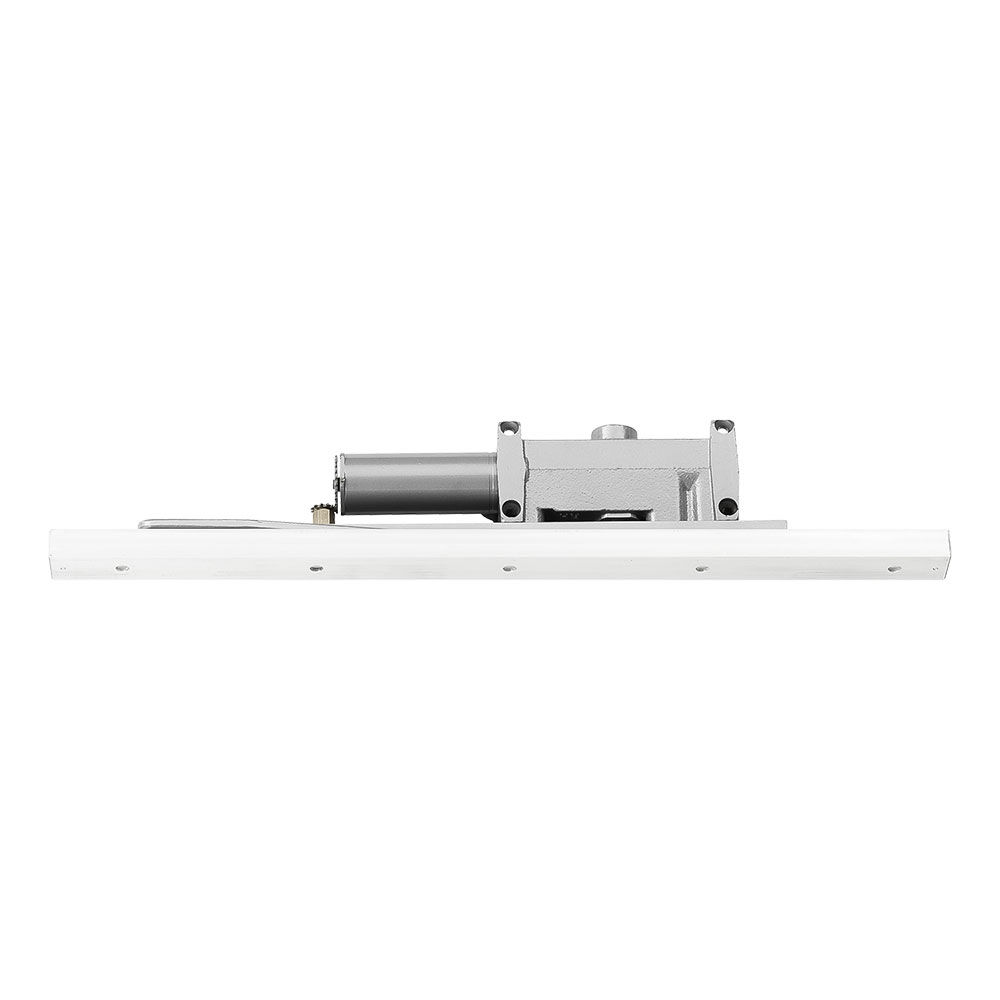

LCN 2214-STD LH 652 High Security OH Closer, US26D Finish

LCN 2214-STD LH 652 High Security OH Closer US26D offers exceptional durability and reliability for high-traffic environments. This Grade 1 overhead concealed closer is designed with a hydraulic slide track mounted in the header, providing a smooth and secure operation with a full 180-degree swing. The enhanced backcheck feature minimizes the risk of damage to the door and surrounding structures, making it ideal for correctional facilities, institutional settings, and other vandal-prone applications. Crafted from forged steel, the single lever arm and heavy-duty mounting plate are engineered to withstand rigorous use while deterring tampering. The metal cover adds an extra layer of protection and aesthetic appeal, available in a polished chrome finish. This model is left-handed and accommodates standard doors up to 4’6" for interiors and 3’6" for exteriors. The LCN 2210 Series is UL listed for self-closing doors and meets ANSI A156.4 standards, ensuring quality and safety. With options for custom powder-coated finishes and an optional door position switch (DPS), this closer provides versatile solutions tailored to your needs. Backed by a limited 15-year warranty, the LCN 2214-STD is a smart investment for any commercial space requiring high security and performance.

High Security OH Closer US26D

Grade 1 High Security Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Security Track with 180 Deg. Swing, Enhanced Backcheck, Metal Cover, Size 4, Bright Chrome Plated Finish, Left Hand

The Concealed 2210 Series, Heavy Duty, High Security Track Closer Features Complete Concealment with Special Components to Minimize Tampering and Vandalism. Forged Steel, Single Lever Arm and Heavy Steel Mounting Plate are Designed for Correctional, Vandal Prone, Institutional, and Other High Traffic Applications. A Choice of Finishes and Cylinder Functions Meet Correctional and Vandal Resistant Requirements.

The 2210 Series is a heavy duty concealed closer made for high traffic applications.

The 2210 Series has a forged steel single lever arm and heavy steel mounting plates that are designed for correctional, vandal prone and institutional settings. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

• Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Concealed cylinder mounts in head frame, specify right or left swinging door
• Optional door position switch (DPS). Limited two year warranty.
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• The 2210 Series is UL listed for self-closing doors
• Tested and certified under ANSI A156.4

Resources

• 2210 Series High Security Closers Cut Sheet
• LCN 2210 Series Installation Guide
• LCN 2210DPS Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN High Security Door Closer Series Product Guide
• LCN High Security Series Catalog
• Von Duprin Finishes Chart
