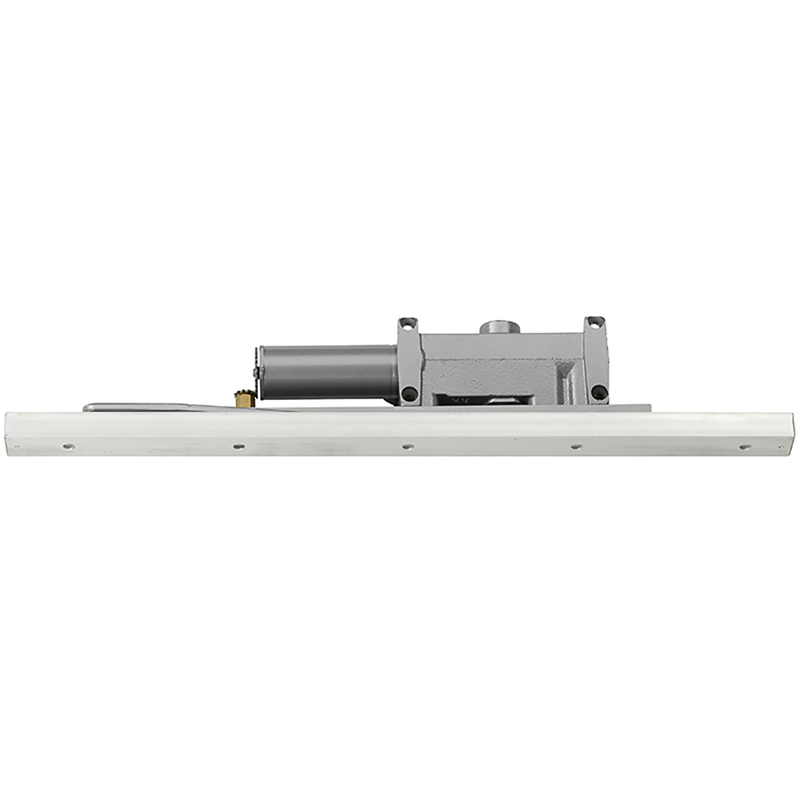

LCN 2214DPS-STD LH 689 High Security OH Closer AL

LCN 2214DPS-STD LH 689 High Security OH Closer AL is a robust solution designed to meet the demands of high-traffic environments. This concealed heavy-duty door closer features a standard arm and a security track, ensuring complete concealment while minimizing the risk of tampering and vandalism. Its forged steel single lever arm and heavy steel mounting plate make it ideal for correctional facilities, institutional settings, and other areas prone to wear and tear. Engineered for doors up to 4’6" for interiors and 3’6" for exteriors, this model includes an optional door position switch (DPS) for enhanced functionality. The closer is UL listed for self-closing doors and has been tested and certified under ANSI A156.4, ensuring compliance with industry standards. Available in a matte silver finish (689/US28), the LCN 2210 series can be customized with various powder coat options, including a primer for corrosive conditions. With a degree swing of 180 and a weight of 17 lbs., this Grade 1 closer is designed for commercial installations, providing reliability and security in any application. Whether for new constructions or replacements, the LCN 2214DPS-STD is a dependable choice for any professional.

High Security OH Closer AL

Standard Track Door Closer, Door Position Switch, Left Hand, Aluminum

The 2210 Series is a concealed heavy duty, high security track door closer featuring complete concealment wit special components to minimize tampering and vandalism. Forged steel single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional and other high traffic applications.

The 2210 Series is a heavy duty concealed closer made for high traffic applications.

The 2210 Series has a forged steel single lever arm and heavy steel mounting plates that are designed for correctional, vandal prone and institutional settings. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

• Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Concealed cylinder mounts in head frame, specify right or left swinging door
• Optional door position switch (DPS). Limited two year warranty.
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• The 2210 Series is UL listed for self-closing doors
• Tested and certified under ANSI A156.4
