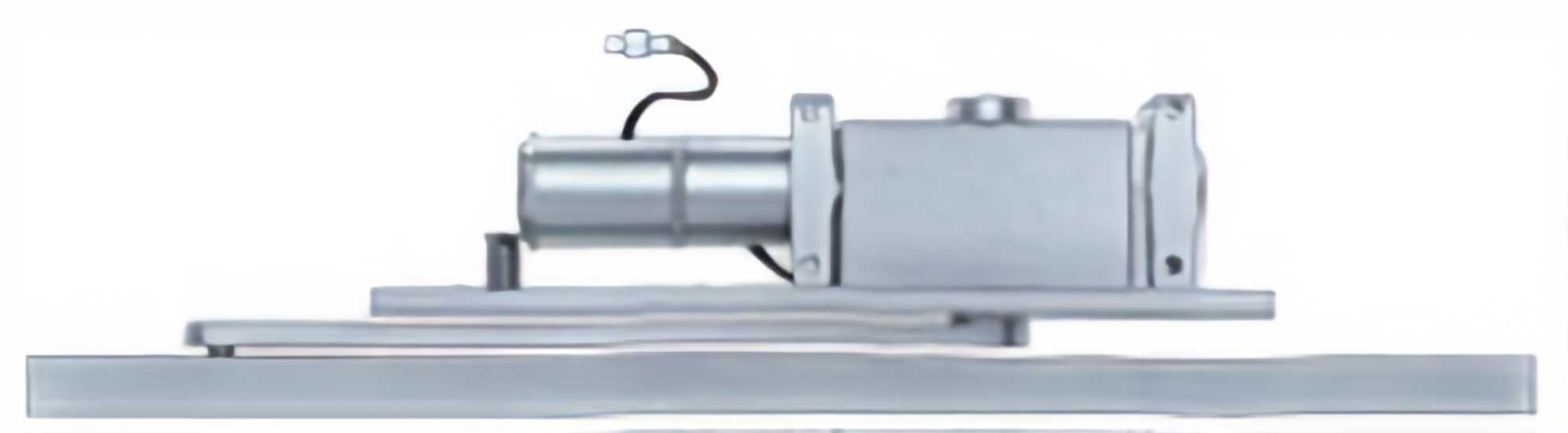

LCN Closers 2215-STD-AL-LH Overhead Concealed Heavy Duty Closer combines robust security with advanced functionality, making it an ideal choice for high-traffic and demanding environments. This left-handed model features a heavy-duty construction, crafted from cast iron and forged steel, ensuring unparalleled durability and resistance to tampering. Its concealed design not only enhances aesthetics but also protects essential components from vandalism. Meeting ANSI/BHMA A156.4 Grade 1 standards, this closer is UL and cUL listed, ensuring compliance with safety regulations. It is designed to accommodate adjustable spring power sizes 3-5, making it adaptable for various door applications, including interior, exterior, and vestibule settings. The all-weather fluid ensures optimal performance in diverse environmental conditions, while tamper-resistant regulating screws provide an added layer of security. With a 15-year limited warranty, this closer is backed by a commitment to quality and reliability. The LCN 2215-STD-AL-LH includes a security cover and comes with Torx machine screws for secure installation. Whether you’re outfitting correctional facilities, institutional buildings, or commercial spaces, this overhead concealed closer is engineered to deliver consistent performance while meeting the needs of modern security standards.

Overhead Concealed Heavy Duty Closer, High Security, Left Hand Standard Track Arm, Grade 1, Torx Machine Screws, 689/AL Aluminum Powder Coat

The heavy-duty 2210 series is a high-security track closer that features complete concealment and special components to resist tampering and vandalism. The 2210 series meets ANSI/BHMA A156.4 grade 1, meets the American Disabilities Act (ADA) reduced opening force requirements and is UL and cUL listed for self-closing doors, grade 1. It is backed by a 15-year limited warranty. Forged steel, a single-lever arm and a heavy steel mounting plate are designed for correctional, institutional and other high-traffic locations. The high-strength cast iron cylinder mounts in the head frame. Materials include a one-piece forged steel piston; double-heat-treated pinion; high-efficiency, full-complement low-friction bearings; tamper-resistant regulating screws; and all-weather fluid.

Features:

• Cast iron design
• Forged steel arm
• Double heat-treated steel pinion
• All-weather fluid
• Vandal resistant
• 15-year warranty
• Security cover
• Torx machine screw pack
• Adjustable spring power sizes 3-5

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Size: Sized 3-5 (refer to chart); interior, exterior and vestibule
• Cover: Two piece metal finish plates
• Fasteners: Torx machine screws (TORX)
• Mounting: Concealed, single acting cylinder in head frame, concealed, arm and track in top rail of door

Optional Arms:

• 2210-3077T/2210DPS-3077T: Standard Security Arm (STDTRKSECARM)
• Handed
• Solid forged steel and large cross section for potentially abusive installations
• Special threaded attachment of track roller for extra security
• Double slab arm/pinion attachment for maximum strength
• Can only be used with high security track roller, 2210-3034 or 2210DPS-3034
• Roller is included with arm when either the 2210-3077T or 2210DPS-3077T are ordered separately

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass

Resources

• Cut Sheet
