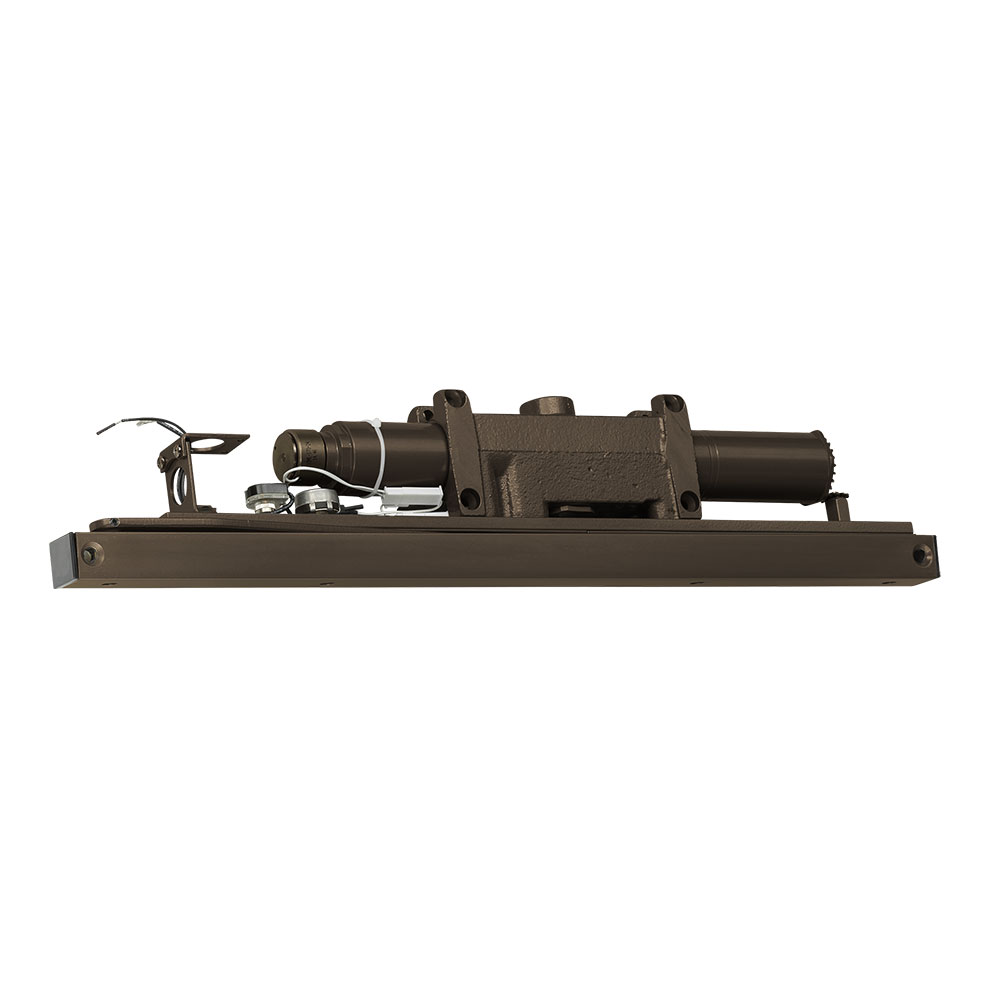

LCN 2314ME-STD 24V LH 695 Sentronic DKBRZ Holder/Closer

LCN 2314ME-STD 24V LH 695 Sentronic Holder/Closer DKBRZ combines reliability and performance in a Grade 1 standard single lever overhead concealed closer. Designed with an electrohydraulic slide track mounting system, this closer offers an impressive 160-degree swing and adjustable electric hold-open capabilities, ensuring optimal functionality for fire and smoke barrier doors. This heavy-duty mechanism holds doors open until a current interruption occurs, allowing for safe and easy passage while meeting vital life safety requirements. The LCN 2314ME features an adjustable backcheck and is a Size 4 closer, making it suitable for interior doors up to 4’0". Its left-handed design is complemented by a dark bronze painted finish, adding an attractive touch to any commercial setting. The built-in "On/Off" switch provides user-friendly control over the hold-open function, while compatibility with fire alarm systems ensures compliance with safety standards. Designed for commercial use, the closer is shipped with all necessary installation accessories, including a two-piece metal finish plate and a wood and machine screw pack. With a limited 2-year warranty, the LCN 2314ME is an excellent choice for those looking to enhance door security and accessibility in high-traffic areas.

Sentronic Holder/Closer DKBRZ

Grade 1 Standard Single Lever Overhead Concealed Closer, Electrohydraulic Slide Track In Header Mounting, Slide Track Arm Standard with 160 Deg. Swing, Adjustable Electric Hold Open, 24V, Adjustable Backcheck, Size 4, Dark Bronze Painted Finish, Left Hand

The 2310ME SENTRONIC is a Concealed Heavy Duty, Electrically Controlled Closer/Holder Designed to Provide Infinitely Adjustable Hold-Open for Fire and Smoke Barrier Doors. Door is Held Open Until Current Interruption Releases Mechanism and the Door Closes. Single Lever (Track) Arm Closer is Specifically Designed for Interior Doors. Choice of Finishes, Cylinder Functions, and Installation Accessories Meet Virtually All Life Safety Requirements.

The 2310ME Series is a concealed heavy duty, electrically controlled closer/holder.

The LCN 2310MME Series is designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.

• Standard 2310ME series closer shipped with either 24V or 120V cylinder (please specify), two piece metal finish plate, standard arm, track, and wood and machine screw pack.
• Sized cylinders for interior doors to 4’0”.
• Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted.
• Handed for right or left swinging door.
• Built-in “On/Off” switch controls hold-open function.
• Interfaces with fire alarm systems. Consult factory.
• Standard or optional custom powder coated finish.
• Optional plated finish on arm, fasteners and finish plate.
