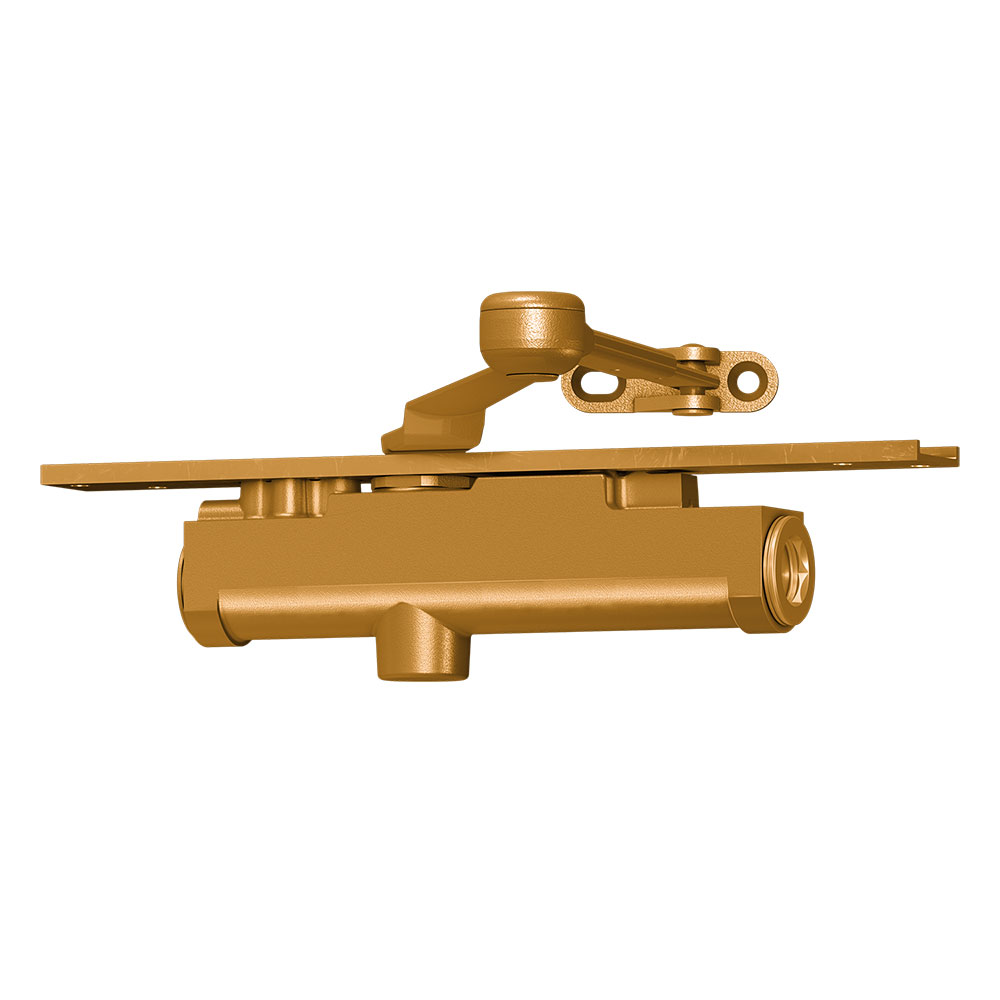

LCN 3033-H RH 691 Concealed Closer LTBRZ is a premium hold open arm door closer designed for right-handed installation on 1-3/4 inch interior doors. This model from the renowned 3030 Series features a double lever arm that enhances door control, making it an ideal choice for both commercial and residential applications. With a sleek light bronze finish, this concealed closer not only meets aesthetic demands but also adheres to stringent ADA requirements, ensuring accessibility without compromising style. The closer is UL and cUL listed, confirming its reliability for self-closing operations. It supports a 140-degree hold open and swing capability, providing ease of access and functionality. Installation is straightforward, with standard shipping including a regular arm and a complete screw pack for wood and machine applications. The closer is designed for doors up to 4 feet wide and is available in custom powder coat finishes to suit any architectural need. For environments prone to corrosion, an optional SRI primer is available. With a robust Grade 1 rating and a generous 15-year limited warranty, the LCN 3033-H RH 691 is built to last, delivering durability and performance in high-traffic areas.
Concealed Closer LTBRZ
Hold Open Arm Door Closer, Right Hand, Light Bronze
The 3030 Series is a concealed door closer designed to mount in a 1-3/4 In. interior door. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.
The 3030 Series is a concealed closer that is able to mount to a 1 3/4" interior door.
The 3030 Series has a double lever arm that provides superior door control. It is UL and cUL listed with regular arm for self-closing doors.
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Hold Open: 140 Deg.
Degree Swing: 140 Deg.
Finish: 691/US10
Finish Family: Matte Bronze
Grade: Grade 1
Handing: Right-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Door
Pack Qty: 1
Series: 3030 Series Concealed Closers
Ship Weight: 6 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Door
Unit of Measure: Each
