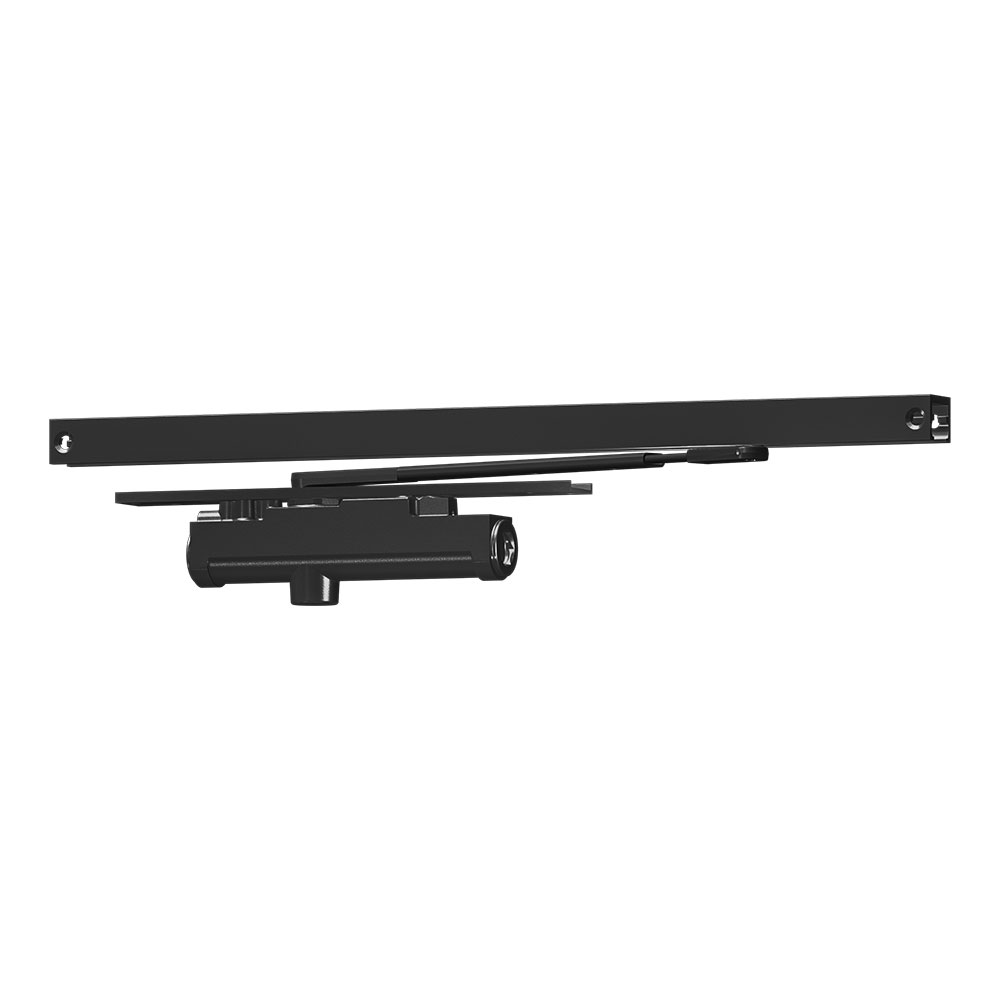

LCN 3131-STD RH 693 Concealed Track Closer GLBLK is a Grade 1 standard single lever concealed door closer designed to provide reliable and efficient door control. With a hydraulic track arm mount, this model is ideal for installation in 1-3/4" interior doors, making it perfect for commercial applications. The slide track arm offers a smooth operation with a generous 140-degree swing, ensuring accessibility and ease of use. This model features an adjustable backcheck, allowing for customizable door closing speeds and enhanced safety. The black painted finish not only adds a sleek aesthetic but also complements various architectural styles, meeting virtually all design requirements. Handed for right-hand doors, the LCN 3131-STD is equipped with a standard arm and track, and comes with a comprehensive wood and machine screw pack for straightforward installation. Additionally, it meets ADA compliance and is suitable for doors up to 3’2" in width. The closer is backed by a 15-year limited warranty, ensuring long-lasting performance. Designed for durability, it can withstand corrosive conditions with optional SRI primer. With its reliable performance and versatile options, the LCN 3131-STD is an excellent choice for professionals seeking quality and functionality in door hardware.
Concealed Track Closer GLBLK
Grade 1 Standard Single Lever Concealed in Door Closer, Hydraulic Track Arm Mount In Door Mounting, Slide Track Arm Standard with 140 Deg. Swing, Adjustable Backcheck, Size 1, Black Painted Finish, Right hand
The Concealed 3030 Series is Designed to Mount in a 1-3/4" Interior Door. The Double Lever Arm Provides Superior Door Control and the Choice of Finishes and Arm Functions Meet Virtually All Architectural Requirements.
The 3130 Series is a concealed closer designed to mount in a 1 3/4" interior door.
The single lever arm and roller assembly of the LCN 3130 Series provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
Manufacturer surcharge: $ 0.0
Ansi: ANSI A156.4
Arm Type: Slide Track Arm, Standard
Back Check: Adjustable
Closer Size: 1
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: No
Degree Swing: 140 Deg.
Delay: No
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Door
Mounting Style: Track Arm
Pack Qty: 1
Screw Type: Self-Tapping
Series: 3130 Series Concealed Closers
Ship Weight: 8 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Door
Ul Listing: UL10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
