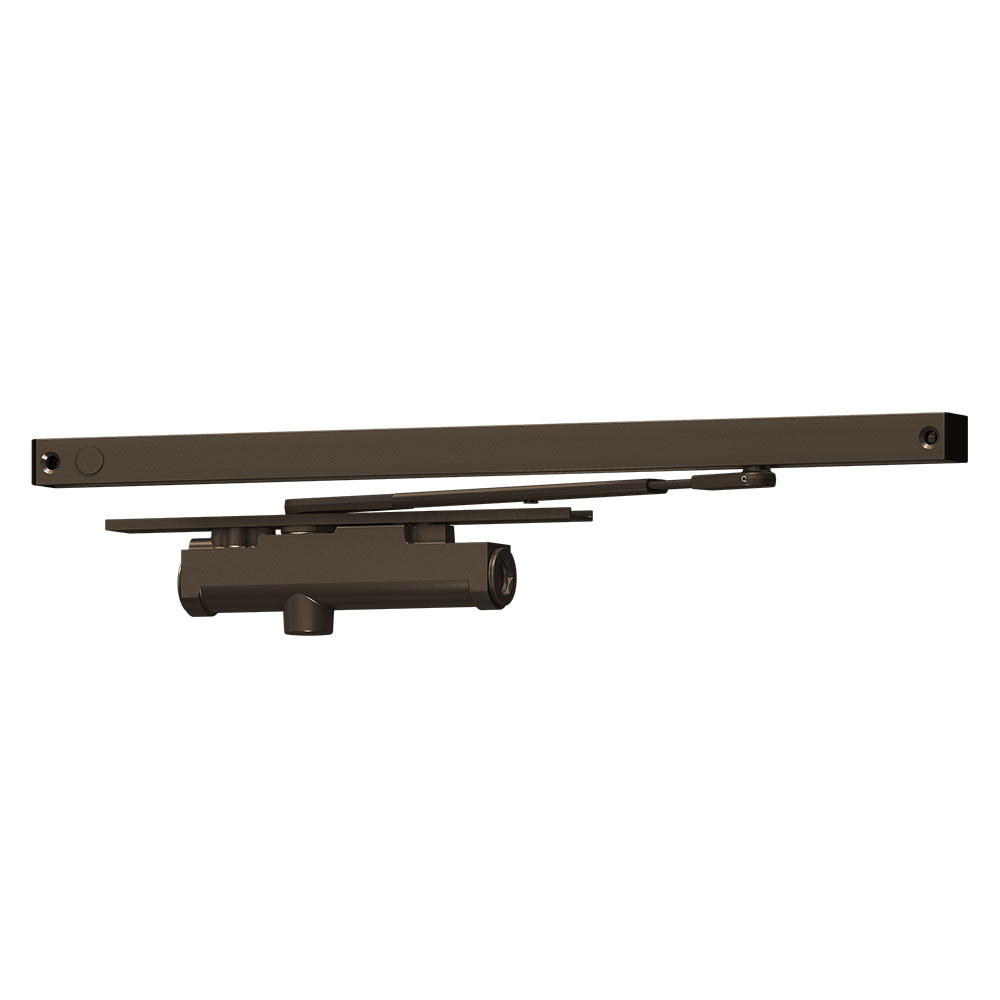

LCN 3133SE-STD 24V RH 695 Sentronic DKBRZ Holder/Closer

LCN 3133SE-STD 24V RH 695 Sentronic Holder/Closer DKBRZ is a sophisticated standard track closer and holder designed to enhance the safety and functionality of fire and smoke barrier doors. This concealed in-door unit features a right-handed configuration and is finished in a sleek dark bronze, making it an excellent choice for commercial spaces. The 3133SE operates on a 24V system and is built to provide a single point hold-open mechanism. The door remains open until a current interruption occurs, which releases the holding mechanism, allowing the door to close effectively. Its single lever track arm is specifically designed for interior use, accommodating doors up to 4’0" in size. This model not only functions as a reliable door closer when hold-open is disengaged but also integrates seamlessly with fire alarm systems, ensuring compliance with safety regulations. Additionally, it features a 110-degree hold open and swing capability, making it versatile for various applications. With a grade 1 rating and a limited two-year warranty, the LCN 3133SE is a durable and dependable solution for commercial installations, providing both functionality and peace of mind.

Sentronic Holder/Closer DKBRZ

Standard Track Closer/Holder, 24V, Right Hand, Dark Bronze

The 3130SE is a concealed in the door closer/holder designed to provide single point hold open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and closes the door. The single lever track arm is designed for interior doors.

A concealed in the door, closer/holder designed to provide single point hold-open for fire and smoke barrier doors.

Door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.

• Standard 3130SE series closer shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack.
• Sized cylinders for interior doors to 4’0”.
• Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted.
• Handed for right or left swinging door.
• Interfaces with fire alarm systems. Consult factory.
• Standard or optional custom powder coated finish.
• Optional plated finish on arm and fasteners.

Resources

• 3130SE Series Fire/Life Safety Closers/Holders Cut Sheet
• LCN 3130SE Installation Guide
• LCN 3130SEL Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Low Energy Automatic Operators Brochure
• Von Duprin Finishes Chart
