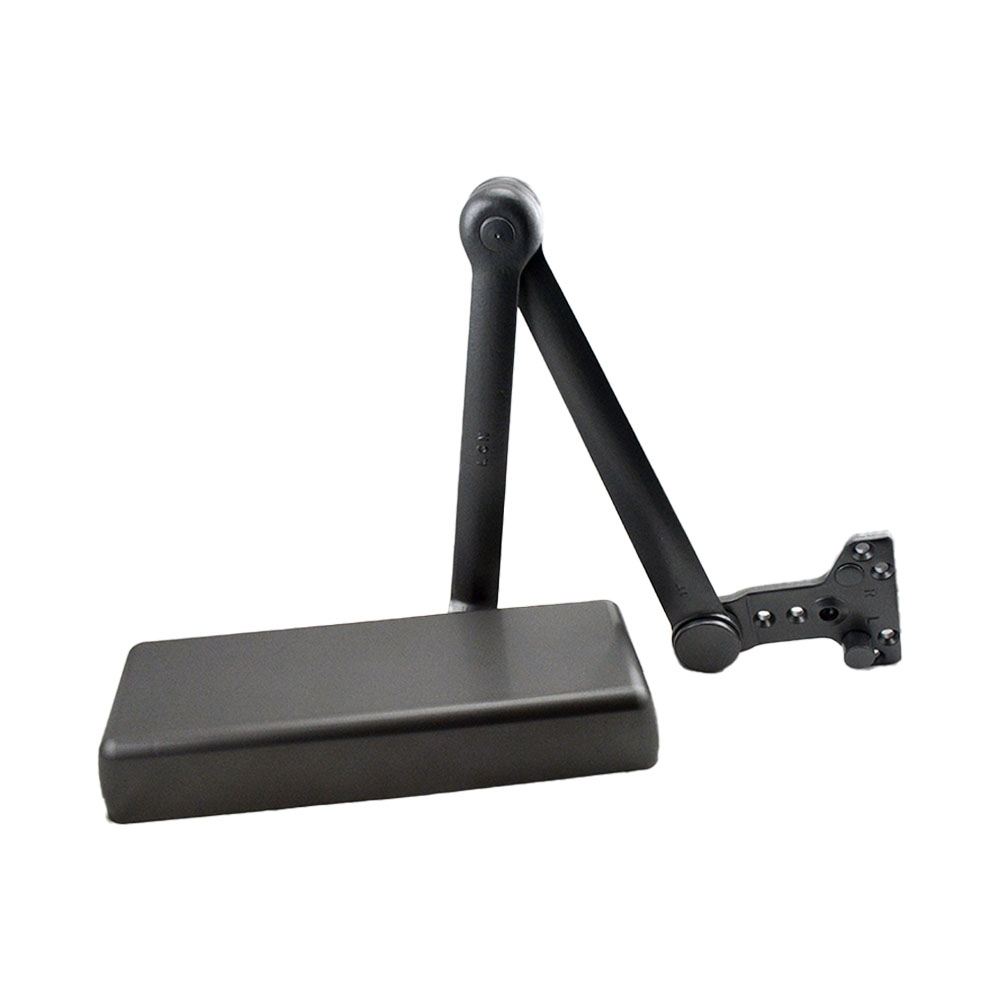

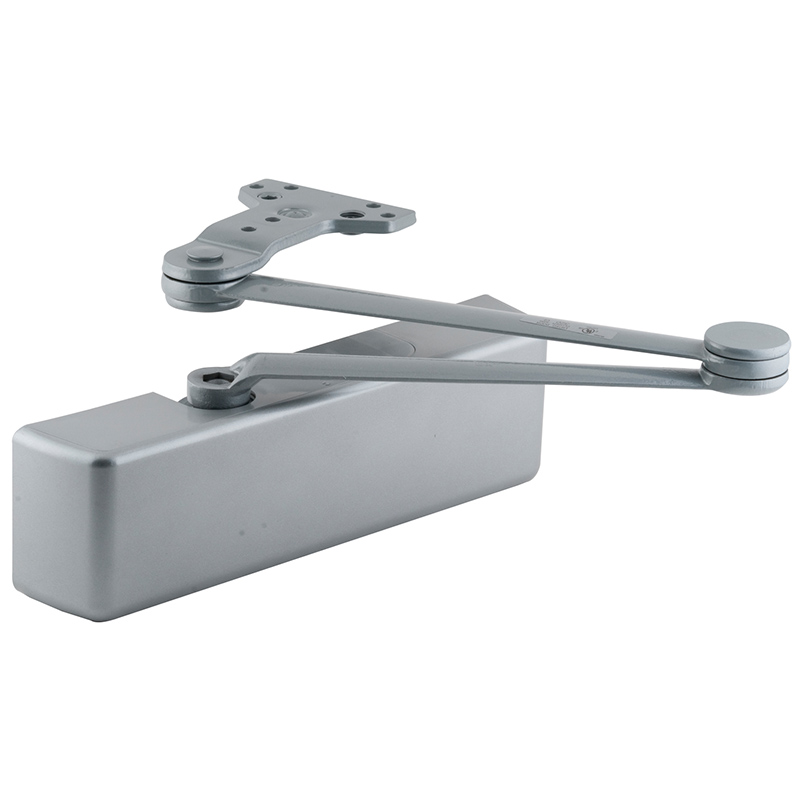

LCN 4040XPCUSHAL Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Cush Door Closer with TBSRT Thru Bolts offers unparalleled performance for high-traffic environments such as schools, hospitals, and government buildings. Designed for rugged applications, this door closer features an adjustable spring size from 1 to 6, allowing for precise control over the closing force, which is essential for ensuring safety and efficiency in busy settings. Constructed with a solid forged steel main arm and forearm, the LCN 4040XPCUSHAL is built to last, providing reliable operation over its impressive 15 to 20-year lifespan. The innovative LCN Green Dial simplifies spring power adjustments, eliminating guesswork for installers and maintenance personnel. With a surface-mounted design and dimensions of 12-1/4" x 2-1/4" x 3-1/2", this door closer is suitable for both interior and exterior doors, accommodating door widths of up to 5 feet and 4 feet, respectively. The aluminum finish (689) not only enhances the closer's aesthetic appeal but also ensures durability against wear and tear. Backed by a limited 30-year warranty, the LCN 4040XPCUSHAL is a trusted choice for those demanding high performance and security in their door hardware solutions.
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
Attributes
Alternate Codes: 111526, 4040XP-CUSH-AL, 4040XPCUSHAL, 4041CUSHAL, 813232, LCN4040XPCUSHAL, LCN4041CUSHAL
Arm Function: CUSH
Arm Type: Parallel Arm Dead Stop
Baa Qualified: Yes
Back Check: Adjustable
Body Type: Cast Iron
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Clazz: LC
Closer Size: Non-Sized
Closer Type: Mechanical
Cold Weather Fluid: Yes
Color: Aluminum
Country of Origin: Usa
Cover: Plastic Cover
Cylinder Type: Standard
Degree Swing: 110¼
Delay: No
Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Satin Aluminum
Finish Description: Aluminum Painted
Fire Rated: 3 Hours {A}
Function: Cush
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Item Class Description: Parallel Arm Super Smoothee Heavy Duty Adjustable Surface Mounted Cush Door Closer with Thru Bolts
Item Type Keyword: Closer
Limited Warranty: Limited 1 Year Warranty
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
Maximum Opening: 110°
Mounting: Hinge Side, Top Jamb
Mounting Group: Hydraulic
Mounting Hole Pattern: 1" Diagonal Mounting with 2-1/4" Spacing
Mounting Location: Push Side
Mounting Style: Parallel Arm
No Of Inners: 1
Number Of Inners: 1
Options: All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws
Order_ Qty: 1
PO date: 2024-09-22
Product Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Restrictions: None
Screw Type: Self Tapping
Series: 4040XP Series
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Spring Tension: Adjustable 1 - 6
Stop: Dead Stop
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Supplier: LCN
Through Bolts: No
Type: Surface
Ul Listing Type: UL 10C Rated
Upc: 043156589302
