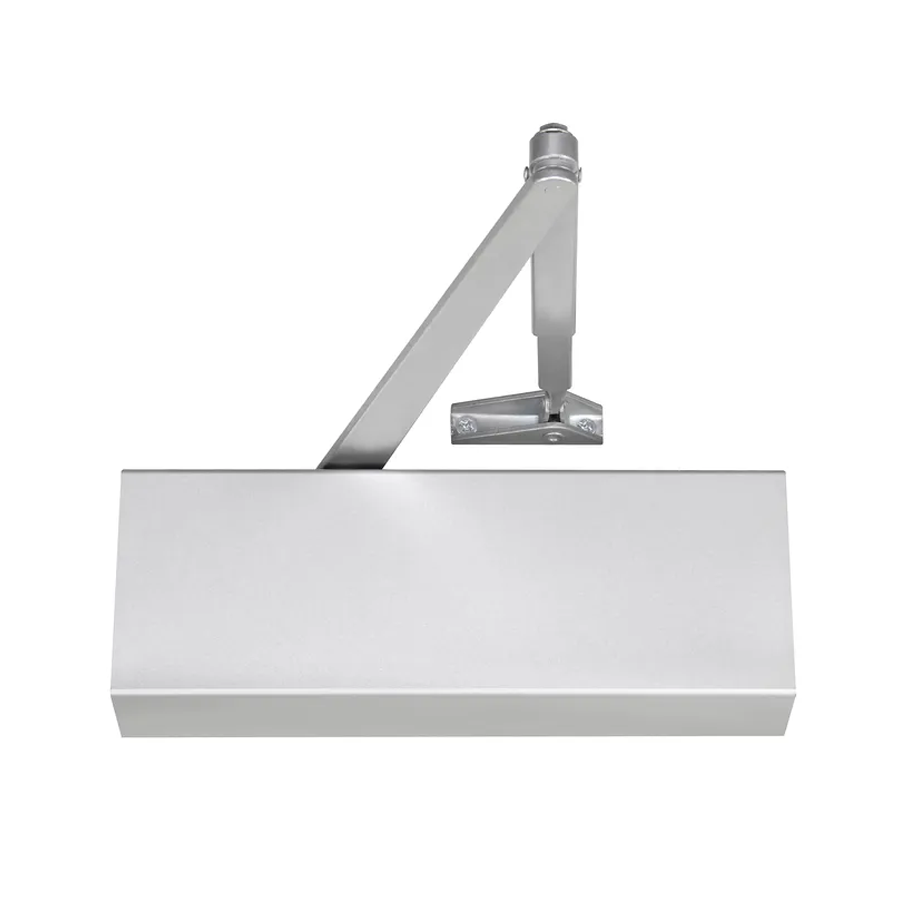

Norton 9500-SN-689 ADA Adjustable Surface Door Closer, Grade 1, Tri-Packed Arm, Aluminum Powder Coat

Norton 9500-SN-689 ADA Adjustable Surface Door Closer combines durability and flexibility to meet the demands of high-use facilities. This ANSI/BHMA grade 1 door closer is designed for both interior and exterior doors, ensuring ADA compliance while offering a sleek, modern appearance. Constructed from robust cast iron, the 9500 series features pressure relief valves for smooth opening and closing, effectively protecting the door and frame from damage. This versatile closer includes a tri-packed arm that supports regular, parallel, and top jamb mounting, allowing for easy installation across various applications. With a maximum door weight capacity of 250 lbs and a traffic rating for high usage, it exceeds 25 million cycles, ensuring long-lasting reliability. The non-handed design and low profile projection enable doors to swing 180°, making it suitable for a wide range of environments. The Norton 9500-SN-689 also features an adjustable spring size from 1-6, making it adaptable to specific needs. Its molded ABS plastic cover adds to its aesthetic appeal, while staked valves prevent accidental adjustments. Backed by a 30-year limited warranty and extensive testing, this door closer is an excellent choice for professionals seeking dependable performance without compromising style.

ADA Adjustable Surface Door Closer, 1-6, Full Cover, Tri-Packed Arm (Regular, Parallel, Top Jamb Mounting), Grade 1, UL, 689/SP28 Aluminum Powder Coat

The 9500 series door closer offers the durability, flexibility and strength required to meet the many needs of high-use facilities. For interior or exterior doors, this ANSI/BHMA grade 1 door closer features a clean, modern aesthetic and durable cast iron body that can be used in a variety of environments requiring ADA compliance.

Features:

• Cast iron closer
• Constructed with robust materials and internal components
• Pressure relief valves for both opening and closing
• Protects the door and frame from damage and reduces maintenance costs
• Exceeds 25 million cycles
• Stringent testing supports a long-life of reliability
• 1-1/2" diameter piston
• One package covers regular, top jamb, and parallel arm mounting
• Closer mounting plate included for easy installation
• Low profile projection provides clean aesthetic
• Adjustable spring sizes 1-6
• Arm configurations meet broad range of applications
• Tri-packed
• Staking limits ability to accidentally back out the valve while adjusting closer
• 2-1/4" projection
• Non-handed
• Interior or exterior doors
• Molded ABS plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Hold open and heavy-duty arms available
• Slide tracks - push or pull side mounting
• Staked valves

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: High traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 9500: Regular Arm
• Pull-side application
• Most common mounting, providing the greatest closing efficiency
• 9500: Parallel Arm
• Push-side application
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 9500ST: Pull side slide track
• Provides a clean aesthetic look with maximum 100° door swing and a minimum door width of 28" (71cm)
• Hold open can be set for 85°, 90°, 95°, or 100°
• PS9500ST: Push side slide track
• Clean aesthetic look for doors opening a maximum of 100˚ and a minimum door width of 32" (81cm)
• Backcheck option recommended
• 9500: Top Jamb
• Push-side application; closer mounted on the frame
• Accommodates reveals from 3-3/8" (86mm) up to 7-1/4" (184mm), depending on door and frame conditions

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
