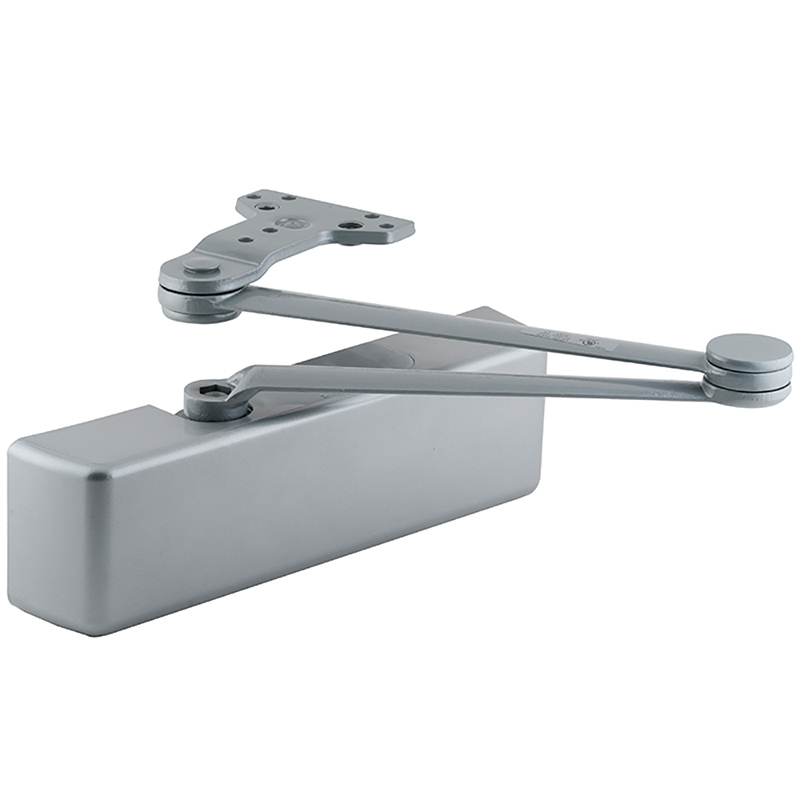

LCN 4040XP-CUSH RH 652 Heavy Duty Surface Closer US26D is engineered to excel in high-traffic environments, making it a top choice for institutional and commercial applications. This Grade 1 surface door closer features a robust cush arm design and a right-handed configuration, ensuring reliable performance with a 110-degree swing. The LCN 4040XP sets a new benchmark for durability and efficiency, boasting a 44% increased bearing load capacity and the strongest pinion available, with a 3/4" journal diameter. Its innovative V-shield™ seal extends the lifespan of the closer by 20%, while the adjustable size 1-6 accommodates various door sizes, allowing versatility for interior doors up to 5’0" and exterior doors to 4’0". Constructed with a metal cover and a satin chromium plated finish, the closer is built to withstand the rigors of daily use. With features like all-weather fluid, adjustable back check, and compliance with ADA standards, the LCN 4040XP is not only functional but also ensures accessibility. Installation is expedited with LCN® Fast™ Power Adjust technology, and the closer is UL and cUL listed for safety. Trust in LCN’s 30-year limited warranty for peace of mind, making this closer a smart investment for any commercial setting.
HeavyDuty Surface Closer US26D
Grade 1 Surface Door Closer, Cush Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Metal Cover, Satin Chromium Plated Finish, Right-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm Dead Stop
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Brass or Bronze
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Metal
Degree Swing: 110 Deg.
Delay: No
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13.15 lbs.
Stop: Dead Stop
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
