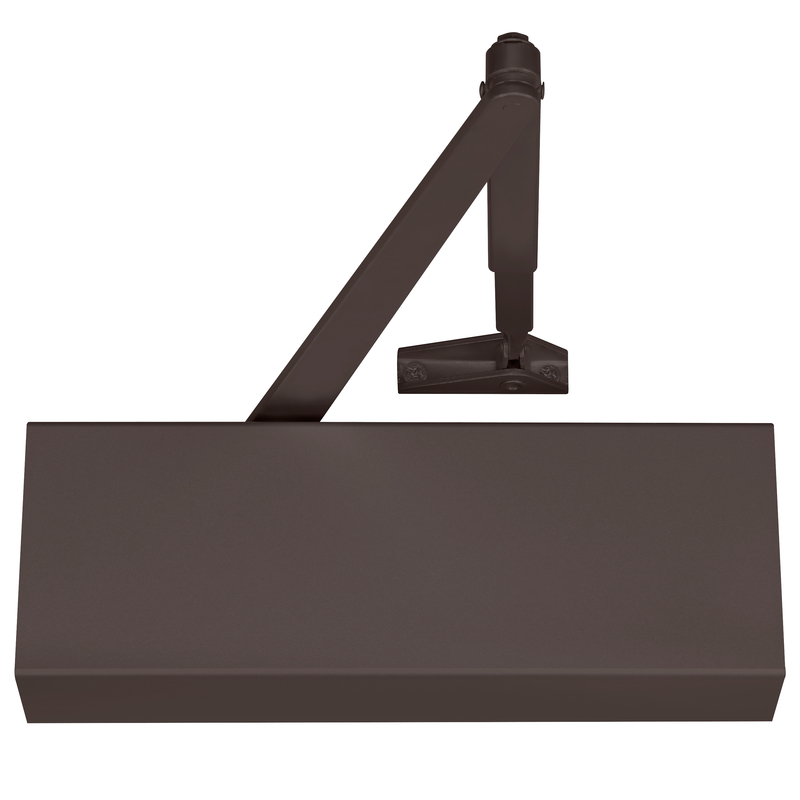

Norton 9500 690 Grade 1 Cast Iron Door Closer

Norton 9500 690 Grade 1 Cast Iron Closer delivers exceptional durability and flexibility, making it the perfect choice for high-traffic openings in various institutional environments. This tri-packed door closer is adjustable from sizes 1 to 6, and its dark bronze painted finish complements a clean, modern aesthetic. Built with a robust cast iron body, the 9500 Series meets ANSI/BHMA Grade 1 standards, ensuring reliable performance and ADA compliance for both interior and exterior doors. Featuring a rack and pinion design, this closer exceeds 16 million cycles, demonstrating its resilience under heavy use. The adjustable backcheck intensity valve provides added safety by relieving internal pressure when adjustments are made. Installation is straightforward with a tri-mount style, and the closer can be surface-mounted on either the push or pull side of the door. With concealed valves for unauthorized adjustment and a hydraulic fluid that requires no seasonal readjustment, the Norton 9500 is designed for hassle-free maintenance. This closer also offers an optional delayed action valve and various arm types, including regular and parallel rigid options, to suit your specific needs. Backed by a 25-year limited warranty, the Norton 9500 is a dependable choice for commercial applications.

Grade 1 Cast Iron Closer

Tri-Packed Door Closer, Adjustable Size 1-6, Dark Bronze Painted

Ideal for high use openings, the Norton 9500 Series door closer offers the durability, flexibility and strength required to meet the needs of your facility. For interior or exterior doors, this ANSI/BHMA Grade 1 closer features a clean, modern cover aesthetic and durable cast iron body that can be used in a variety of institutional environments requiring ADA compliance. The 9500 Series Door Closers exceed 16 million cycles, have a rack and pinion design with cast iron body and are non-handed.

The Norton 9500 Series Cast Iron door closer offers the durability, flexibility and strength required to meet the needs of your facility.

For interior or exterior doors, the 9500 Series ANSI/BHMA Grade 1 closer features a clean, modern cover aesthetic and durable cast iron body that can be used in a variety of institutional and educational environments requiring ADA compliance.

• Door closers shall be of rack and pinion construction with a cold headed heat-treated steel spindle and a forged steel piston precision machined and heat treated.
• The case shall be of cast iron. Closers shall have a heavy-duty, forged steel main arm.
• Optional arms shall include parallel rigid, parallel rigid friction hold open, regular rigid, CloserPlus®, CloserPlus® hold open, Unitrol®, Unitrol® hold open and track assemblies.
• The following size options shall be available: Fully adjustable spring power to accommodate sizes 1 through 6.
• All sizes shall be accommodated in one closer body. Closing shall be controlled by two valves — one to control closing speed and one to control latching speed.
• Valves shall be concealed against unauthorized adjustment and be non-critical with “O” ring seals.
• Delayed action shall be available and shall be accomplished with a separate valve.
• Closers shall be available with an adjustable backcheck intensity valve with a safety feature that automatically relieves internal pressure when backcheck has reached the desired adjustment level.
• Valves shall be accessible without removing the closer from the door.
• Closers shall be available with a backcheck intensity valve. Backcheck begins at approximately 70 degrees of door opening for all applications.
• This valve shall be operative on regular, top jamb, parallel arm, and track type mountings.
• Closers shall be surface applied with rectangular cover.
• Closers shall not project over 2-1/4", and shall be capable of mounting on 1-3/4" top rail or inverted mounting on 1-3/4" top jamb.
• Full cover with security fasteners shall be available.
• Closers without hold open shall be regularly furnished with power adjustment arm bracket capable of providing a 15% power adjustment.
• A mounting bracket to attach the closer shall be regularly furnished.
• Hydraulic fluid shall be of a type requiring no seasonal valve readjustment due to extreme temperature variations.
• Closers mounted regular arm, top jamb and parallel arm shall allow for full 180° door opening.
• Closers with non-hold open arms shall be listed by Underwriters Laboratories.
• All closers with metal covers shall be available in architectural finishes to match corresponding door hardware.
