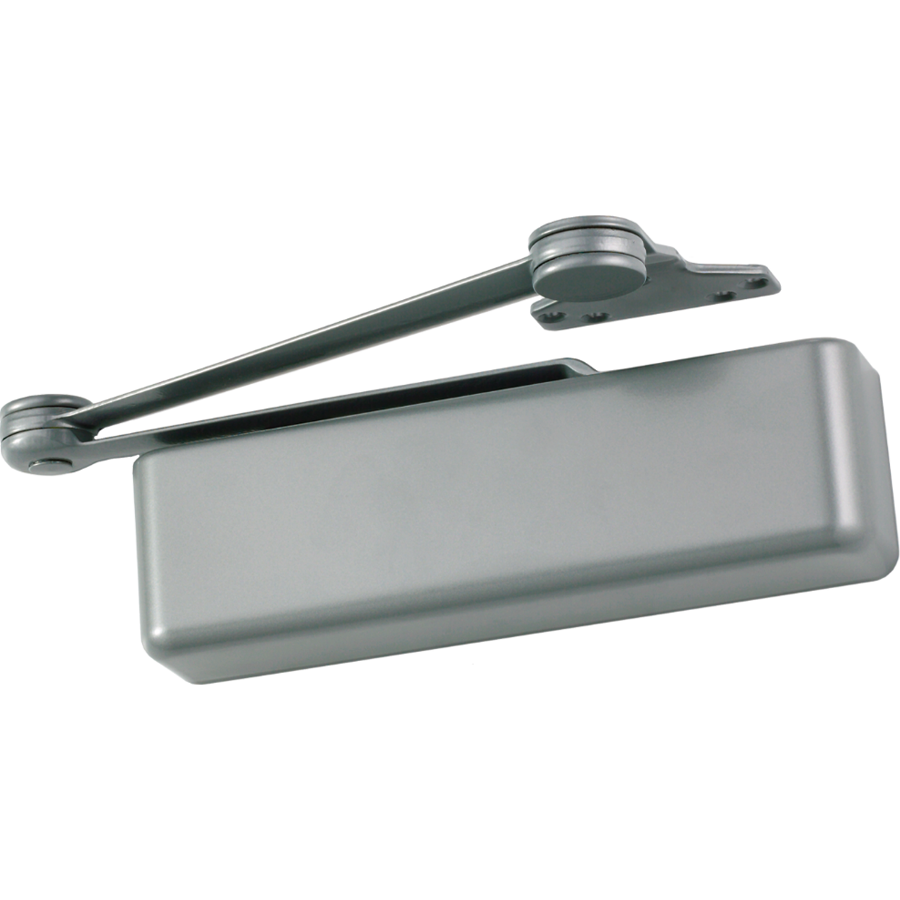

LCN 4040XP-EDA-62G-AL XP Heavy Duty Closer, Cast Iron Surface Mount, Adjustable Spring Size 1-6LCN Closers 4040XP-EDA-62G-AL XP Heavy Duty Closer is engineered for the most demanding environments where durability and reliability are non-negotiable. This non-handed, surface-mounted closer is crafted from high-strength cast iron, ensuring rugged performance and longevity. The EDA Extra Duty Arm features a thick hub shoe, making it ideal for high-use applications where standard closers might falter. With adjustable spring sizes from 1 to 6, the 4040XP accommodates a range of door sizes, meeting ANSI/BHMA A156.4 grade 1 standards and ADA reduced opening force requirements. Its innovative design includes patent-pending positive stop and regulation valve indicators, providing visual references for easy adjustments. The peel-n-stick templates simplify installation, allowing professionals to achieve quick and accurate results. This model is designed for versatility, supporting various mounting options including hinge pull side and top jamb configurations. It is UL listed for self-closing doors and offers all-weather Liquid X fluid for consistent performance in any temperature. The powder-coated aluminum finish provides added durability over traditional sprays, ensuring the closer looks great for years to come. With a 30-year limited warranty, LCN Closers 4040XP-EDA-62G-AL is a reliable choice for any building professional seeking quality and performance.
XP Heavy Duty Closer, Cast Iron Surface Mount, EDA Extra Duty Arm with Thick Hub Shoe, Adjustable Spring Size 1-6, Grade 1, TB/SRT Screw Pack, Plastic Cover, 689/AL Aluminum Powder Coat
Notice: The info below is not item specific.
The 4040XP series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and-abuse applications as well as for easy installation and maintenance. With new enhancements made to the 4040XP, installers and service technicians can have confidence in how to install and adjust the door closer properly—ultimately, maximizing the life of the product. It’s ANSI/BHMA A156.4 grade 1 rated and meets ADA reduced opening force requirements. It’s cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation, and the LCN Green Dial takes the guesswork out of spring power adjustments.
Features:
- Tight tolerances in manufacturing for accuracy and precision
- Peel-n-stick template for quick and accurate installation
- LCN Green Dial to take the guesswork out of spring power adjustments
- Patent-pending positive stop to improve staking and prevent the screw from being backed out
- Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
- Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent
- Cast iron cylinder for rugged performance, longer life and maximum control
- Single-piece, heat-treated forged steel arms to withstand bending and breaking
- Heat-treated 1-1/2" diameter piston for extra hardiness and strength
- Double heat-treated steel pinion with 11/16" journal diameter for greater wear-resistance
- Full complement bearings with minimum 0.5" height that wear more evenly and are less susceptible to leakage
- All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
- Independent speed adjustments for greater door control
- Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
- Updated! Redesigned snap-fit cover with patent-pending retention fit
- Powder coat finish that lasts longer than spray lacquer
- 30-year warranty
- Universal non-handed design that enables it to fit more applications with a single product
- Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
- Adjustable spring sizes 1-6
Specifications:
- Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
- Body Construction:
- Patented positive stop
- Patented regulation valve indicators
- Independent speed adjustments
- QR code for instructions and support
- Cast iron body
- Full complement bearing
- 1-1⁄2" diameter piston
- Double heat treated pinion journal
- Fluid: All weather liquid X fluid
- Handing: Non-handed
- Templating: Peel-n-Stick templates - 2-1⁄4" x 5" mounting hole pattern
- Size: Adjustable spring size 1-6, includes LCN Green Dial
- Cover:
- Redesigned snap-fit plastic cover(PC) with improved retention fit, standard
- Metal cover (MC), optional
- Fasteners: Self reaming and tapping screws (SRT)
- Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)
Optional Arms:
- 4040XP-3077: Regular Arm (REGARM)
- Non-handed
- Mounts pull side or top jamb with shallow reveal P4041 closer includes PA shoe, 4040XP-62PA required for parallel arm mounting
- 4040XP-3077L: Long Arm (LONG)
- Non-handed
- Includes long rod and shoe, 4040XP-79LR for top jamb mount
- Optional
- 4040XP-3077ELR: Extra Long Arm (XLONG)
- Non-handed
- Includes extra long rod and shoe, 4040XP-79ELR for top jamb mount with deep reveal
- Optional
- 4040XP-3049: Hold Open Arm (H)
- Non-handed
- Mounts pull side or top jamb with shallow reveal, hold open adjustable shoe
- 4040XP closer includes 4040XP-62PA shoe required for parallel arm mounting
- Optional
- 4040XP-3049L: Hold Open Long Arm (HLONG)
- Non-handed
- Includes long head and tube, 4040XP-3048L for top jamb mount
- Optional
- 4040XP-3077EDA: Extra Duty Arm (EDA)
- Non-handed
- Features forged, solid steel main and forearm for potentially abusive installations
- Optional
- 4040XP-3049EDA: Hold Open Extra Duty Arm (HEDA)
- Handed
- Parallel arm features forged, solid steel main and forearm for potentially abusive installations
- Hold open function is adjusted at the shoe
- Optional
- 4040XP-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
- Non-handed
- Features forged, solid steel main and forearm for potentially abusive installations
- 62G shoe provides additional blade stop clearance
- Optional
- 4040XP-3049EDA/62G: Hold Open Extra Duty arm with 62G Thick Hub Shoe (HEDA62G)
- Handed
- Features forged, solid steel main and forearm for potentially abusive installations
- 62G shoe provides additional blade stop clearance; hold open function is adjusted at the shoe
- Optional
- 4040XP-3077CNS: Extra Duty Arm (EDA)
- Non-handed
- Features solid forged steel main arm and forearm with stop in soffit shoe.
- Optional
- 4040XP-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
- Non-handed
- Hold open function with templated stop/hold open points
- Handle controls hold open function
- Optional
- 4040XP-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
- Non-handed
- For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
- Optional
- 4040XP-3049SCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
- Non-handed
- For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
- Handle controls hold open function
- Optional
Finishes:
- 622 - Matte black
- 689 - Aluminum
- 690 - Statuary bronze
- 691 - Light bronze
- 693 - Gloss black
- 695 - Dark bronze
- 696 - Brass
Attributes
Alternate Codes: 137356, 4040XP-EDA-62G-AL, 4040XPEDA62GAL, 4040XPEDAAL62G, 4041EDAAL62G, LCN4040XPEDAAL62G, LCN4041EDAAL62G
Arm Function: Non-Hold Open
Arm Type: Extra Duty Arm w/62G Thick Hub Shoe
Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Closer Type: Surface
Cover: Plastic
Cylinder Type: Standard
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish Code: 689
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Grade: Grade 1
Manufacturer: LCN Closers
Material: Cast Iron, Hardened, Steel
Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)
Series: 4040XP
Spring Size: 1-6
