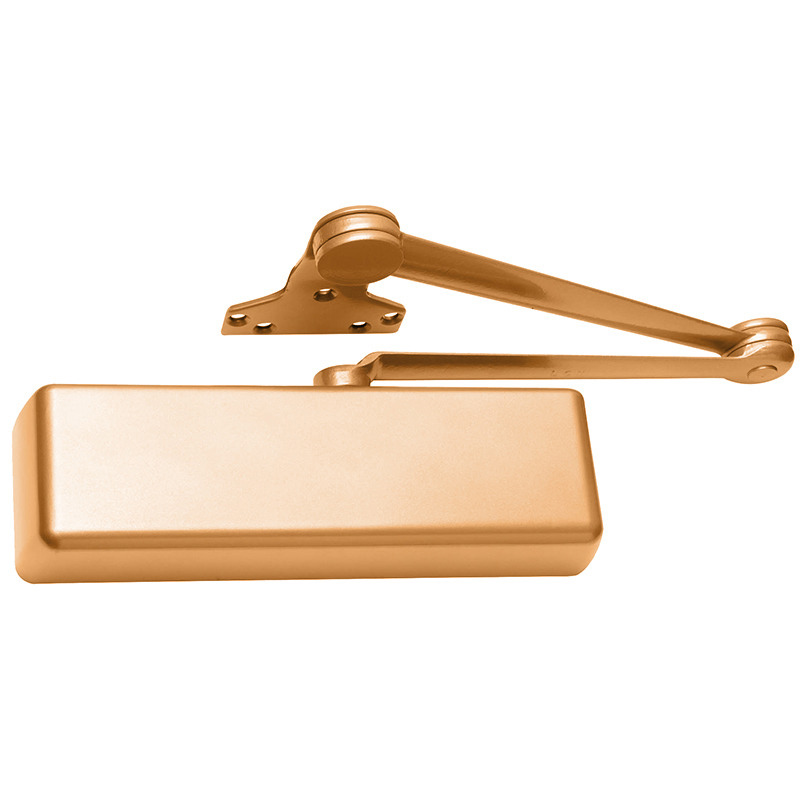

LCN 4040XP-EDA 691 Heavy-Duty Surface Closer LTBRZLCN 4040XP-EDA 691 Heavy Duty Surface Closer LTBRZ is engineered for the most demanding high-traffic environments, making it an ideal choice for institutional and commercial applications. This Grade 1 surface door closer features an extra duty arm with push side mounting and accommodates 180-degree swing, ensuring reliable performance and ease of use. Crafted for durability, the LCN 4040XP boasts a non-handed design, adjustable from size 1 to 6, with a robust construction that includes a 3/4" journal diameter pinion and the widest bearing ever at 5/8". With a new V-shield™ seal offering a 20% longer lifespan, this closer is built to withstand real-world conditions. The LCN 4040XP is UL and cUL listed, meeting ANSI Standard A156.4, grade one, and is suitable for both interior and exterior doors. Its installation is fast and accurate, and it can be mounted in multiple configurations, including hinge side, top jamb, or parallel arm. The light bronze painted finish adds a touch of elegance while maintaining functionality. With features like adjustable back check and all-weather fluid, the LCN 4040XP-EDA ensures longevity and reliability, backed by a 30-year limited warranty. Choose this closer for unmatched performance and peace of mind in any setting.
HeavyDuty Surface Closer LTBRZ
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Light Bronze Painted Finish,
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Swing: 180 Deg.
Delay: No
Finish: 691
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12.6 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
