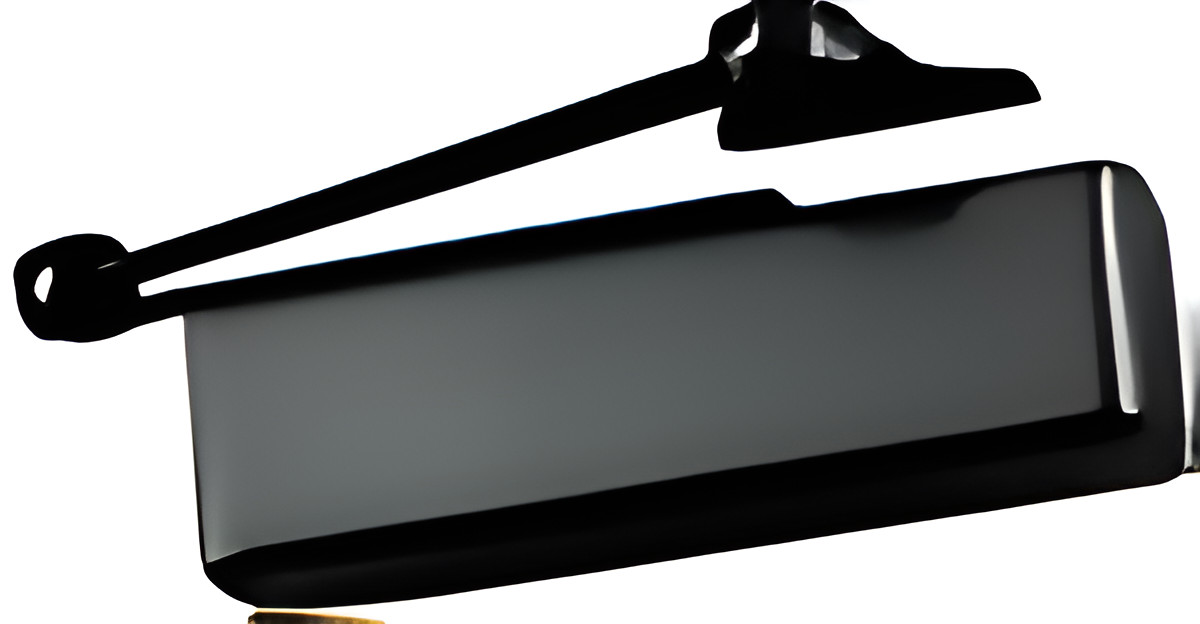

LCN 4040XP-EDA-GLBLK TBWMS Adjustable Surface Mount Door Closer, Grade 1, Gloss Black, Non-Handed

LCN Closers 4040XP-EDA-GLBLK TBWMS Surface Mount Door Closer offers unparalleled durability and reliability for demanding environments. Designed with a cast iron body and a patented green dial, this adjustable spring closer accommodates sizes 1-6, making it versatile for various applications. The extra duty arm is engineered to withstand potentially abusive conditions, ensuring long-lasting performance. This door closer features a non-handed design, allowing for flexible installation on hinge (pull side), top jamb (push side), or parallel arm (push side) configurations. It is equipped with all-weather Liquid X fluid, ensuring smooth operation in any climate. The 4040XP-EDA-GLBLK is UL certified, ADA compliant, and meets Grade 1 standards, making it a reliable choice for both commercial and residential spaces. Installation is simplified with peel-n-stick templates and self-reaming screws, while the glossy black powder coat finish enhances its aesthetic appeal. The closer also boasts a full complement bearing and a double heat-treated pinion journal, providing added strength. With its robust construction and advanced features, the LCN 4040XP-EDA-GLBLK TBWMS is the ideal choice for those seeking a high-performance door closer that meets the highest industry standards.

Surface Mount, Case Iron, Door Closer, Adjustable Spring Size 1-6, Patented Green Dial, Extra Duty Arm, Through Bolt Wood and Machine Screws, All Weather Liquid X Fluid, Non-Handed, ADA, UL, Grade 1, 693/GLBLK Gloss Black Powder Coat

This heavy-duty closer is LCN’s most durable surface-mounted closer, designed for the most demanding applications. And now, external enhancements make installation and maintenance faster and more accurate. While the internal design remains unchanged, providing the same quality, reliability and durability for which the 4040XP cast iron closer in well known.

Features:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA
• Fluid: All weather liquid X fluid
• Non-handed
• Templating: Peel-n-Stick templates - 2 1⁄4" x 5" mounting hole pattern
• Adjustable spring size 1-6, includes patented green dial
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)
• Fasteners: Self reaming and tapping screws (SRT)
• Body Construction:
• Cast iron body
• Full Complement Bearing
• 1 1⁄2" diameter piston
• Double heat treated pinion journal
• Cover:
• Plastic, standard
• Metal, optional

Accessories:

• Cast iron cylinder assembly, 4040XP-3071:
• Non-handed
• Heavy duty
• Cast iron cylinder assembly, 4041-3071 DEL:
• Used for delayed action closing
• Non-handed
• Heavy duty
• Plastic cover, 4040XP-72:
• Non-handed
• Includes 4040XP-54 snap-on cover clip
• Metal cover, 4040XP-72MC:
• Handed
• Required for plated finishes and custom powder coat finishes
• Regular arm, 4040XP-3077:
• Non-handed
• Mounts pull side or top jamb with shallow reveal P4041 closer includes PA Shoe, 4040XP-62PA required for parallel arm mounting
• Long arm, 4040XP-3077L:
• Non-handed
• Includes Long Rod and Shoe, 4040XP-79LR for top jamb mount
• Extra long arm, 4040XP-3077ELR:
• Non-handed
• Includes Extra Long Rod and Shoe, 4040XP-79ELR for top jamb mount with deep reveal
• Hold-open arm, 4040XP-3049:
• Non-handed
• Mounts pull side or top jamb with shallow reveal, hold open adjustable shoe
• 4040XP closer includes 4040XP-62PA shoe required for parallel arm mounting
• Long hold-open arm, 4040XP-3049L:
• Non-handed
• Includes Long Head and Tube, 4040XP-3048L for top jamb mount
• Extra duty arm, 4040XP-3077EDA:
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• Optional
• Hold-open extra duty arm, 4040XP-3049EDA:
• Handed
• Parallel arm features forged, solid steel main and forearm for potentially abusive installations
• Hold-open function is adjusted at the shoe
• Extra duty arm with 62G, 4040XP-3077EDA/62G:
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance
• Hold-open extra duty arm with 62G, 4040XP-3049EDA/62G:
• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance. Hold-open function is adjusted at the shoe
• Cush-N-Stop® Arm, 4040XP-3077CNS:
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe.
• Optional
• HCUSH arm, 4040XP-3049CNS:
• Non-handed
• Hold-open function with templated stop/hold-open points
• Handle controls hold-open function

Installation Accessories:

• Plate, 4040XP-18:
• Required for hinge side mount where top rail is less than 3 3/4˝ (95 mm)
• Requires minimum 2˝ (51 mm) minimum top rail
• Plate, 4040XP-18G:
• Locates top jamb mounted closer flush with top of head frame face in flush ceiling condition
• Requires 1 3/4˝ (44 mm) minimum head frame
• Plate, 4040XP-18TJ:
• Centers top jamb mounted closer vertically on head frame where face is less than 3 1/2˝ (89 mm). Plate requires 1 3/4˝ (44 mm) minimum head frame
• Plate, 4040XP-18PA:
• Required for parallel arm mounting where top rail is less than 5 1/2˝ (140 mm), measured from the stop
• Requires 2˝ (51 mm) minimum top rail
• PA shoe, 4040XP-62PA:
• Required for parallel arm mounting
• CUSH shoe support, 4040XP-30:
• Provides anchorage for fifth screw used with CUSH arms, where reveal is less than 3 1/16˝ (78 mm)
• Blade stop spacer, 4040XP-61:
• Required to lower parallel arm shoe to clear 1/2˝ (13 mm) blade stop
• PA flush panel adapter, 4040XP-419:
• Provides horizontal mounting surface for parallel arm shoe on single rabbeted or flush frame
• Auxiliary shoe, 4040XP-62A:
• Requires a top rail of 7˝ (178 mm)
• Shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop
• Snap-on cover clip, 4040XP-54:
• Used to secure 4040XP-72 plastic cover to cylinder body

Concealed Mounting: Hinge (Pull) Side Mounting

• Butt Hinges: Should not exceed 5˝ (127 mm) in width
• Auxiliary Stop: Recommended at hold-open point or where a door cannot swing beyond 120°
• Reveal: Should not exceed 3⁄4˝ (19 mm) for regular arm or hold-open arm
• Top rail: Less than 3 3⁄4˝ (95 mm) requires Plate, 4040XP-18. Plate requires 2˝ (51 mm) minimum
• Clearance: 2 3⁄8˝ (60 mm) behind door required for 90° installation
• Delayed action:
• Incorporates standard 4041 cylinder
• Delays closing from 120° to 70°
• Delay time adjustable up to approximately 1 minute
• Maximum opening:
• Templating allows up to 120°
• Hold-open points 90° up to 120° with hold-open arm.

Finishes:

• 689 Aluminum
• 690 Statuary bronze
• 691 Light bronze
• 693 Black
• 695 Dark bronze
• 696 Brass
